Интерактивен дисплей IIYAMA LH9875UHS-B1AG, 98" (248.92 cm) 4K/UHD IPS сензорен дисплей, DisplayPort, HDMI, DVI, VGA, USB, RS232, Wi-Fi, LAN

IIYAMA LH9875UHS-B1AG

98" 4K UHD Professional Digital Signage display featuring Android OS, iiSignage² and OPS PC slot

Choose non-stop high performance and uninterrupted reliability with the ideal all-in-one signage solution for mission critical environments. This 500cd/m² high brightness display featuring on-board Android 11 OS,iiSignage² (Content Management Software), Signal FailOver and EShare offers a straightforward user experience, making content creation, management, and sharing a breeze. The OPS PC Slot provides an embedded PC option for total flexibility, security and control. WiFi enabled, the LH9875UHS is ready for remote content delivery using your network or you can choose to utilise LAN control.

Its versatile orientation, sleek design, and 24/7 reliability ensures seamless integration into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH9875UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.

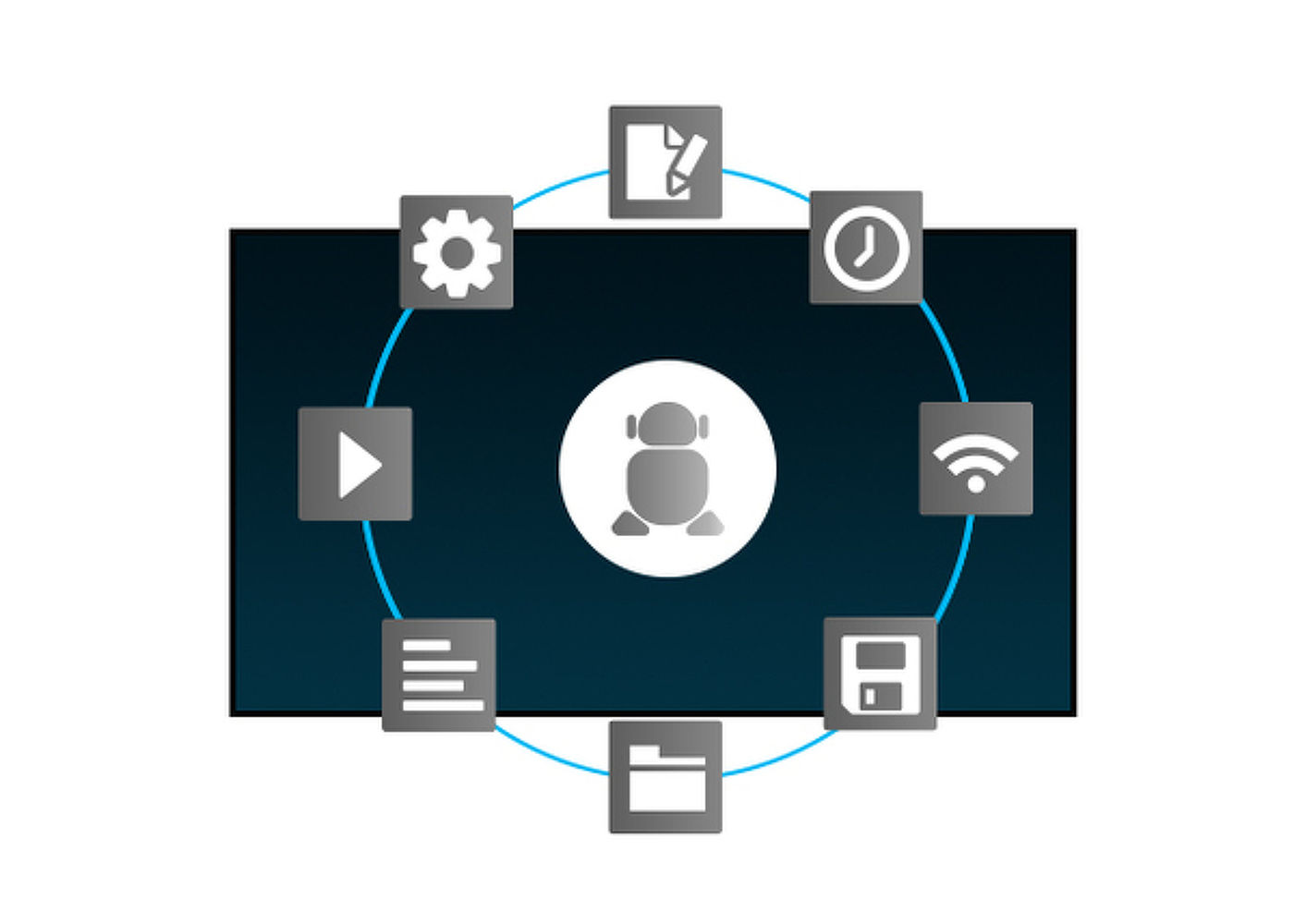

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

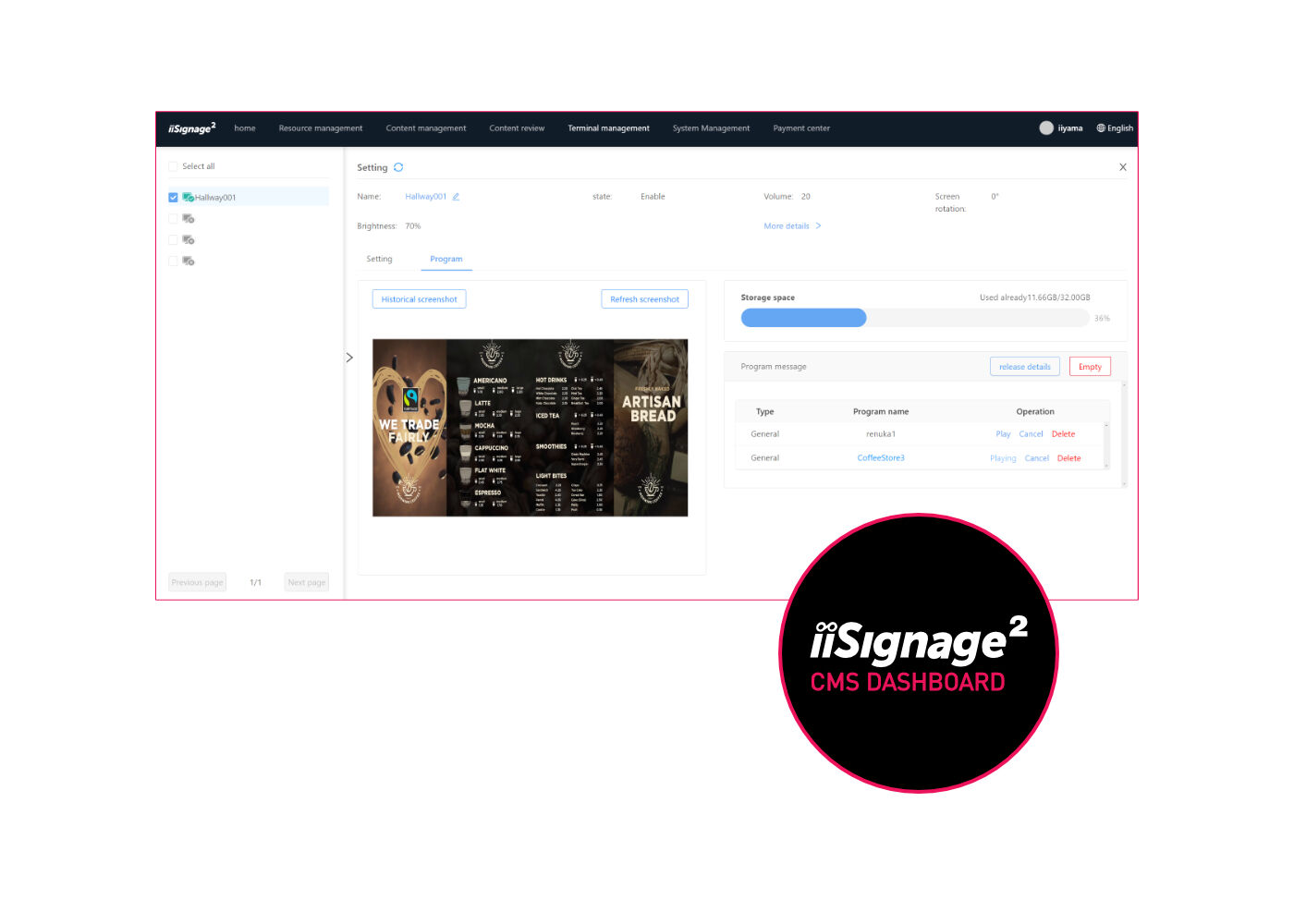

iiSignage

iiSignage is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Specifications:

DISPLAY CHARACTERISTICS
Design     Thin bezel
Diagonal     97.5", 247.7cm
Panel     IPS, AG coated glass, matte finish, haze 25%
Native resolution     3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio     16:9
Panel brightness     500 cd/m²
Static contrast     1200:1
Response time (GTG)     8ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync     28 - 160kHz
Viewable area W x H     2159 x 1214mm, 85 x 47.8"
Bezel width (sides, top, bottom)     14.9mm, 14.9mm, 14.9mm
Pixel pitch     0.562mm
Bezel colour and finish     black, matte

INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1 (DVI-I: VGA+DVI)
Digital signal input     DVI x1 (max. 1920x1080@60Hz)
HDMI x3 (v.2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)
DisplayPort x1 (v.1.4, max. 3840x2160 @60Hz)
Audio input     Mini jack x1 (3.5mm)
Monitor control input     RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output     DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output     Mini jack x1 (3.5mm)
Speakers 2 x 16W
Monitor control output     RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP     v.1.4 & 2.2
USB ports     x2 (v.2.0)

FEATURES
Integrated software     Android 11 OS, iiSignage², FailOver, EShare
WiFi     yes (Built-in, 2.4G/ 5G)
Hardware     CPU: A73*4+A53*4, GPU: Mali G52 MP8, RAM: 4GB, ROM: 32GB
Extra     OPS PC Slot, micro SD card slot, Wall mounting kit included (VESA 800x600mm)
Max. non-stop operating time     24/7
Anti image retention     yes
Video wall / daisy chain     Yes, (MST-output)
Media playback     yes
Housing (bezel)     metal

GENERAL
OSD languages     EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons     Power, Mute, Input, Volume +, Volume -, Up, Down, Menu
User controls     picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, OPS PC settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play     DDC2B

MECHANICAL
Orientation     landscape, portrait
Fanless design     yes
VESA mounting     800 x 600mm
Operation temperature range     0°C - 40°C
Storage temperature range     - 20°C - 60°C
MTBF     50.000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC 100 - 240V, 50/60Hz
Power usage     331W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)     G

DIMENSIONS / WEIGHT
Product dimensions W x H x D     2204.9 x 101.7 x 1260.4mm
Box dimensions W x H x D     2525 x 435 x 1750mm
Weight (without box)     77.8kg
