Дисплей IIYAMA TF1015MC-B3, тъч панел, 10.1" (25.65 cm), WXGA, DisplayPort, HDMI, VGA, USB, LAN

IIYAMA TF1015MC-B3



10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.



Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

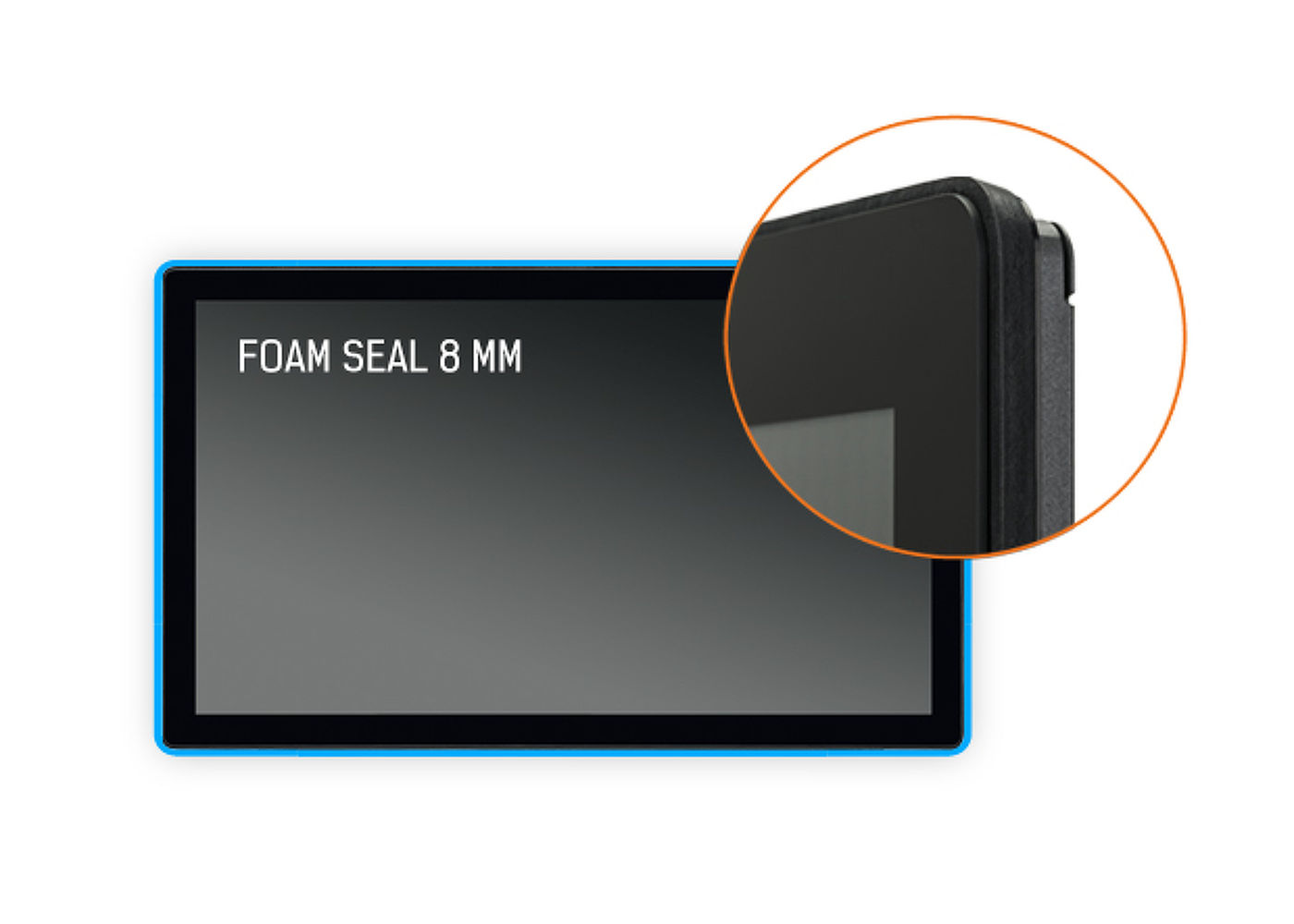

Foam Seal

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

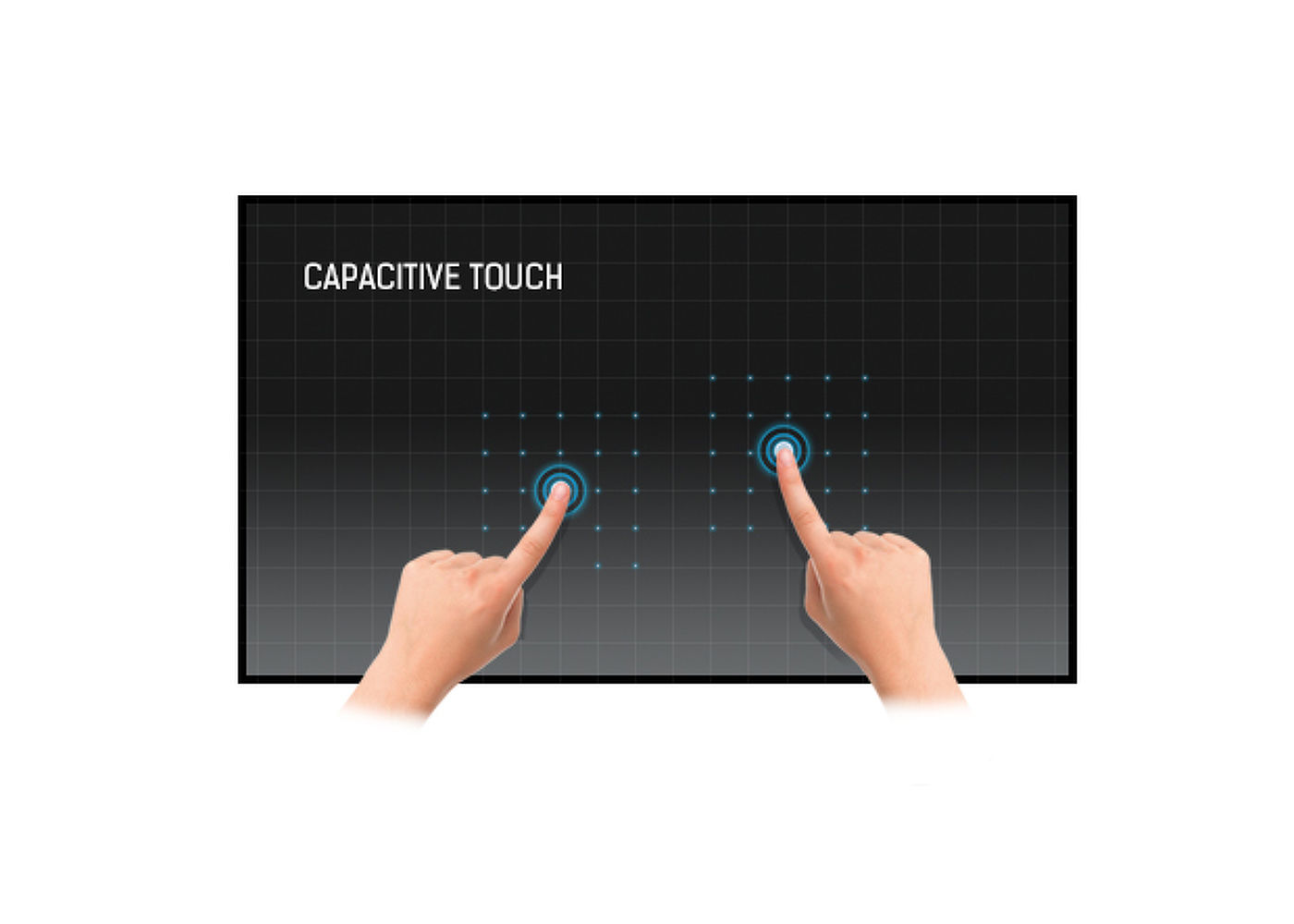

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.







Размер:	10.1"
Резолюция:	1280x800
Формат:	16:10
Панел:	IPS
Подсветка:	LED
Стъпка:	1.695
Тъчскрийн технология:	Capacitive multi touch
Тъчскрийн интерфейс:	USB
Покритие на екрана:	Anti-Fingerprint
Яркост:	500 cd/m2
Статичен контраст:	800 :1
Ъгли на виждане:	178 º/178 º
Време за реакция:	29 ms
Цветове на дисплея:	16.7 M
VGA:	1 x VGA
HDMI:	1 x HDMI
DisplayPort:	1 x Display Port
USB-HUB:	1 x USB 2.0
LAN:	1 x RJ45
Аудио:	Mini jack x1
Изходи:	Mini jack x1
Опционални входове и изходи:	DC 12 V
VESA:	100x100
Стойка:	без стойка
Функции:	Open Frame, Touch Through-Glass, Foam Seal, IP65 (front), 7H, OSD key lock, Portrait, Face-up
Включени аксесоари:	Power cable, USB cable, HDMI cable, DP cable, Quick start guide, Safety guide, AC adapter, External control pad, Cable cover, Remote control
Външно захранване:	да
Енергопотребление:	6 W
Сертификати:	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Цвят на корпуса:	Черен
Индекс на индустриална защита:	IP65 Front
Работна температура:	-0°C ~ +40°C
Гаранция:	36 месеца
Тегло:	1.400 кг.
Енергиен клас:	C
