Интерактивен дисплей IIYAMA TE5512MIS-B3AG, 55" (139.7 cm) 4K/UHD IPS сензорен дисплей, HDMI, VGA, LAN, USB, USB-C, RS232, Wi-Fi, Bluetooth

ProLite TE5512MIS-B3AG

55" Interactive 4K UHD Touchscreen elevating interactive collaboration

The TE5512MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.

Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE5512MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.

Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

PureTouch-IR

PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.

iiWare

iiWare 10 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.

iiyama Share

Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

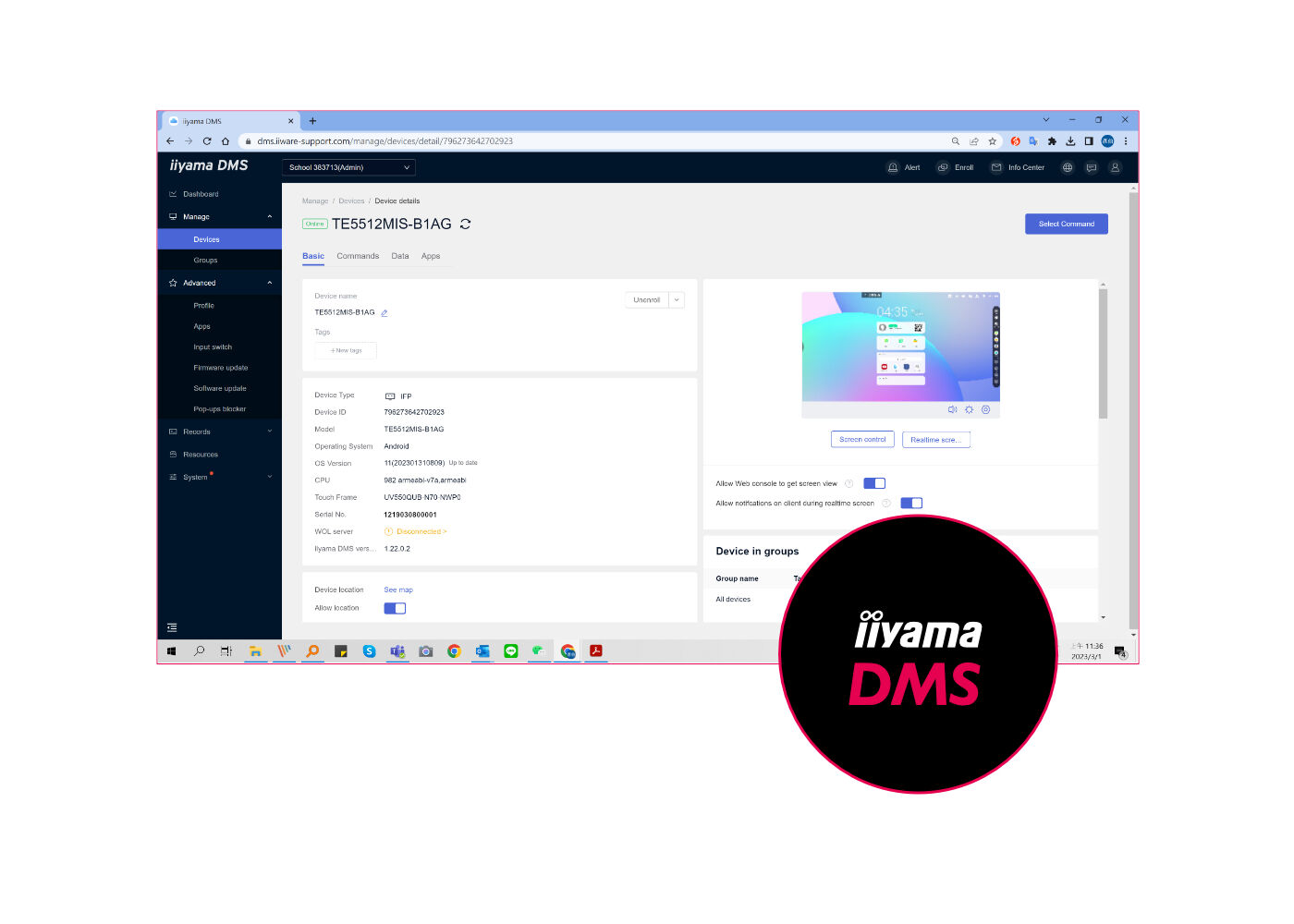

iiyama DMS

This software provides organizations a suitable and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office environment and makes campus/office management more convenient.

Security

Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.

Specifications:

DISPLAY CHARACTERISTICS
Design     Thin bezel
Diagonal     55", 138.8cm
Panel     IPS
Touch Glass     AG coated glass, zero air-gap
Native resolution     3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio     16:9
Panel brightness     400 cd/m²
Light transmittance     92%
Static contrast     1200:1
Dynamic contrast     4000:1
Response time (GTG)     8ms
Viewing zone     horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°
Colour support     1.07B 8bit+FRC
Horizontal Sync     30 - 135kHz
Viewable area W x H     1210 x 680mm, 47.6 x 26.8"
Bezel width (sides, top, bottom)     19mm, 19mm, 46mm
Pixel pitch     0.315mm
Bezel colour and finish     black, matte

TOUCH
Touch technology     PureTouch-IR
Touch points     40, 5pt writing (HID, only with supported OS)
Touch accuracy     +- 1.5mm
Touch method     stylus, finger, glove
Touch interface     USB

INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1 (max. 1920x1080 @60Hz)
Digital signal input     HDMI x3 (2.0, max. 3840x2160 @60Hz, YUV444)
USB-C x1 (v.3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (65W charging, Touch)
Audio input     Mini jack x1
Monitor control input     RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1
Digital signal output     HDMI x1 (3840x2160 @60Hz)
Audio output     S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front)
HDCP     HDMI 1: 2.1, USB-C: 2.2
USB ports     x5 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 65W PD), right side: 2x v.3.2 (Gen 1, 5Gbit))
RJ45 (LAN)     x2 (Auto switch for PC & Android, 1000MB)

FEATURES
Integrated software     iiWare 10 (Android 11 OS) featuring iiyama DMS, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
WiFi     yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Hardware     CPU: Quad core A55, GPU: Mali G52, RAM: 8GB, ROM: 64GB
Extra     WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
Kiosk mode     yes
Max. non-stop operating time     24/7
Media playback     yes
Glass thickness     3mm
Glass hardness     7H
Housing (bezel)     metal
OSD key lock     yes

GENERAL
OSD languages     EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons     Power, Power Indicator, Remote Sensor, Light Sensor
User controls     general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Blue light reducer     yes
Plug&Play     DDC2B

MECHANICAL
Orientation     landscape
Fanless design     yes
VESA mounting     400 x 200mm
Operation temperature range     0°C - 40°C
Storage temperature range     - 20°C - %2°C
MTBF     50.000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC AC - 100V, 240/V, 50Hz
Power usage     111W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     1271 x 774 x 87mm
Box dimensions W x H x D     1401 x 859 x 220mm
Pallet volume     160pcs
Weight (without box)     26.1kg
Weight (with box)     34.5kg
