IIYAMA T1732MSC-B1SAG
17" Projective Capacitive 10pt touch screen with AG-coating
The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

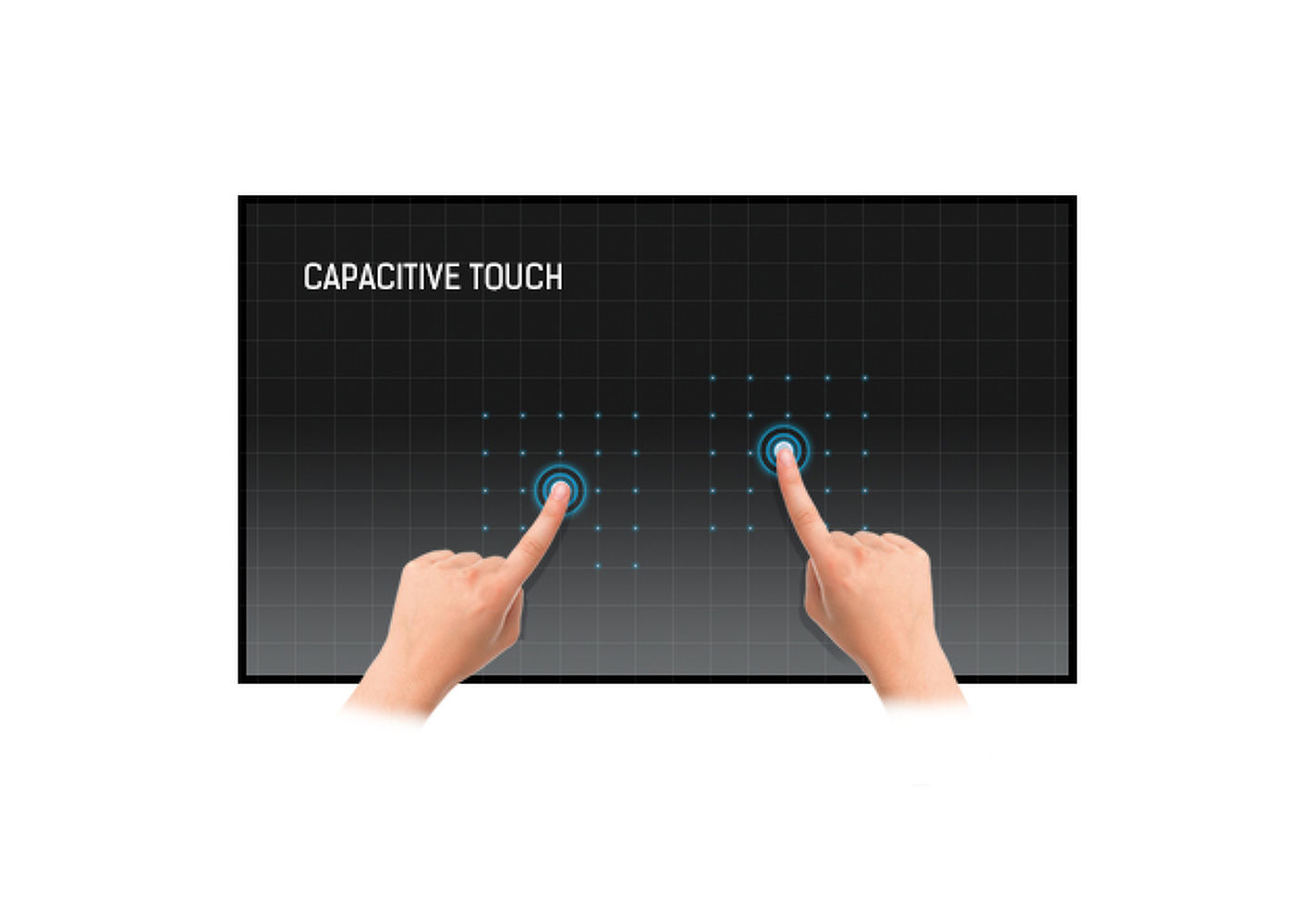

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
![](/images/custom/site/20240515152818.jpg)
AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
![](/images/custom/site/20240515152843.jpg)
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
![](/images/custom/site/20240515152901.jpg)
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
![](/images/custom/site/20240515152924.jpg)
Speakers
This LED monitor is equipped with two high quality stereo speakers.
![](/images/custom/site/20240515153000.jpg)
Specifications:
DISPLAY CHARACTERISTICS
Design Edge to edge glass
Diagonal 17", 43cm
Panel TN LED, AG coated glass
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 250 cd/m²
Brightness 215 cd/m² with touch
Light transmittance 85%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln
Horizontal Sync 31 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte
TOUCH
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio input Mini jack x1
Audio output Speakers 2 x 1W
HDCP yes
FEATURES
Water and dust protection IP54 (front)
OSD key lock yes
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug&Play DDC2B
MECHANICAL
Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm
Cable management system yes
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 387 x 378 x 240mm
Weight (without box) 4.9kg
