Интерактивен дисплей Elo ET1509L, 15.6" (39.62cm) 1366x768 TFT LCD сензорен дисплей, HDMI, VGA, USB

Elo ET1509L

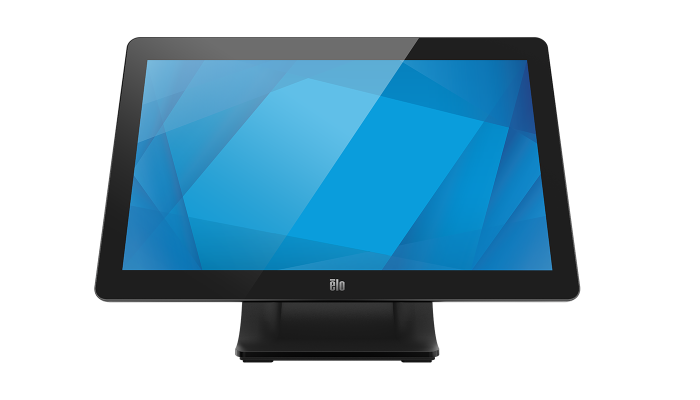

The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with TouchPro® PCAP offering multi touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.

Integrated touch. With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.

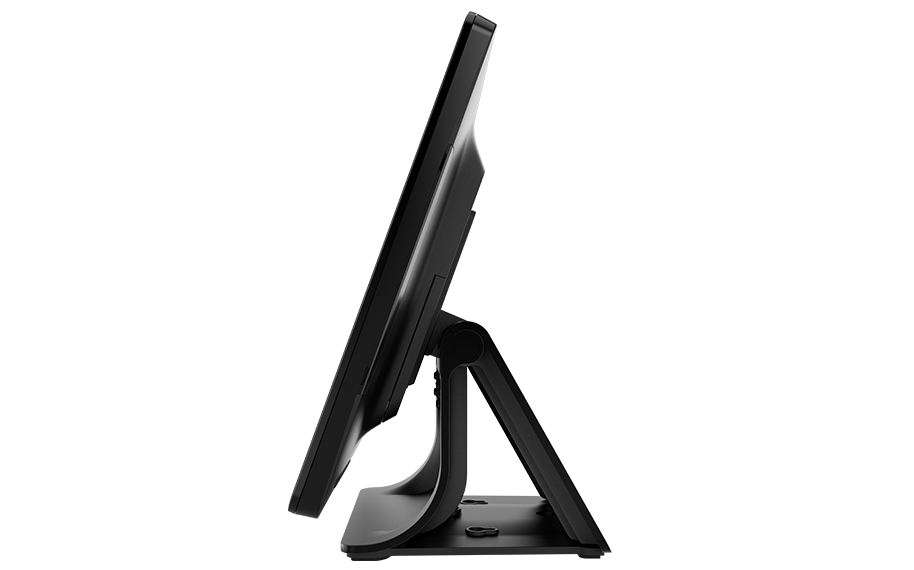

	Flexible mounting. The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade. The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

• Sleek and modern widescreen design with built-for-touch reliability
• Energy savings using LED technology
• Pure, clear glass touchscreen for superior picture quality
• Removable stand allows the monitor to be mounted on a wall or to a pole (via VESA bracket)
• Fixable to counter for extra security
• Optional, field-installable magnetic stripe reader (MSR)

Specifications

• Enclosure Color

  Black

  Touch Technology & Capacity

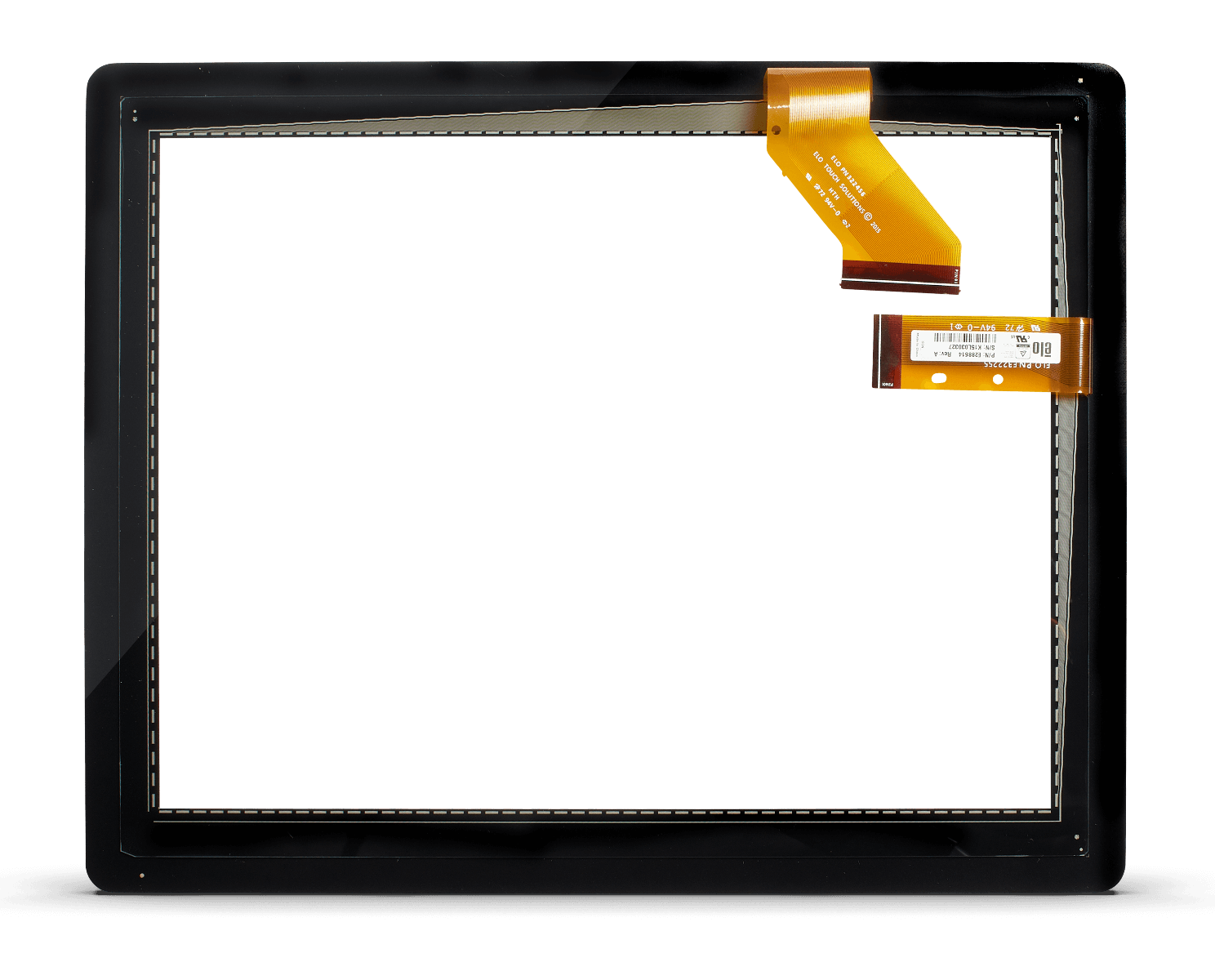

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Diagonal Size

  15.6'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area

  13.55" x 7.62" / 344.23 mm x 193.55 mm

  Resolution

  1366 x 768

  Other Supported Resolutions

  640 x 480 at 60Hz
  800 x 600 at 60Hz
  1024 x 768 at 60Hz
  1280 x 800 at 60, 60RB Hz
  1280 x 960 at 60Hz
  1280 x 1024 at 60Hz
  1360 x 768 at 60Hz
  1366 x 768 at 60, 60RB Hz

  Viewing Angle

  Horizontal: ±45° / 90° total
  Vertical: -40°/ +20° / 60° total

  Number of Colors

  6-bit (262,000)

  Brightness (typical)

  LCD Panel: 400
  PCAP: 360 nits

  Response Time-total (typical)

  12 msec

  Contrast Ratio

  500:1

  Touch Interface

  USB

  Power

  External DC Adapter 12V/24W in box
  Monitor input power connector: Coaxial power jack (2.1mm (+/- 0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

  Monitor input voltage range: 12VDC +/- 5%
  Adapter output power connector: DC barrel plug (2.1mm pin inner diameter, 5.5mm barrel outer diameter, 12mm Barrel length)
  Adapter input voltage range: 100-240 VAC
  Input frequency: 50-60 Hz

  Video_1

  Analog VGA
  HDMI

  Input Video Horizontal Sync frequency range: 31.5 – 82KHz
  Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

  Power Consumption (Typical)

  Monitor + AC/DC adapter
  ON: 6.41 W
  SLEEP: 0.84 W
  OFF: 0.21 W


  I/O Ports

  USB Type-B
  VGA (Mini-VGA female connecter)
  HDMI
  12V D/C input

  On Screen Display

  Accessible through switches along the bottom.

  Controls: Menu, Power, Up, Down, Select

  Settings: Brightness, Contrast, Input Select, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, power

  Monitor Dimensions (with Stand)

  11.16" x 15.24" x 6.83" / 283.4 mm x 387.1 mm x 173.5 mm

  Shipping Box Dimensions

  17.72" x 14.25" x 10.24" / 450 mm x 326 mm x 260 mm

  Weight (Unpackaged)

  5.82 lbs / 2.642 kg

  Weight (Packaged)

  10.49 lbs / 4.76 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

  MTBF

  50,000 hours demonstrated

  Mounting Options

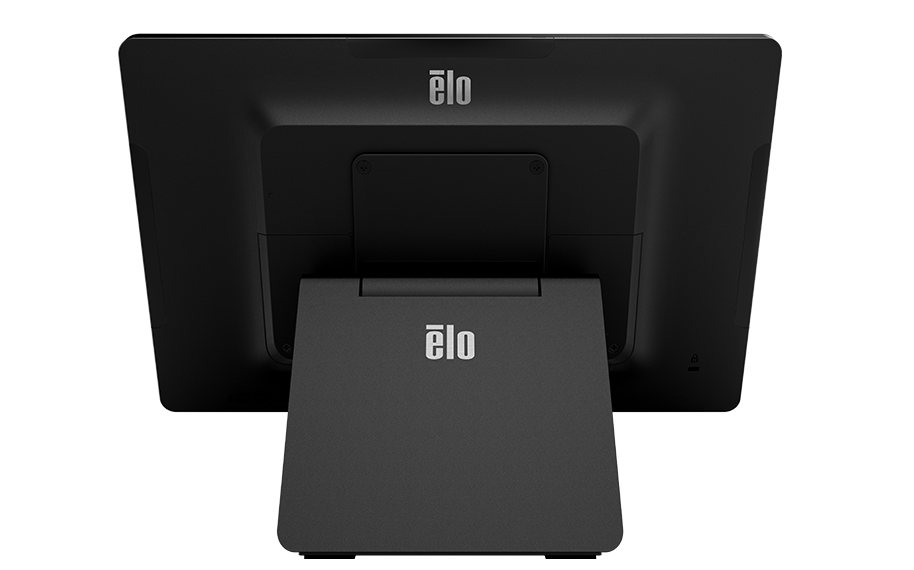

  VESA 4-hole 75mm and 100mm mounting interface on rear of unit
