Тъч монитор ViewSonic TD2423, 23.6" (59.94 cm) VA панел, 75Hz, Full HD, 7ms, 20 000 000:1, 250cd/m2, HDMI/DVI/VGA

ViewSonic TD2423

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

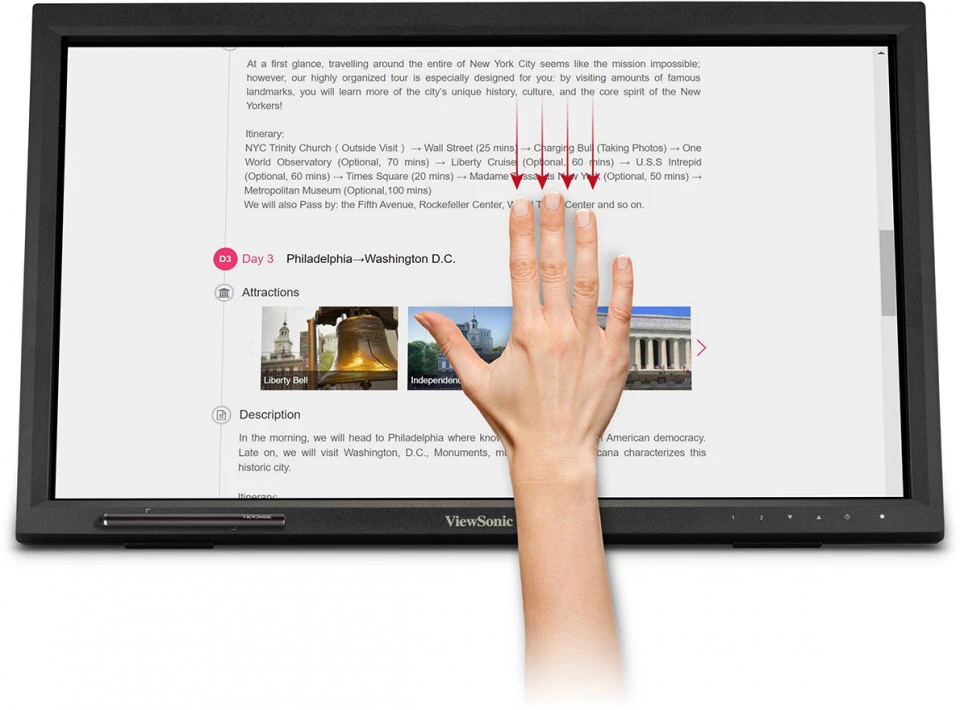

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

IR Touch Technology

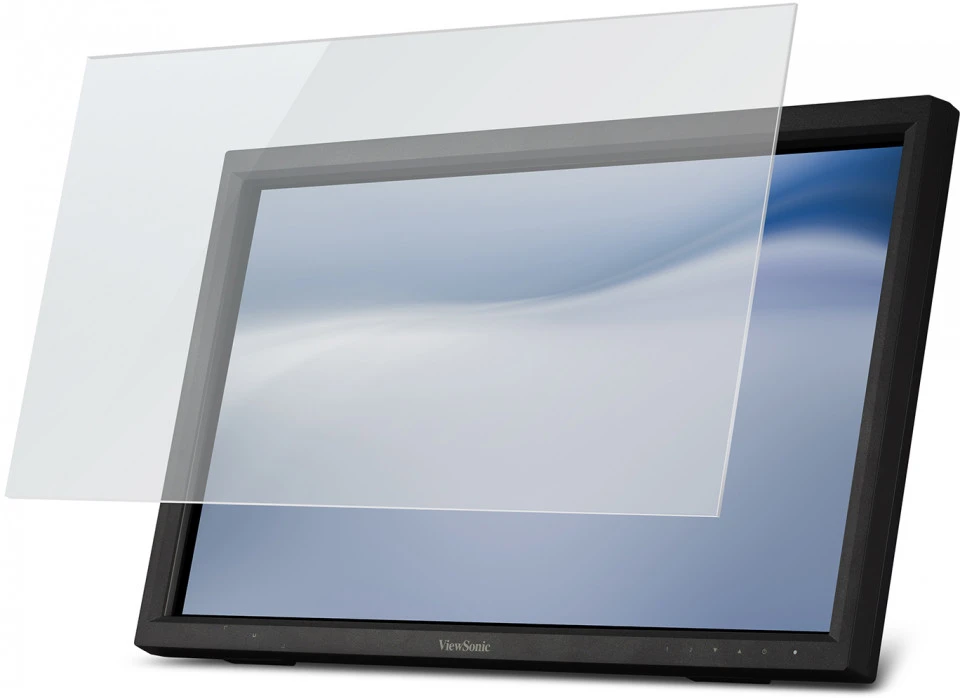

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

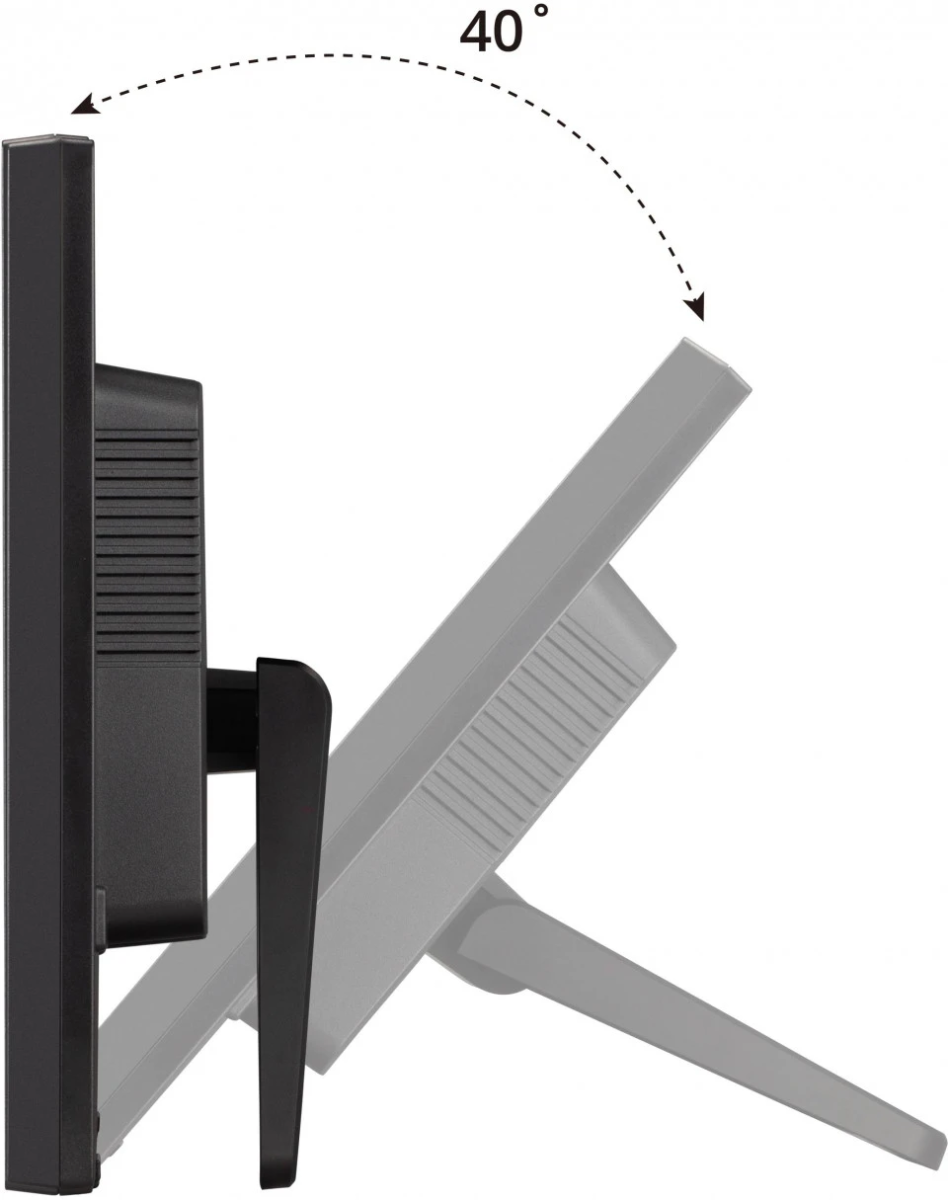

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Full HD 1080p Resolution

SPECIFICATIONS:

• Display

  Display Size (in.): 24
  Viewable Area (in.): 23.6
  Panel Type: VA Technology
  Resolution: 1920 x 1080
  Resolution Type: FHD
  Static Contrast Ratio: 3,000:1 (typ)
  Dynamic Contrast Ratio: 20M:1
  Light Source: LED
  Brightness: 250 cd/m² (typ)
  Colors: 16.7M
  Color Space Support: 8 bit (6 bit + Hi-FRC)
  Aspect Ratio: 16:9
  Response Time (Typical GTG): 7ms
  Response Time (GTG w/OD): 7ms
  Response Time (Typical Tr+Tf): 25ms
  Viewing Angles: 178º horizontal, 178º vertical
  Backlight Life (Hours): 40000 Hrs (Min)
  Curvature: Flat
  Refresh Rate (Hz): 75
  Blue Light Filter: Yes
  Flicker-Free: Yes
  Color Gamut: NTSC: 72% size (Typ), sRGB: 104% size (Typ)
  Pixel Size: 0.272 mm (H) x 0.272 mm (V)
  Touch Screen: IR, 10-point multi-touch
  Surface Treatment: Glossy, Hard Coating (7H)
  Cover Glass Thickness: 1.85mm

• Compatibility

  PC Resolution (max): 1920x1080
  Mac® Resolution (max): 1920x1080
  PC Operating System: Windows 10 certified; macOS tested
  Mac® Resolution (min): 1920x1080

• Connector

  VGA: 1
  USB 2.0 Type A: 2
  USB 2.0 Type B: 1
  3.5mm Audio In: 1
  3.5mm Audio Out: 1
  HDMI 1.4: 1
  DVI-D: 1
  Power in: 3-pin Socket (IEC C14 / CEE22)

• Audio

  Internal Speakers: 2Watts x2

• Power

  Eco Mode (Conserve): 11.5W
  Eco Mode (optimized): 13.5W
  Consumption (typical): 15.5W
  Consumption (max): 16.5W
  Voltage: AC 100-240V, 50/60 Hz
  Stand-by: 0.5W
  Power Supply: Internal

• Additional Hardware

  Kensington Lock Slot: 1
  Cable Organization: Yes

• Controls

  Physical Controls: 1, 2, Up, Down, Power
  On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

• Operating Conditions

  Temperature: 32°F to 104°F (0°C to 40°C)
  Humidity (non-condensing): 20% to 90%

• Wall Mount

  VESA Compatible: 100 x 100 mm

• Input Signal

  Frequency Horizontal: 24 ~ 82KHz
  Frequency Vertical: 50 ~ 75Hz

• Video Input

  Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
  Analog Sync: Separate/Composite/SOG - RGB Analog

• Ergonomics

  Tilt (Forward/Back): 22º / 38º

• Weight (imperial)

  Net (lbs): 11.5
  Net Without Stand (lbs): 10.3
  Gross (lbs): 15.4

• Weight (metric)

  Net (kg): 5.2
  Net Without Stand (kg): 4.7
  Gross (kg): 7

• Dimensions (imperial) (wxhxd)

  Packaging (in.): 25.4 x 16.6 x 6.5
  Physical (in.): 22.5 x 13.7 x 4
  Physical Without Stand (in.): 22.5 x 13.7 x 2.4

• Dimensions (metric) (wxhxd)

  Packaging (mm): 645 x 422 x 166
  Physical (mm): 571 x 348 x 101
  Physical Without Stand (mm): 571 x 348 x 61

•
