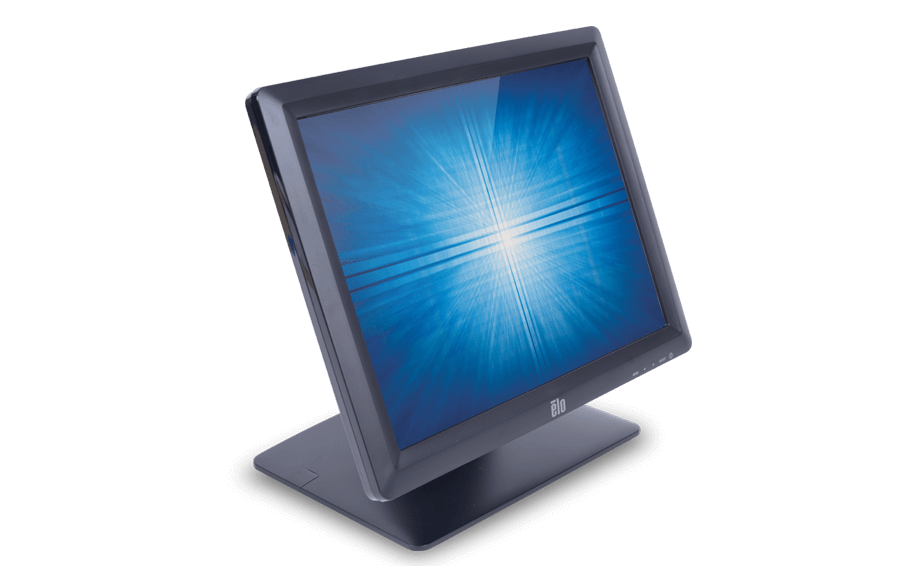

Тъч монитор Elo 1517L (E344758), 15" (38.10 cm) LED панел, XGA, 23ms, 800:1, 300 cd/m2, HDMI, VGA, RS-232

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

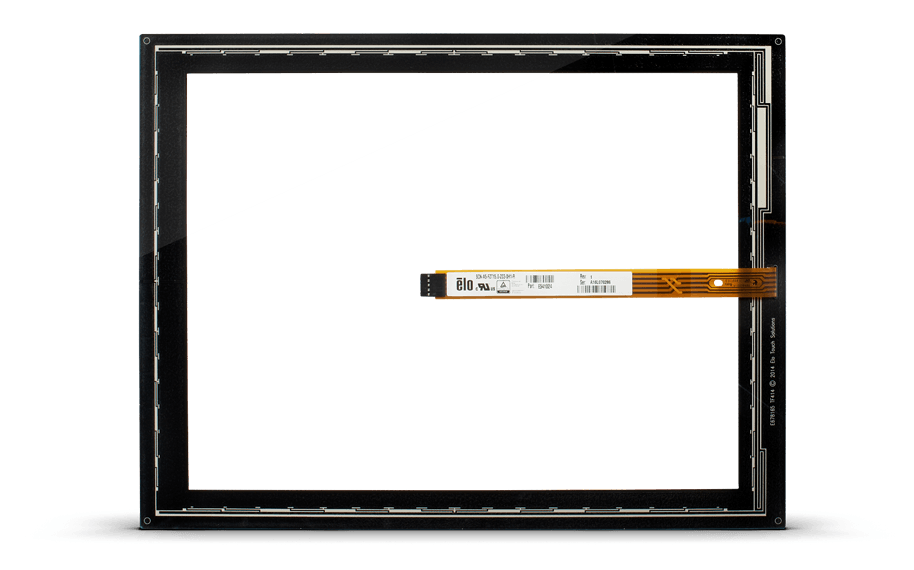

Integrated touch. The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
	MSR ready. The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

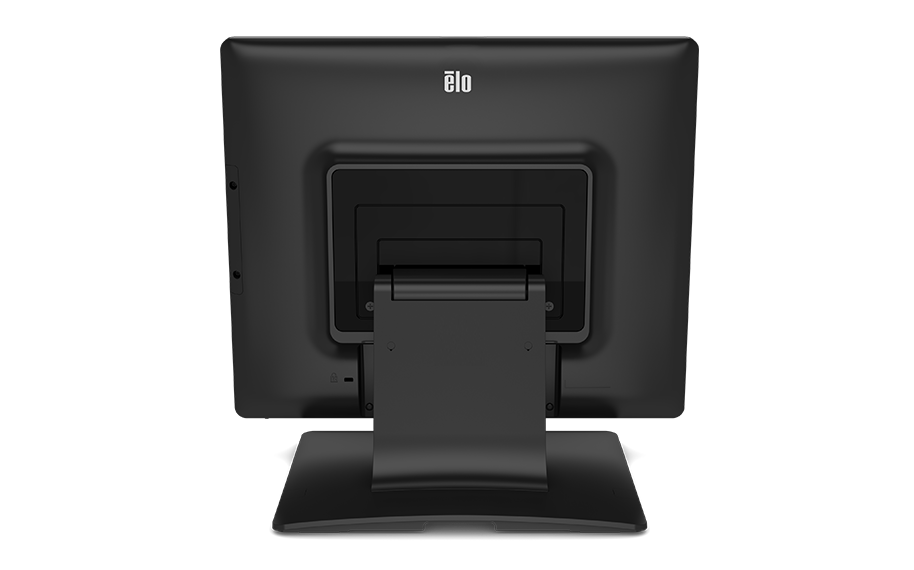

Flexible mounting. The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

Other features.

• Sleek and thin design with built-for-touch reliability
• Flexible and space-saving
• 60% Energy savings using LED technology
• Sealed touchscreen against dirt, dust and liquids
• Removable base and mounting options including VESA, wall and pole-mounting
• USB and RS232 serial connections

Specifications:

Enclosure Color

Black

Touch Technology & Capacity

5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

Diagonal Size

15'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

4:3

Active Area

11.97" x 8.98" / 304.13 mm x 228.10 mm

Resolution

1024 x 768 @ 60Hz, 75Hz

Other Supported Resolutions

640 x 480 60Hz, 75Hz
720 x 400 70Hz
800 x 600 56Hz, 60Hz, 75Hz
1024 x 768 60Hz, 75Hz

Viewing Angle

Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

Number of Colors

16.2 million

Brightness (typical)

LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 270 nits

Response Time-total (typical)

23 msec

Contrast Ratio

800:1

Touch Interface

Serial (RS232) and USB

On Screen Display

Accessible through switches along the bottom.

Controls: Menu, Up, Down, Select, Power

Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

I/O Ports

VGA
HDMI
DC jack
AC jack
USB Type B
RS-232 (DB-9)

Video

Analog VGA on Female DB-15 connector
Digital HDMI on Type A receptacle

Input Video Horizontal Sync frequency range: 31.5 – 60KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz

Power

Monitor AC input power connector: IEC 60320 C6
Monitor AC input voltage specifications: 100-240VAC, 50/60Hz.

Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor DC input voltage specifications: 12VDC +/- 5%

Power Consumption (Typical)

Monitor Only
ON: 10.5W
SLEEP: 1.40W
OFF: 0.3W

Monitor Dimensions (without Stand)

Bezel: 14.1" x 1.97" x 12.5" / 358 mm x 50 mm x 319
Zero Bezel: 14.1" x 1.73" x 12.5" / 358 mm x 44.1 mm x 319 mm

Monitor Dimensions (with Stand)

14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm

Shipping Box Dimensions

19.2" x 9.1" x 19.1" / 487 mm x 231 mm x 485 mm

Weight (Unpackaged)

9.48 lbs / 4.3 kg

Weight (Packaged)

16.09 lbs / 7.3 kg
