Точка за достъп ZyXEL NWA55AXE, 1800Mbps, 2.4GHz (575Mbps)/ 5GHz (1200Mbps), 1x 10/100/1000 LAN, PoE, 2x външни антени

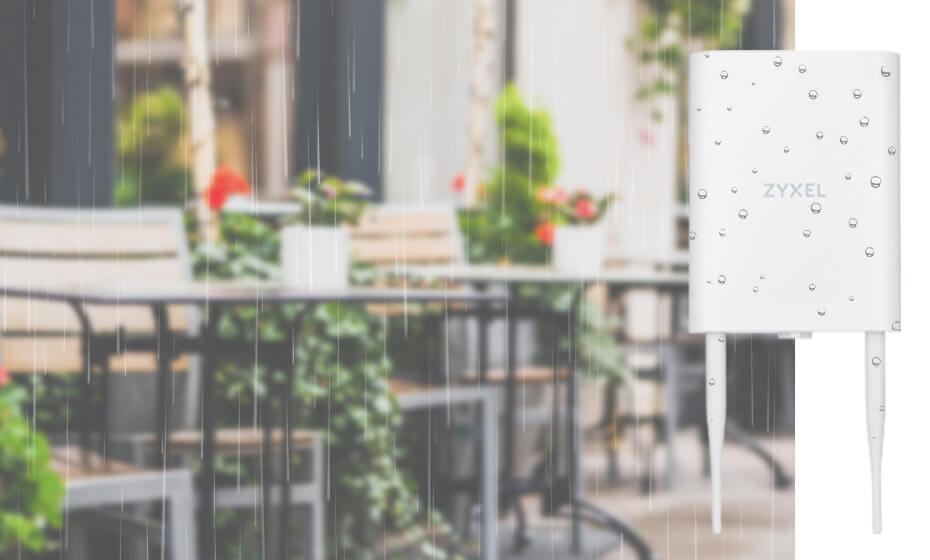

Durable, Weatherproof Outdoor WiFi 6 AP

Thinking of upgrading to the 11ax (WiFi 6) technology for your outdoor wireless network? Zyxel NWA55AXE is your answer!

Designed for harsh outdoor environments, the IP55-rated, weatherproof NWA55AXE is the best WiFi 6 outdoor access point to extend your wireless network outside.













Simple Installation. Easy Configuration.

Perfect for small business owners or SOHO users, the NWA55AXE supports both local GUI management and Nebula Cloud networking management. The simple setup in Nebula APP or web allows you to quickly configure the AP with only a few clicks, making it super easy to set up guest and employee network on your own and start enjoying the ultra-fast WiFi 6 speeds in no time.















Specifications

Wireless:  Standard IEEE 802.11 ax/ac/n/g/b/a

MIMO:  MU-MIMO

Wireless speed:

• 2.4GHz: 575 Mbps

• 5GHz: 1200 Mbps

Frequency band

2.4 GHz:  Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:  European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth:  20-, 40-, 80-MHz

Conducted typical transmit output power:  EU (2.4GHz/5GHz): 20/25 dBm

RF Design

Antenna type:  2x2 External Antenna

Antenna gain:  2.4GHz: 4 dBi, 5GHz: 5 dBi

Minimum Receive sensitivity:  Min. Rx sensitivity up to -99 dBm

WLAN feature

Band Steering:  Yes

WDS/Mesh:  Yes

Fast roaming:  Yes

DCS:  Yes

Load balancing:  No

Security

Encryption

• WPA Personal
• WPA2 Personal
• WPA3 Personal

Authentication:  No

Access management

• MAC filtering
• Rogue AP detection

Networking

IPv6:  Yes

VLANs:  Yes

WMM:  Yes

U-APSD:  Yes

Management

Operating mode

• Nebula Cloud managed
• Standalone

Zyxel Wireless Optimizer:  WiFi AP planning

Web UI/CLI:  Yes

SNMP:  NO

Physical Specifications

Item Dimensions (WxDxH)(mm/in.):  308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95

Weight (g/lb.): 580/1.28

Packing Dimensions (WxDxH)(mm/in.):  221 x 188 x 59 / 8.70 x 7.40 x 2.32

Weight (g/lb.):  887/1.96

MTBF (hr):  1,091,186

Physical Interfaces

Ethernet port:  1 x 10/100/1000M LAN

Power

• Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
• PoE (802.3at): power draw 16 W

Environmental Specifications

Operating Temperature:  0°C to 50°C/32°F to 122°F

Humidity:  10% to 90% (non-condensing)

Storage Temperature:  -40°C to 70°C/-40°F to 158°F

Humidity:  10% to 90% (non-condensing)

Certifications

Radio

• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893; LP0002
• EN 60601-1-2

EMC

• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438

Safety

• EN 60950-1
• IEC 60950-1
• BSMI
• CNS14336-1
