Точка за достъп ZyXEL NWA220AX-6E, 2.4GHz (575 Mbps)/ 5GHz (4800Mbps)/ 6GHz (4800Mbps), Wireless AX, 1x RJ-45 10/100/1000, 1x RJ-45 10/100/1000/2500, 4x вътрешни антени

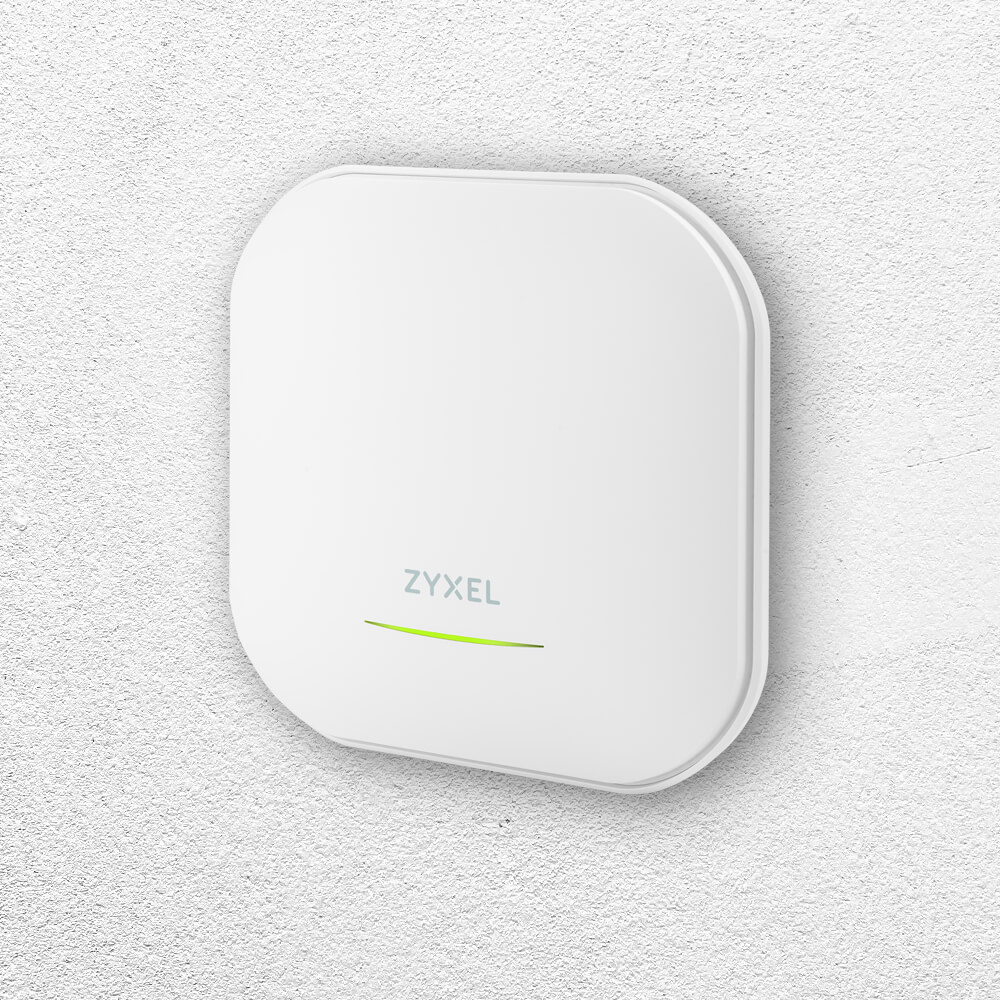

ZyXEL NWA220AX-6E

WiFi 6E – the Fastest Speed EVER

WiFi 6E, the extended version of the WiFi 6, provides a huge innovation leap to wireless industry by taking it into a much wider 6GHz radio spectrum that more than doubles WiFi capacity to further meet today’s demands and tomorrow’s challenges.

It includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6GHz that more than doubles the WiFi capacity to deliver ultra-fast speed and low-latency connections.

NWA220AX-6E for High-density WiFi

WiFi 6E, the new 6 GHz band, presents a solution to quenching the thirst for today’s hunger for more bandwidth. The NWA220AX-6E’s BandFlex radio design allows the AP to support either 5GHz or 6GHz band by configuration, making it the most economical choice to fit into your existing 5GHz coverage, as well as futureproofing the use of 6Ghz. The NWA220AX-6E is a perfect choice for:

Flexible BandFlex radio design

The Zyxel NWA220AX-6E is the dual-radio access point with a BandFlex radio design that can support either 5GHz or 6GHz by configuration, making it the most economical choice to fit into your existing 5GHz coverage as well as futureproofing the use of 6GHz.

Wireless

Standard

IEEE 802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 575 Mbps

5GHz: 4800 Mbps

6GHz: 4800 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

6 GHz

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40-,80- and 160-MHz

Conducted typical transmit output power*1
(limited by local regulatory requirements)

US (2.4GHz/5GHz/6GHz): 24/25/24dBm

EU (2.4GHz/5GHz/6GHz): 18/22/19dBm

RF Design

Antenna type

4x4 + 2x2 MIMO Embedded Antenna

Antenna gain

2.4 GHz: Peak Gain 3dBi

5 GHz: Peak Gain 5dBi

6 GHz: Peak Gain 6dBi

Minimum receive sensitivity

Min. Rx sensitivity up to -101 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced Cellular Coexistence

Yes

Security

Encryption

WEP

WPA

WPA2-PSK

WPA3

Authentication

WPA

WPA2

WPA2-Enterprise

EAP

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes


Management

Operating mode

Nebula cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

NO

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
180 x 180 x 42 mm / 7.09 x 7.09 x 1.65

Weight (g/lb.)
650g/1.43lb

Packing

Dimensions (WxDxH)(mm/in.)
197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36

Weight (g/lb.)
780g/1.72lb

Included accessories

Mount plate

Mounting screws

MTBF (hr)

711,333

Physical Interfaces

Ethernet port

1 x 1/2.5Gbps LAN

1 x 1Gbps LAN

Power

PoE (802.3)at: power draw 21 W

DC input : 12 VDC 2A

PoE modes

IEEE802.3af: No Wireless

IEEE802.3at: Unrestricted

IEEE802.3bt: Unrestricted
