Точка за достъп ZyXEL NWA50AX, 1800Mbps, 2.4GHz (575Mbps)/ 5GHz (1200Mbps), 1x 10/100/1000 LAN, PoE, 2x вътрешни антени

















The Simple Path to WiFi 6 for Small Businesses & Home Offices

The Zyxel NWA50AX is the true WiFi 6 access point that comes with the right-fit feature set for small businesses and SoHo users looking to upgrade to 11ax (WiFi 6) without an expensive price tag. Supporting both 2.4Ghz and 5Ghz frequencies, the AP is aimed to empower you to enjoy all the best things WiFi 6 has to offer such as faster speeds even when congested or in high-density environments, expanded range in your wireless network, increased capacity for IoT deployments, and a lot more.

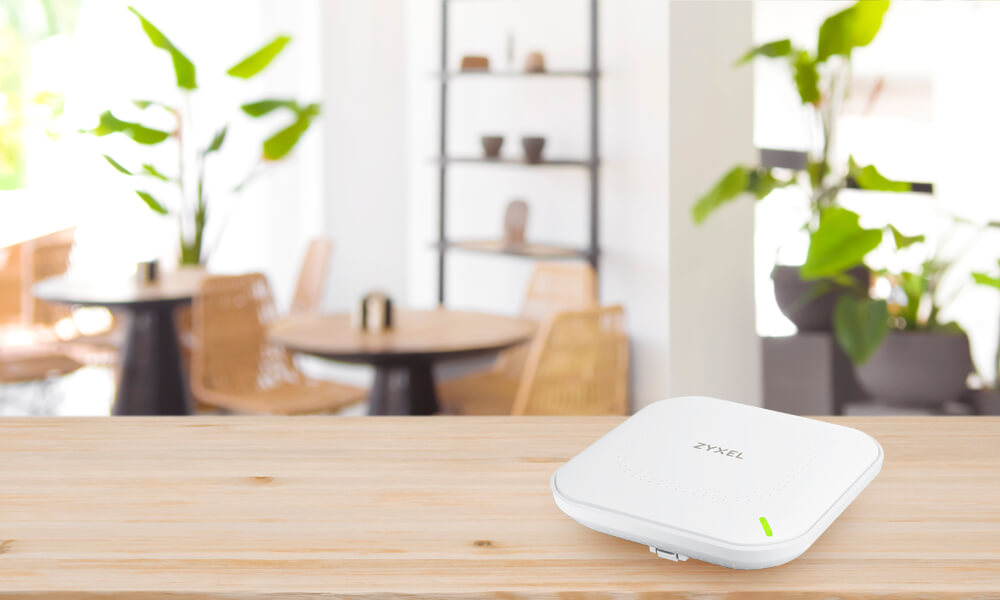

Simple Installation.

No networking expertise required - The NWA50AX can be easily installed and configured by everyone in small hotels, coffee shops, home offices, or boutique/retail stores. It supports both local GUI management and Nebula Cloud networking management, the simple setup allows you to quickly configure the AP with only a few clicks, making it super easy to set up guest and employee network on your own and start enjoying the ultra-fast WiFi 6 speeds in no time













Easy Networking for Uncompromised Security

The average user is more likely to favor using the easiest method to get their network set up quickly than dealing with complex configurations, resulting in insecure encryption with compromised security. Supporting the latest WPA3 Personal standard, the NWA50AX is designed to bring stronger encryption to protect your wireless network without complicated configurations.







Specifications



Wireless:  Standard IEEE 802.11 ax/ac/n/g/b/a

MIMO:  MU-MIMO

Wireless speed:

• 2.4GHz: 575 Mbps

• 5GHz: 1200 Mbps

Frequency band

2.4 GHz:  Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:  European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth:  20-, 40-, 80-MHz

Conducted typical transmit output power:  EU (2.4GHz/5GHz): 20/25 dBm

RF Design

Antenna type:  2x2 + 2x2 MIMO embedded antenna

Antenna gain:  2.4GHz: 3 dBi, 5GHz: 4 dBi

Minimum Receive sensitivity:  Min. Rx sensitivity up to -99 dBm

WLAN feature

Band Steering:  Yes

WDS/Mesh:  Yes

Fast roaming:  Yes

DCS:  Yes

Load balancing:  No

Security

Encryption

• WPA Personal
• WPA2 Personal
• WPA3 Personal

Authentication:  No

Access management

• MAC filtering
• Rogue AP detection

Networking

IPv6:  Yes

VLANs:  Yes

WMM:  Yes

U-APSD:  Yes

Management

Operating mode

• Nebula Cloud managed
• Standalone

Zyxel Wireless Optimizer:  WiFi AP planning

Web UI/CLI:  Yes

SNMP:  NO

Physical Specifications

Item Dimensions (WxDxH)(mm/in.):  140 x 140 x 37.5/5.51 x 5.51 x 1.48

Weight (g/lb.):  290/0.64

Packing Dimensions (WxDxH)(mm/in.):  240 x 155 x 60/9.45 x 6.10 x 2.36

Weight (g/lb.):  600/1.32

MTBF (hr):  1,010,980

Physical Interfaces

Ethernet port:  1 x 10/100/1000M LAN

Power

• Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
• PoE (802.3at): power draw 16 W

Environmental Specifications

Operating Temperature:  0°C to 50°C/32°F to 122°F

Humidity:  10% to 90% (non-condensing)

Storage Temperature:  -40°C to 70°C/-40°F to 158°F

Humidity:  10% to 90% (non-condensing)

Certifications

Radio

• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893; LP0002
• EN 60601-1-2

EMC

• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438

Safety

• EN 60950-1
• IEC 60950-1
• BSMI
• CNS14336-1
