Проектор ViewSonic LS510WH, LED, WXGA (1280x800), 3 000 000:1, 3000lm, HDMI, AUX, USB, RS232

ViewSonic LS510WH

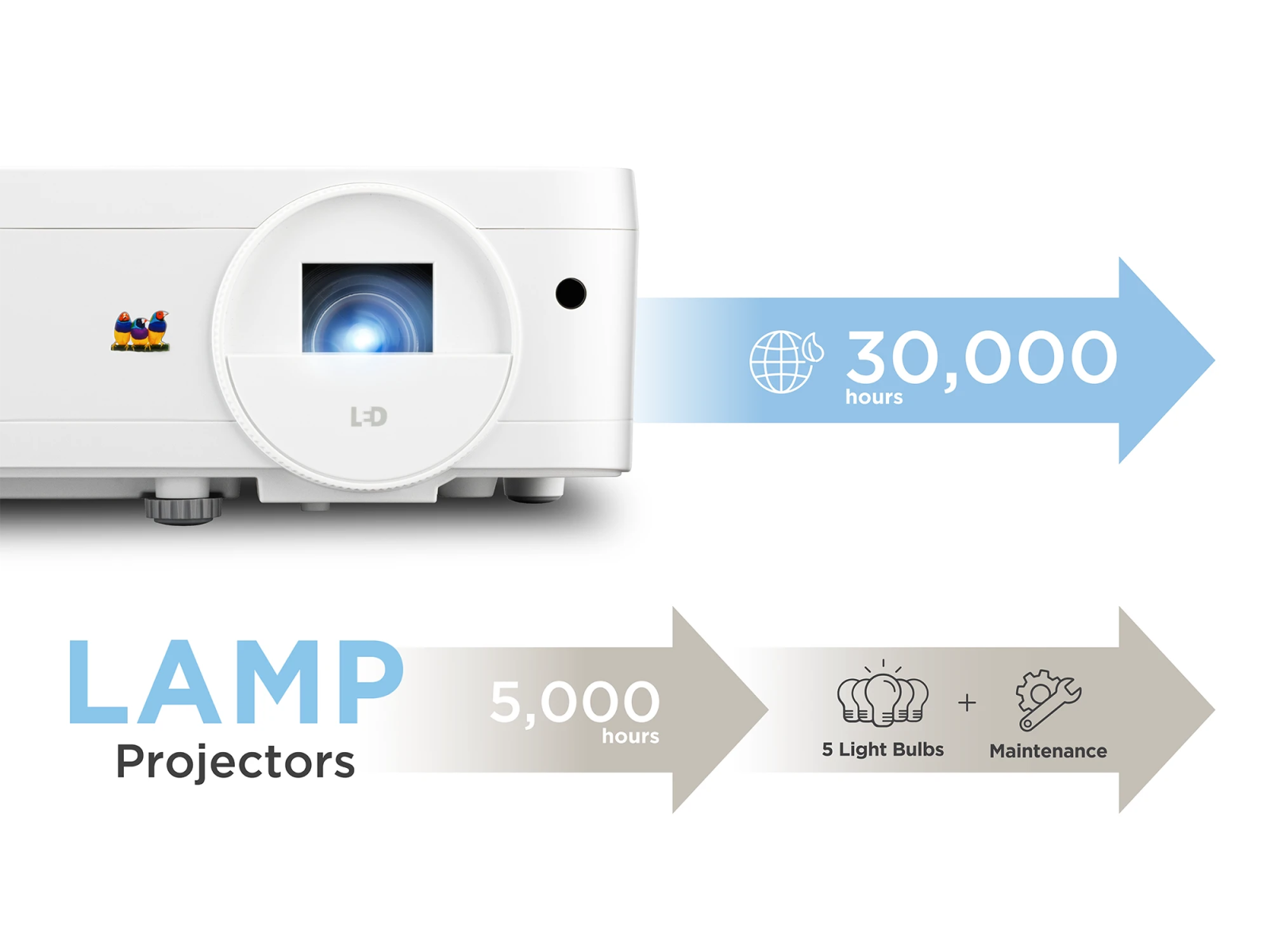

3rd Generation LED Technology for Greater Sustainability

With the 3rd generation LED technology, the LS510WH frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future. ​

Lamp-free, Mercury-free, Maintenance-free

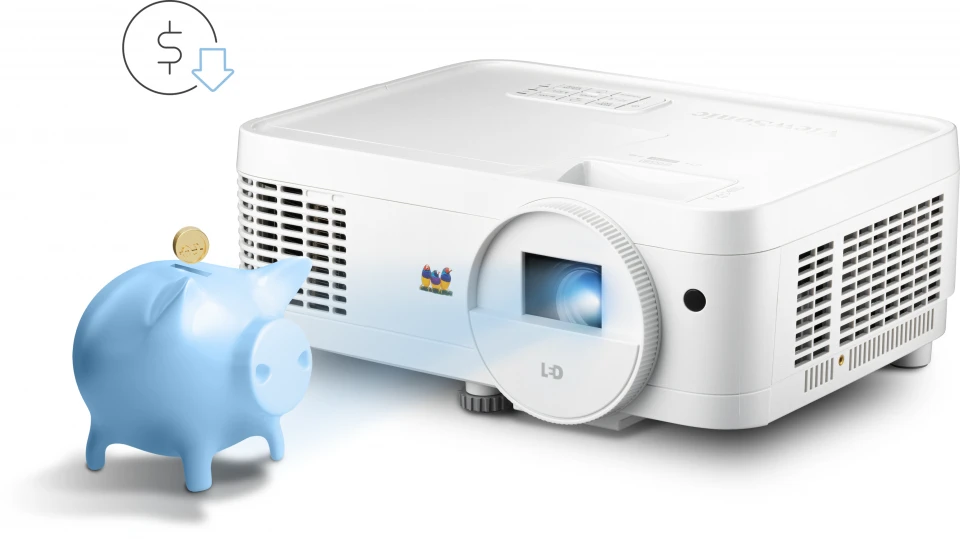

Saving More with the Advanced LED Technology

Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.​

Enhanced Brightness for Business/Education Environments

Thanks to the latest LED technology, the LS510WH achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1​, the projector ensures bright and detailed images in dim or lit environments.​

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, Bring your presentation with a true-to-life color experience.​

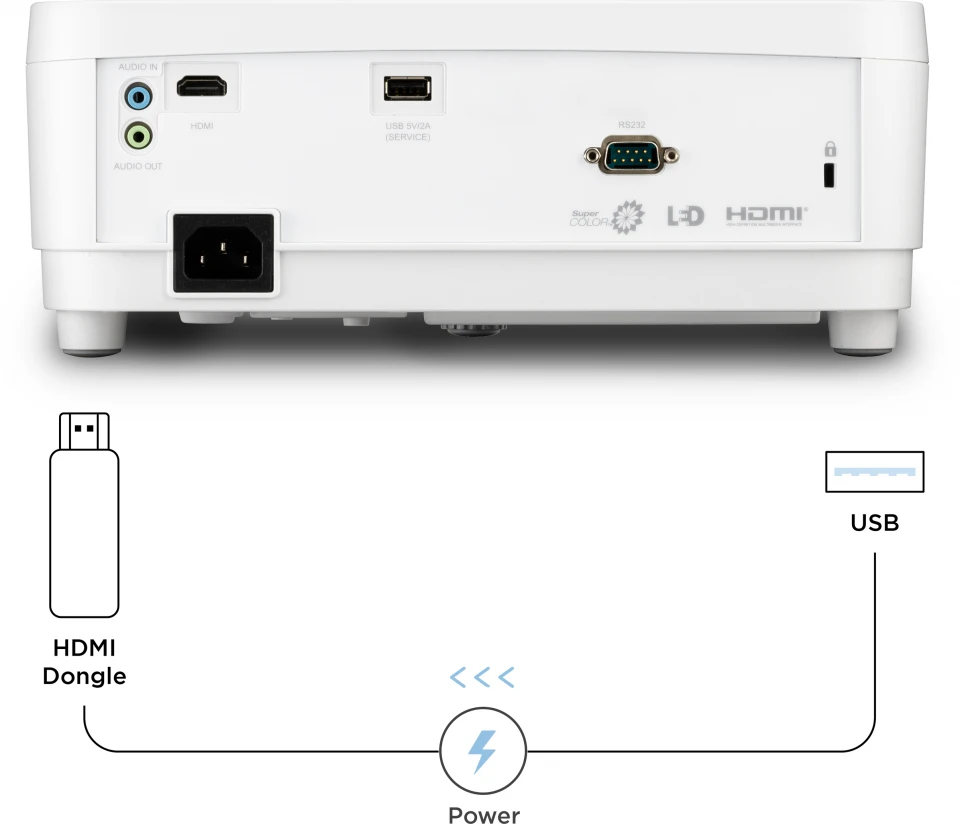

USB Type A Power Supply​

The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.​

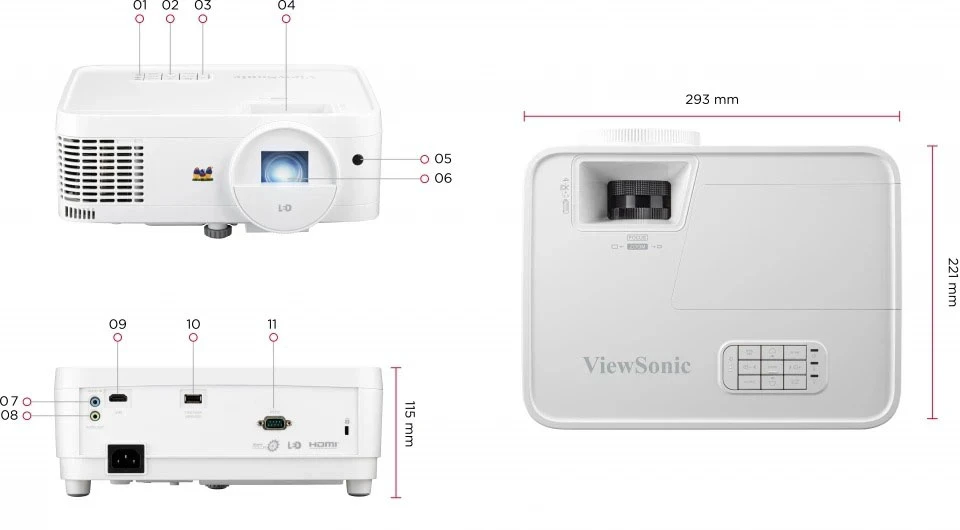

• 1 LED Indicator
• 2 Keypad
• 3 Power Button
• 4 Zoom/Focus Ring
• 5 Front IR
• 6 Lens
• 7 Audio In
• 8 Audio Out
• 9 HDMI
• 10 USB-A (5V/2A, Service)
• 11 RS232

• Specification

  Projection System: 0.65'' WXGA
  Native Resolution: 1280x800
  Brightness: 3000 (ANSI Lumens)
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: LED
  Light Source Life (hours) with Normal Mode: 30000
  Lens: F=2.56-2.68, f=22-24.1mm
  Projection Offset: 100%+/-5%
  Throw Ratio: 1.55-1.70
  Optical Zoom: 1.1X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 1m-10.98m
  (100"@3.34m)
  Keystone: +/- 40° (V)
  Audible Noise (Normal): 34dB
  Audible Noise (Eco): 28dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 23-120Hz


• Input

  HDMI: 1
  (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm): 1


• Output

  Audio-out (3.5mm): 1
  Speaker: 2W
  USB Type A (Power): 1 (5V/2A)


• Control

  RS232 (DB 9-pin male): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 240W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 2.65kg
  Gross Weight: 3.75kg
  Dimensions (WxDxH) with Adjustment Foot: 293x221x115mm
  Packing Dimensions: 365x300x188mm
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
