Extended Lifespan
Users can choose different lamp mode to extend the lamp’s lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode
| |

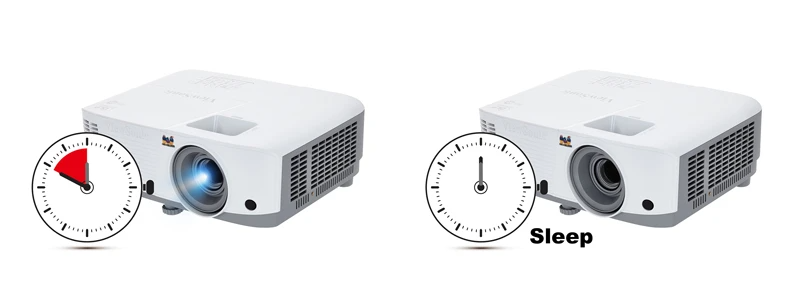

Automatic Sleep Timer
Forgetting to shut off projectors is a common occurrence, especially in public spaces such as classrooms and meeting rooms. PA503S’s sleep timer allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically. | |
Bright Images in Any Environment
3,800 ANSI Lumens of brightness and a 22,000:1 high contrast ratio guarantee the production of bright images in any environment, including rooms with high ambient light. | |
Amazing Colour Accuracy
ViewSonic’s proprietary SuperColour™ Technology displays a wide range of visible colour, ensuring that users enjoy more realistic and accurate colour in both bright and dark environments without sacrificing image quality. |
Fine-Tuned Viewing
Choose from 5 unique preset viewing modes to provide the best settings for your usage:
| |
Immersive 3D Viewing
PA503S’s HDMI port allows users to project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players. | |

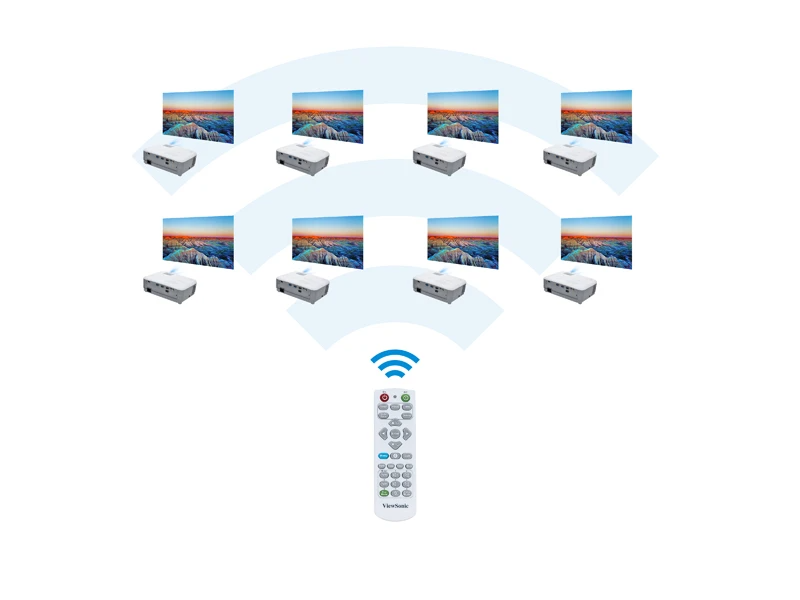

Remote Control Functionality
This projector can be assigned to 8 different remote control codes in the same venue through a single remote control for effortless projector selection, configuration and operation during lessons or meeting. It can also operate certain projectors when the coded are fitted both on the projector and on the remote control. | |
Time Management Assistance
Presentation Timer is an embedded on-screen timer that helps users with time management during presentations. Once a specified time limit has been reached, the projector will signal this with a beep, keeping presentations running on time. |
SPECIFICATION
Projection System: 0.55" SVGA
Native Resolution: 800x600
Brightness: 3800 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 22000:1
Display Color: 1.07 Billion Colors
Light Source Type: Lamp
Light Source Life (hours) with Normal Mode: 5000
Light Source Life (hours) with SuperEco Mode: 15000
Lamp Watt: 190W
Lens: F=2.56-2.68, f=22-24.1mm
Projection Offset: 120%+/-5%
Throw Ratio: 1.96-2.15
Optical Zoom: 1.1x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 1.19m-13.11m(100"@3.98m)
Keystone: +/- 40° (V)
Audible Noise (Normal): 31dB
Audible Noise (Eco): 27dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 2
Composite: 1
HDMI: 1 (HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
Control
RS232 (DB 9-pin male): 1
USB Type Mini B (Services): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
Power Consumption: Normal: 260WStandby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.2kg
Gross Weight: 3.24Kg
Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
Packing Dimensions: 365x300x188mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Total 15 languages
Виж още Проектори ViewSonic
Виж всички Проектори в категорията
Тип: | DLP |
---|---|
3D: | 3D |
Разделителна способност (native): | 800 x 600 |
Разделителна способност (max): | 1920 x 1080 |
Яркост: | 3800 lm |
Контраст: | 22000 |
Мрежови възможности: | Не |
Говорители: | Да |
4K: | Не |
Разстояние на проектиране: | 1.2m - 13m |
Short Throw: | Не |
Живот на лампата: | 15000 h |
Предназначен за: | Бизнес |
Формат: | 4:3 |
