Проектор ViewSonic PA504W, DLP, WXGA(1280x800), 22 000:1, 4000 lm, HDMI, RS232, USB

 ViewSonic PA504W

The ViewSonic PA504W is a high-brightness lamp projector tailored for both education and business settings. It features a 1.21-1.57 throw ratio, allowing seamless projector upgrades in typical installation conditions. With 4000 ANSI Lumens, it ensures bright, vivid images even in well-lit environments, guaranteeing clarity for every presentation or lesson. Its Texas Instruments' 0.65” DMD Chip elevates the viewing experience with a high native contrast ratio, unveiling fine details for exceptional sharpness on the screen. Effortlessly switch between content sources via the dual HDMI ports. Additionally, you can combine it with the ViewSonic WPD-700 Wireless Screen Casting Kit, powered by the projector's USB-A output, for expanded versatility. Comprehensive LAN control takes this convenience further, providing streamlined device management. Based on DLP technology, it maintains consistent color performance and great readability over time and features a filter-free design for minimal maintenance requirements.

4,000 ANSI Lumens WXGA Education & Business​ Projector​

• 1.21-1.57 throw ratio enables seamless projector upgrades​
• 4,000 ANSI Lumens offering bright images in any environment​
• Convenient connectivity with dual HDMI and USB-A power supply​
• Comprehensive LAN control for centralized device management​
• High native contrast ratio achieved through Texas Instruments' 0.65" DMD chip​

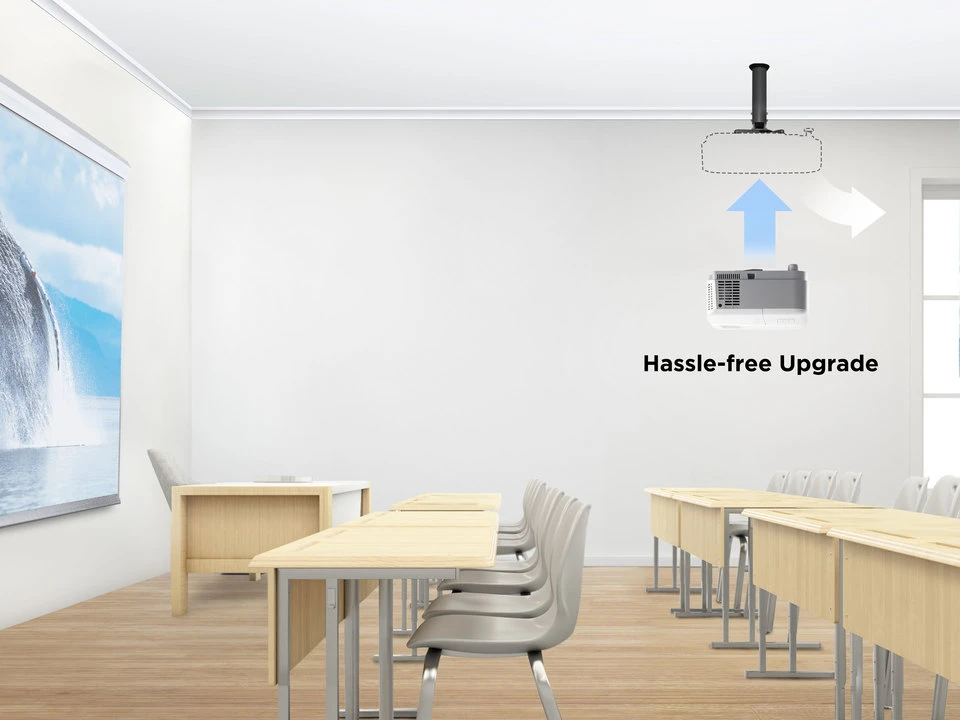

Seamless Projector Upgrades ​

Designed with a 1.21-1.57 throw ratio, the PA504W ensures a seamless installation in classrooms or any meeting room without changing your existing ceiling mount and projector screen settings. Easily replace old projector models with the PA504W without hassle.​

1.21-1.57 Throw Ratio

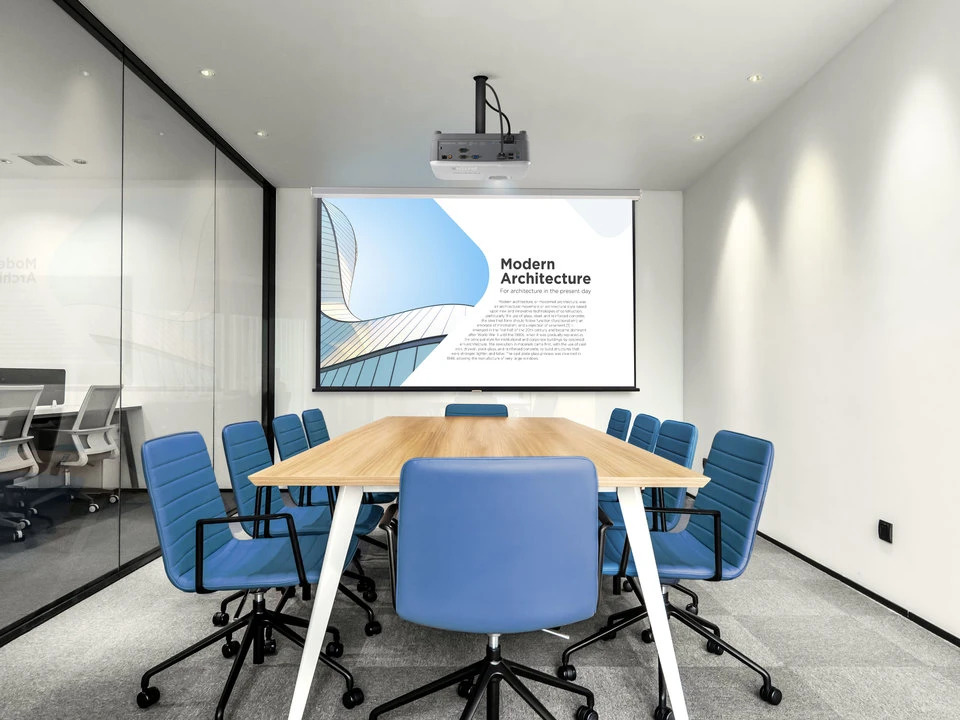

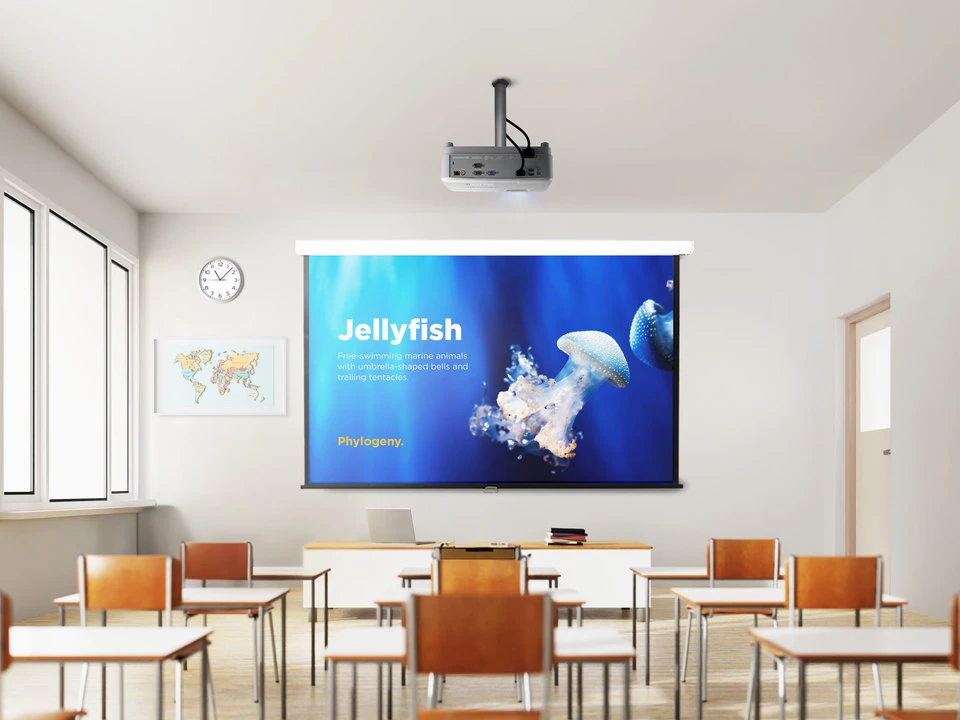

Bright Images for Education & Business Environments

Featuring 4,000 ANSI Lumens brightness, deliver lessons or presentations with clear and vibrant visuals, even in well-lit environments.

4,000 ANSI Lumens

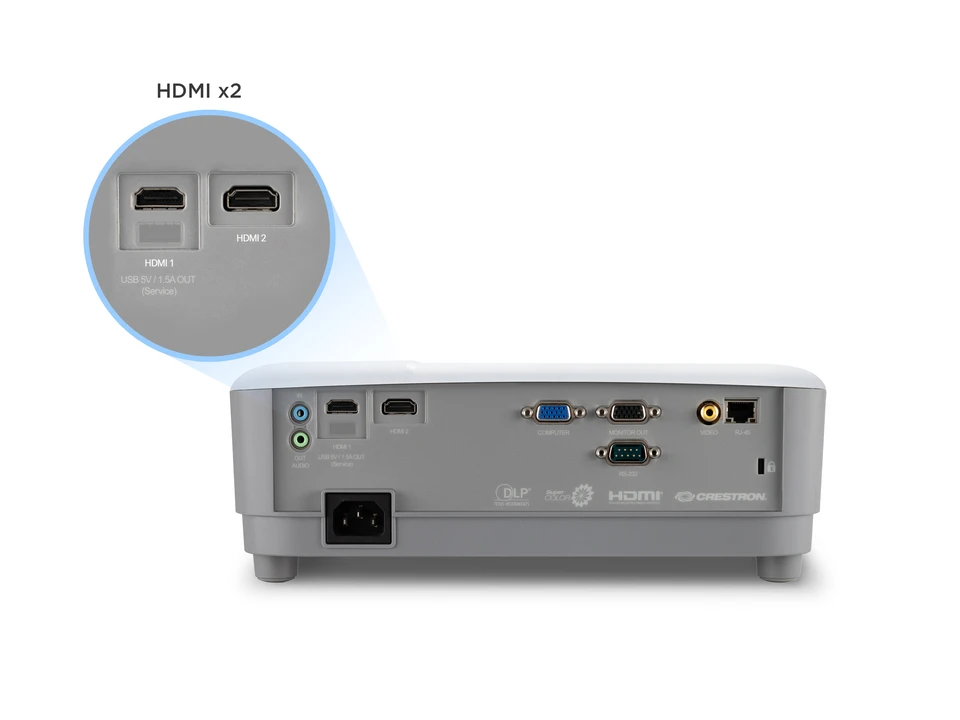

Convenient Multimedia Connectivity ​

The dual HDMI ports provide extensive connectivity to support all your HDMI-enabled multimedia devices. You no longer need to unplug your current device to switch to a new one, simply use the remote control to select and change the input source​.

Dual HDMI Ports

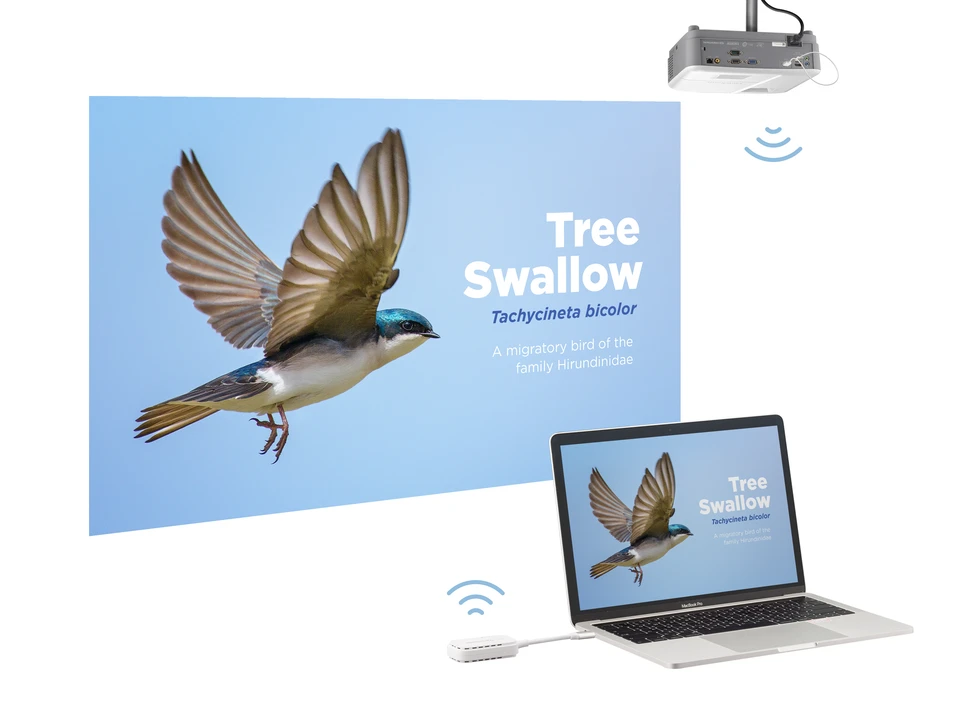

Enable Wireless Content Sharing Capability​​

Enhance your projector with the WPD-700 Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.​

WPD-700, USB-A Power Supply​​​

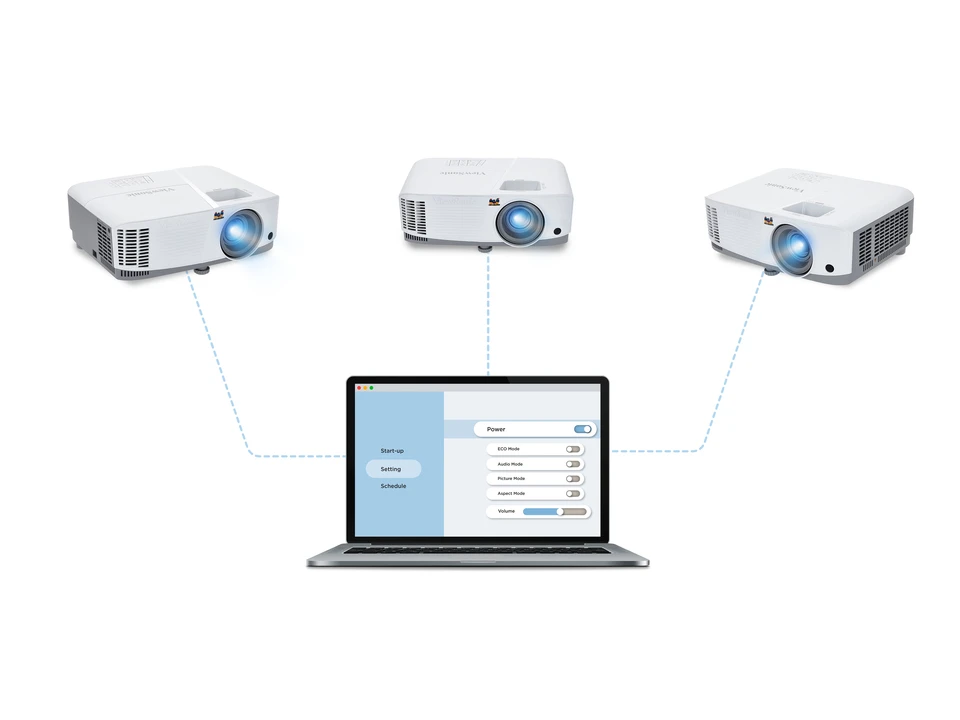

Centralized Control for Efficient Device Management ​

The PA504W is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, enabling centralized device management for enhanced operational efficiency​.​

Comprehensive LAN Control

Unmatched Contrasts, Enhanced Visibility

This projector utilizes the advanced 0.65" DMD chip from Texas Instruments, surpassing the capabilities of the 0.47” standard chip. It offers a high native contrast ratio for deeper blacks, resulting in clearer, more legible images with enhanced visual depth.

0.65” DMD Chip, High Native Contrast Ratio

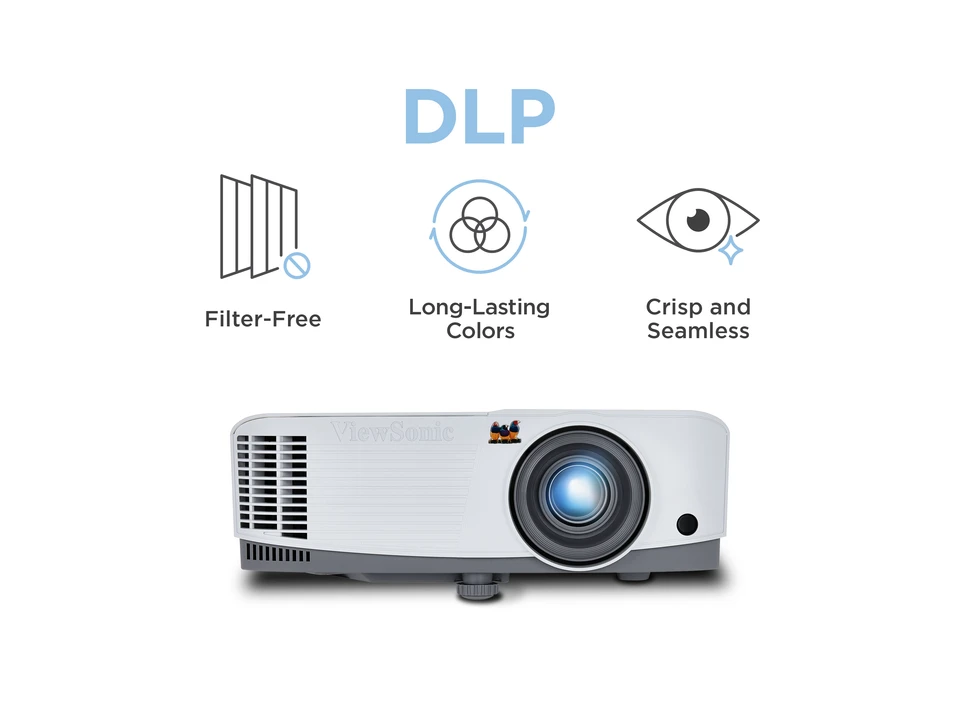

Reliable Long-Term Performance with DLP Projection Technology​

With the DLP technology, the PA504W maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance effort. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.​

Ultra-Large Screen with Lower Cost-per-inch​

This projector can display an image size of up to 300”, boasting an ultra-large screen that ensures visibility in large-audience classrooms or meeting rooms. Importantly, it presents a cost-effective solution with a lower cost-per-inch than alternative displays.​

Up to 300”

SPECIFICATIONS

• Specification

  Projection System: 0.65" WXGA
  Native Resolution: 1280x800
  Brightness: 4000 (ANSI Lumens)
  Contrast Ratio with SuperEco Mode: 22000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: 200W UHP Lamp
  Light Source Life (hours) with Normal Mode: 5000
  Light Source Life (hours) with SuperEco Mode: 15000
  Lens: F=2.59-2.87, f=16.88-21.88mm
  Projection Offset: 120%+/-5%
  Throw Ratio: 1.21-1.57
  Optical Zoom: 1.3x
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.78m-10.14m
  (100"@2.61m)
  Keystone: V:+/-40°
  Audible Noise (Normal): 31dB
  Audible Noise (Eco) : 27dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility: NTSC, PAL, SECAM
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 23-120Hz


• Input

  Computer in (share with component): 1
  Composite: 1
  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm): 1


• Output

  Monitor out: 1
  Audio-out (3.5mm): 1
  Speaker: 10W
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 255W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 2.33kg
  Gross Weight: 3.54kg
  Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
  Packing Dimensions: 415x168x297mm
