Sapphire TOXIC Radeon RX 6900 XT LE
GPU
AMD Radeon™ RX 6900 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2365 MHz
Game Clock: Up to 2135 MHz
One Click TOXIC BOOST Up to 2660 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5120
Infinity Cache
128MB
Ray Accelerators
80
Memory Size/Bus
16GB GDDR6
Memory Clock
BIOS Default: 16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
1x HDMI
3x DisplayPort
BIOS Support
Dual UEFI
Game Index
4K
Sapphire Features
All-In-One Liquid Cooler with 360mm Radiator
Dual BIOS
Max Boost
TriXX Software Switch
Premium Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
Backplate with ARGB
ARGB Fans
ARGB AIO Cooler Fans
Dual Ball Bearing Fans
Hybrid Fan Blade on VRM/Memory Cooling
Integrated VRM/Memory Cooling Module
TriXX Supported
Fan Check
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming
Cooling

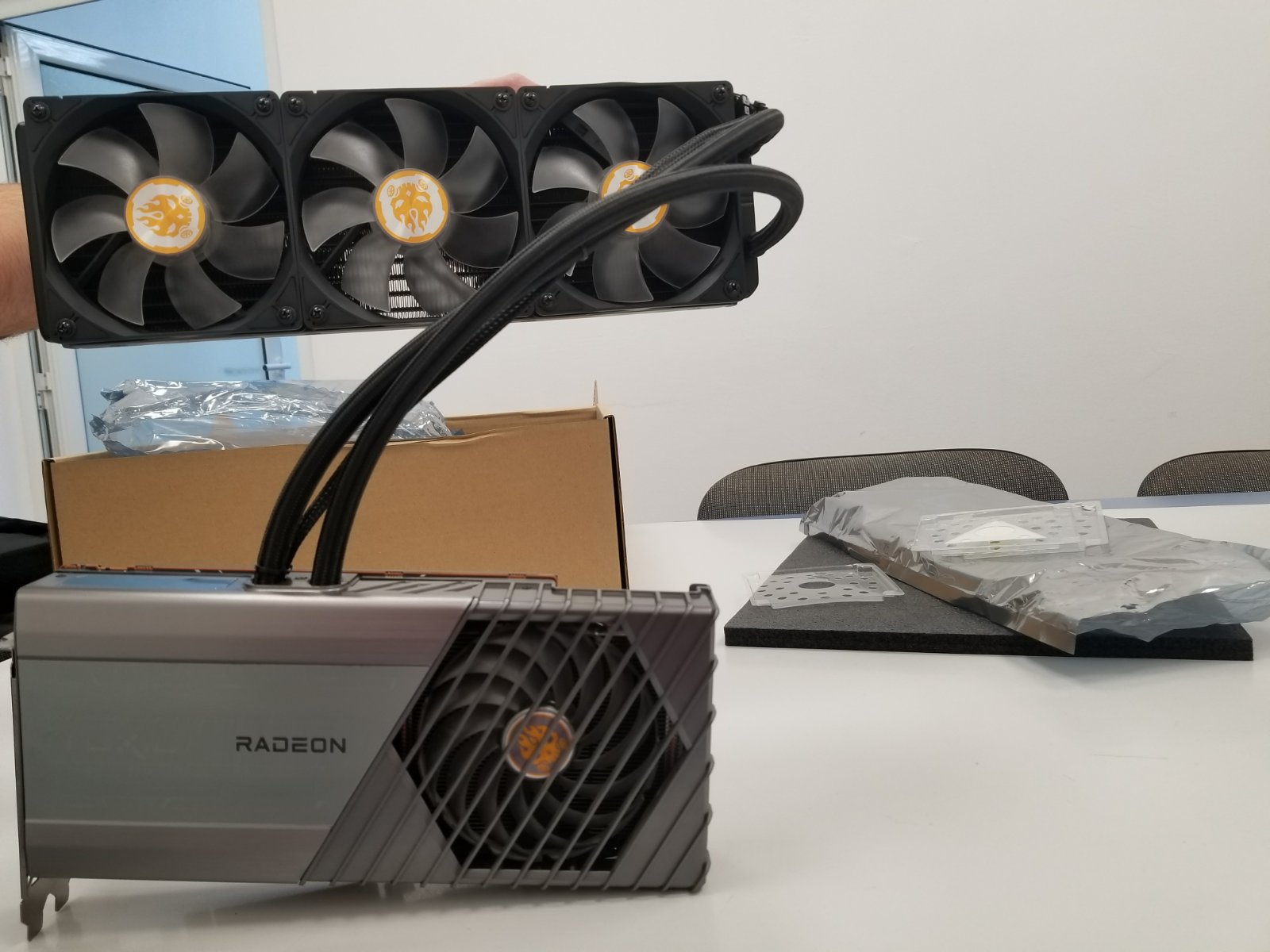

AIO Liquid Cooling with 360 mm radiator
Two-Ball Bearing Fans
Form Factor
2.5 slot, ATX + 360mm Radiator
Board 270(L)x 130(W)x 45 (H)mm
Hex / Radiator 394(L) x 120(W) x 52.5 (H)mm
Standard Rubber Tubing, 470(L)mm
Power Consumption
<400W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 850 Watt Power Supply
2 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
