Видео карта AMD Radeon RX 7700 XT, 12GB, Sapphire Pure, PCI-E 4.0, GDDR6, 192-bit, DisplayPort, HDMI

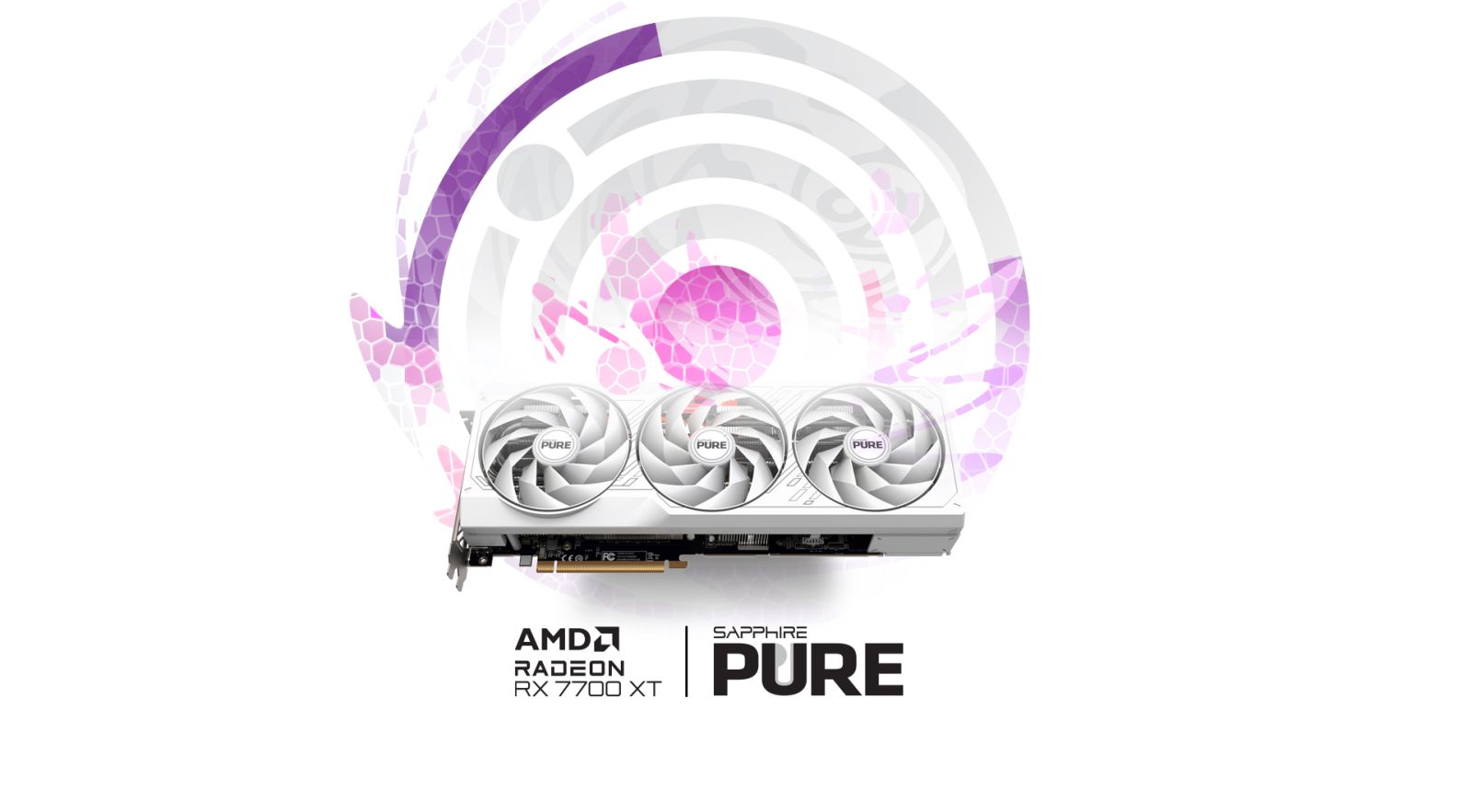

Sapphire PURE AMD Radeon RX 7700 XT 12GB

	12GB of GDDR6 memory   AMD Radiance Display Engine   DisplayPort 2.1   AMD FidelityFX Super Resolution   AMD Radeon Super Resolution   1440P and Beyond
Digital Power Design   SAPPHIRE PURE AMD Radeon RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency

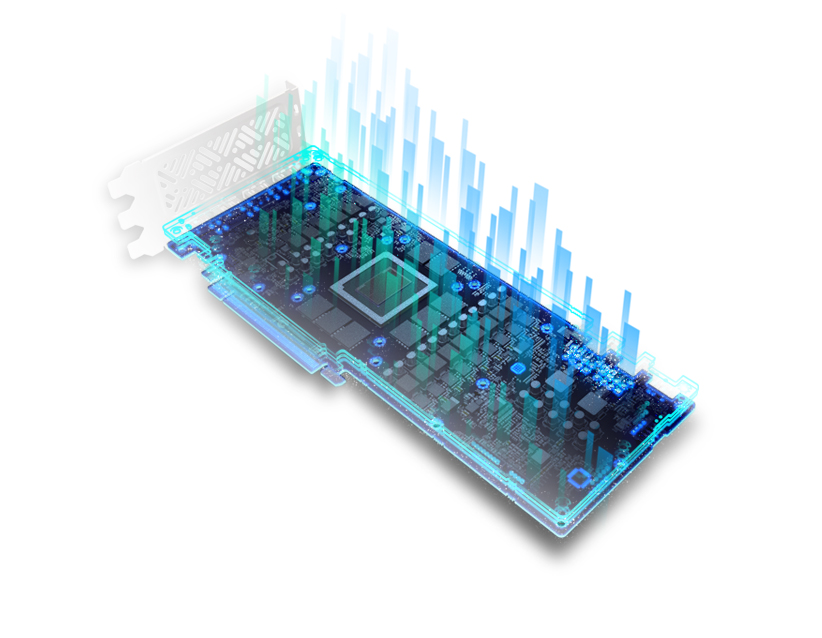

	High TG Copper PCB   The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

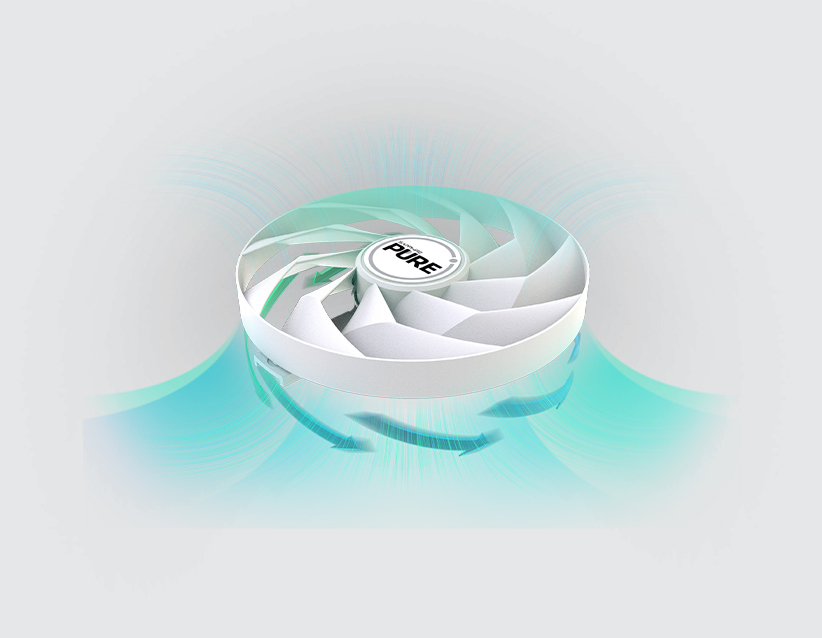

Angular Velocity Fan Blade   The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

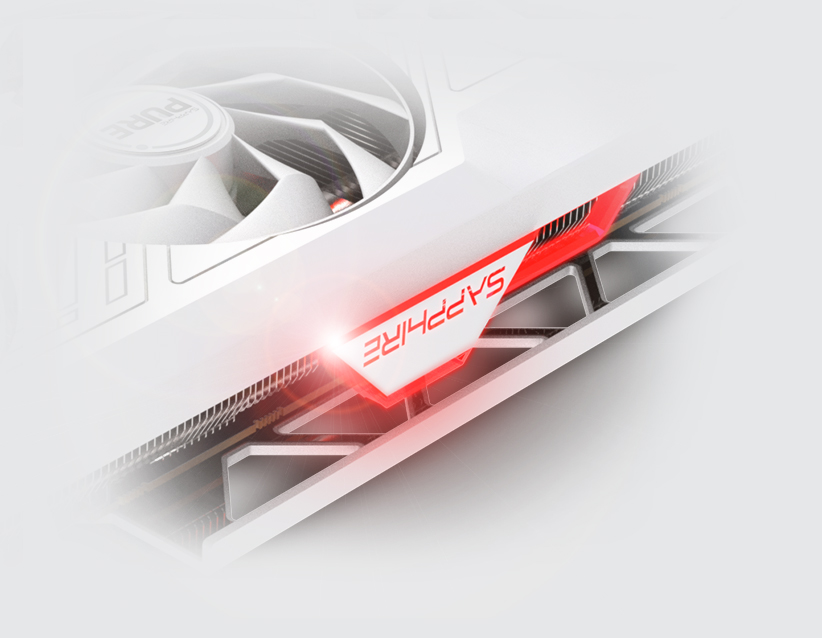

	Red LED SAPPHIRE Logo   Finishing off the beautiful look of these cards are the chic grey accents etched onto the exterior along with a Red LED SAPPHIRE logo with a hardware switch to turn the red lighting on and off at will.

Specs:

GPU

AMD Radeon RX 7700 XT Graphics Card
5nm GPU
AMD RDNA 3 Architecture

Engine Clock

• Boost Clock: Up to 2584 MHz
• Game Clock: Up to 2226MHz

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• UEFI

Game Index

1440P

Sapphire Features

• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Red LED SAPPHIRE Logo
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA 3 Architecture
• 54 AMD RDNA 3 Compute Units
• 48MB AMD Infinity Cache Technology
• DisplayPort 2.1 Support
• AMD Radiance Display Engine
• 12GB GDDR6 on 192-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync Technology

Cooling

3 Fans

Form Factor

2.5 slot, ATX


Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

240W Total Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
