Видео карта AMD Radeon RX 7800 XT, 16GB, Sapphire Nitro+, PCI-E 4.0, GDDR6, 256-bit, DisplayPort, HDMI

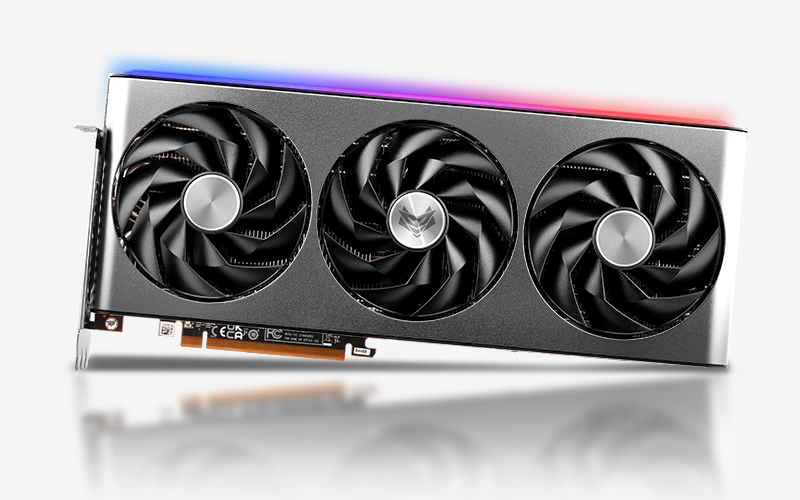

AMD Radeon RX 7800 XT Sapphire Nitro+

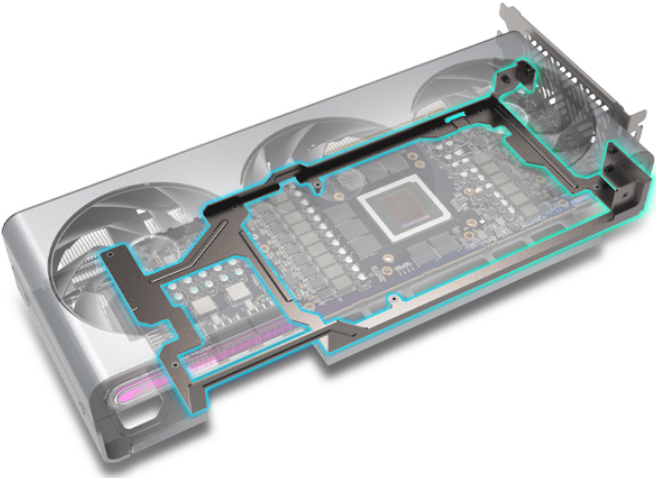

Cold Rolled Steel Frame Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 7800 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.

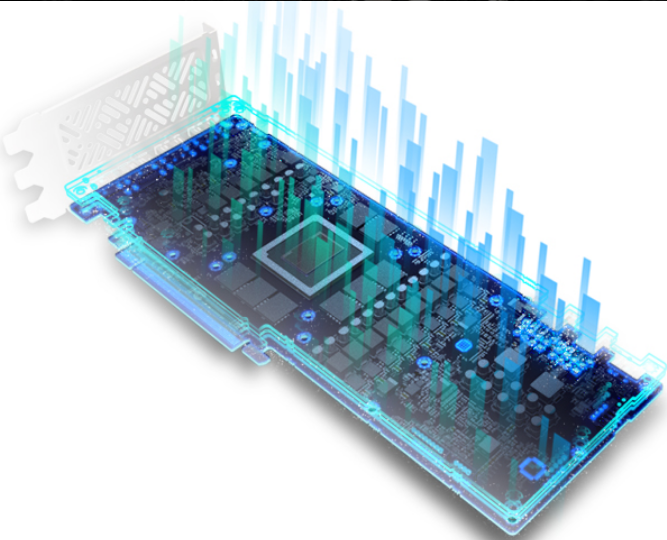

High TG Copper PCB The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

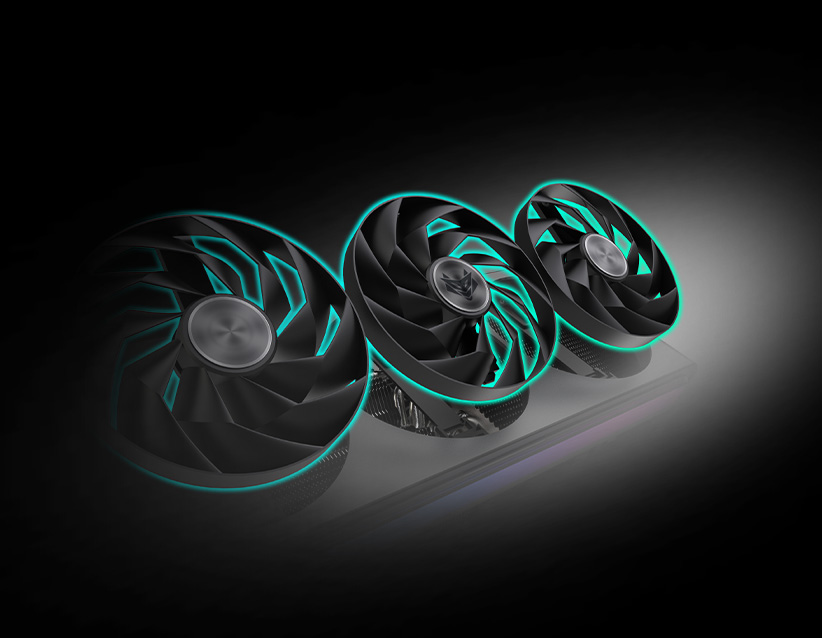

Fan Quick Connect If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.

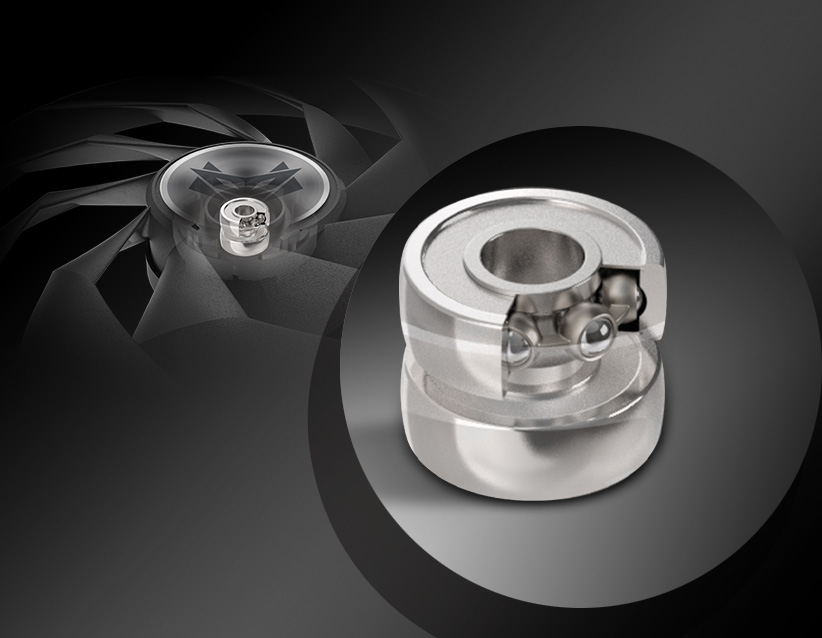

Two-Ball Bearing These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Specifications

GPU

AMD Radeon RX 7800 XT Graphics Card 5nm GPU
AMD RDNA 3 Architecture

Engine Clock

• Boost Clock: Up to 2565 MHz
• Game Clock: Up to 2254MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3840

Compute Units

60 CU (with RT+AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

60

Memory Size/Bus

16GB / 256-bit GDDR6

Memory Clock

19.5 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

Game Index

4K

Sapphire Features

• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Cold Rolled Steel Frame
• Dedicated VRM Cooling
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

AMD Features

• AMD RDNA™ 3 Architecture
• 60 AMD RDNA™ 3 Compute Units
• 64MB AMD Infinity Cache™ Technology
• DisplayPort™ 2.1 Support
• AMD Radiance Display™ Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ Super Resolution technology
• Microsoft DirectX® 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon™ Super Resolution technology
• AMD Link
• AMD FreeSync™ Technology

Cooler Type

3 Fans

Form Factor

3 slot, ATX
Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

Power Consumption

288W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
