MSI MPG Z790 EDGE TI MAX WIFI
![](/images/custom/site/MSI%20MPG%20Z790%20EDGE%20TI%20MAX%20WIFI%20mdesc%201.png)

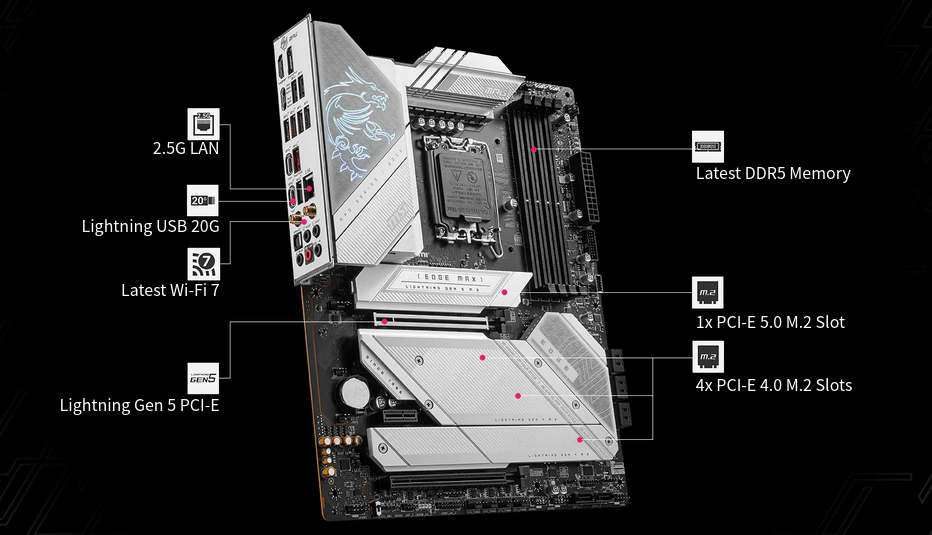

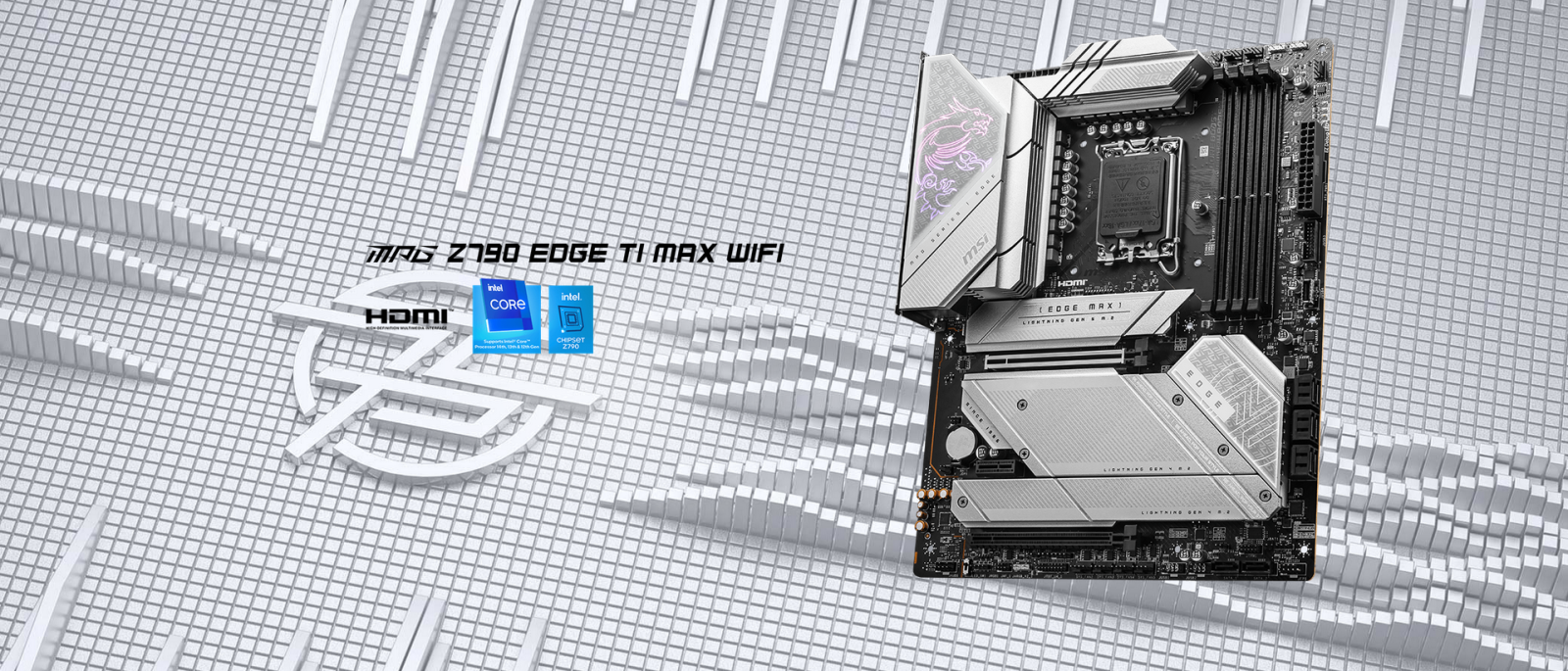

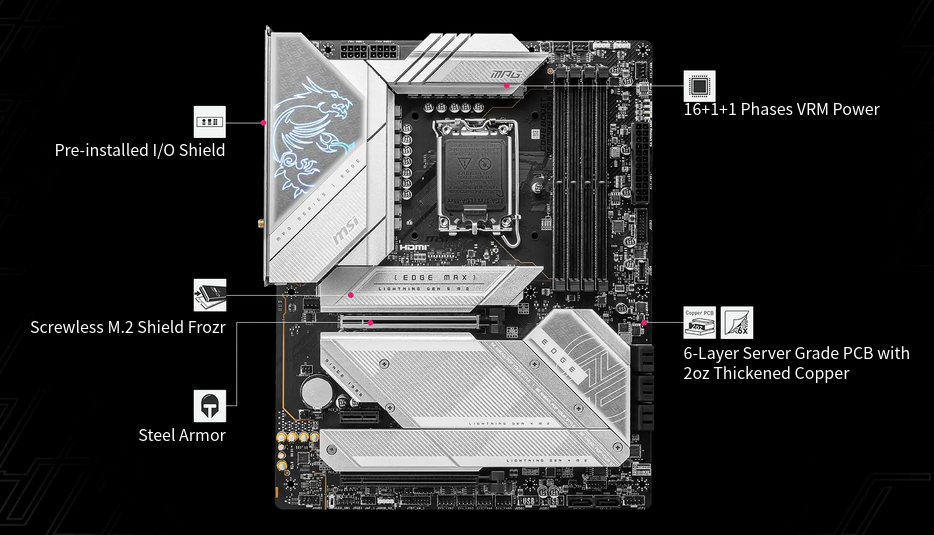

MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, and this is the best white Z790 ATX motherboard for Intel® 14th Gen and 13th Gen Core processors.
![](/images/custom/site/MSI%20MPG%20Z790%20EDGE%20TI%20MAX%20WIFI%20mdesc%202.png)
![](/images/custom/site/MSI%20MPG%20Z790%20EDGE%20TI%20MAX%20WIFI%20mdesc%203.png)
Tech specs:
Chipset | INTEL Z790 |
CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Onboard Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot. * SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Intel 2.5Gbps LAN |
WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
LED FEATURE | 4x EZ Debug LED 1x EZ LED Control switch |

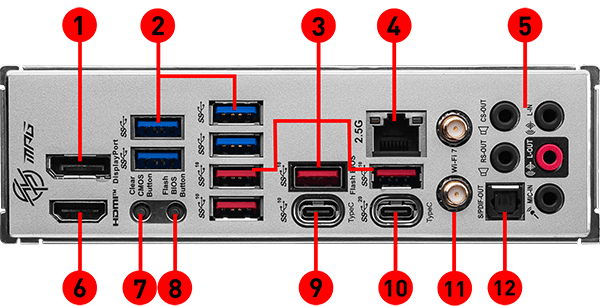

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
PCB Info | ATX 243.84mmx304.8mm |
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1700 |
---|---|
Чипсет: | Z790 |
Поддържана памет: | DDR5 |
Брой слотове за RAM памет: | 4 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | 802.11be |
Bluetooth: | Да |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | DP HDMI |
Форм фактор: | ATX |
