H610M-H2/M.2 D5
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front) - Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Digi Power

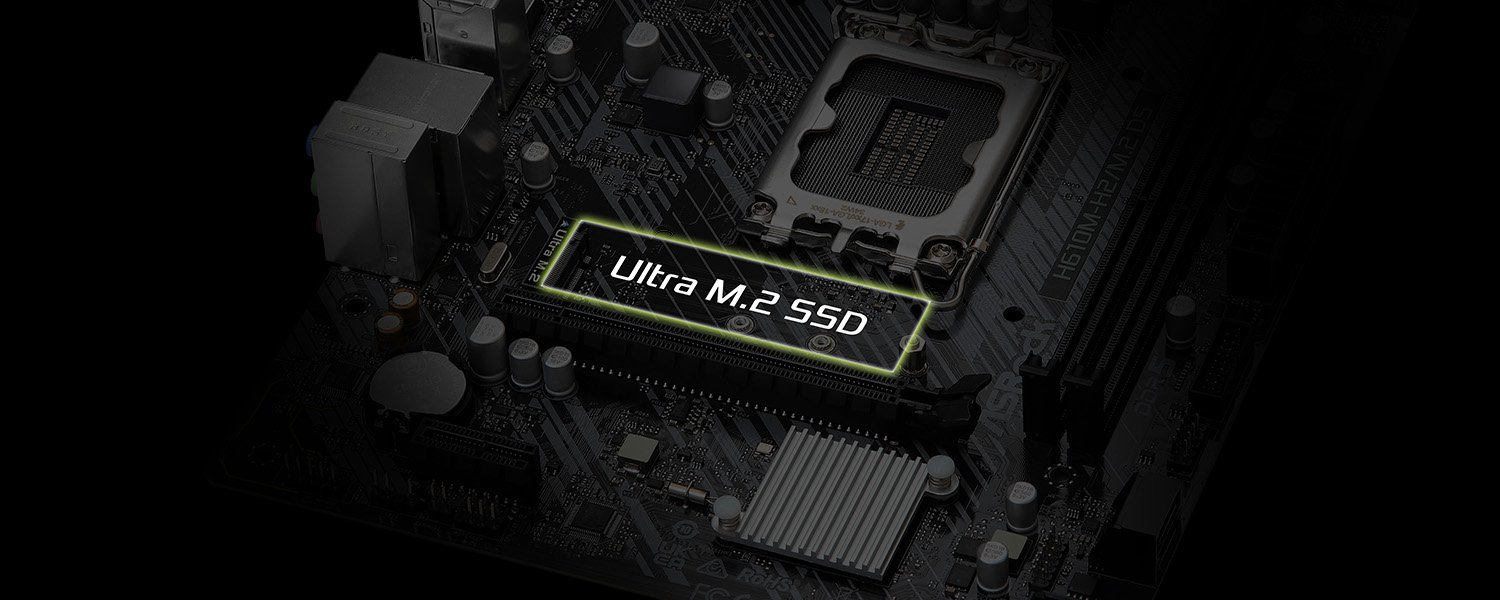

Ultra M.2 32Gb/s (PCIe Gen3 x4)
Dual HDMI Outputs
HDMI 4k @60Hz
Specifications:
-
Unique FeatureSuperb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 3+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer -
CPU- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology -
Chipset- Intel® H610
-
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600
- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0Actual support may vary by CPU -
BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
-
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60HzIntel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-
LAN- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H -
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)Supports NVMe SSD as boot disks -
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
- 4 x SATA3 6.0 Gb/s ConnectorsSupports NVMe SSD as boot disks -
USB
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)All USB ports support ESD Protection -
Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)e.CPU_FAN1 supports the fan power up to 1A (12W).
CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in us -
Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant FlashThese utilities can be downloaded from ASRock Live Update & APP Shop. -
Accessories- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket -
Form Factor- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
-
OS- Microsoft® Windows® 10 64-bit / 11 64-bit
-
Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | H610 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI |
| Форм фактор: | Micro ATX |
