Name: Дънна платка Asus ProArt Z790-CREATOR, Z790, LGA1700, DDR5, PCIe 5.0 (DisplayPort&HDMI), 4x M.2, 8x SATA 6Gb/s, 2x USB Type-C, 6x USB 3.2 Gen 2 Type-A, Wi-Fi 6E, ATX
Brand: Asus
SKU: MBIASUSPROARTZ790CREATOR
Price: 1131.00 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

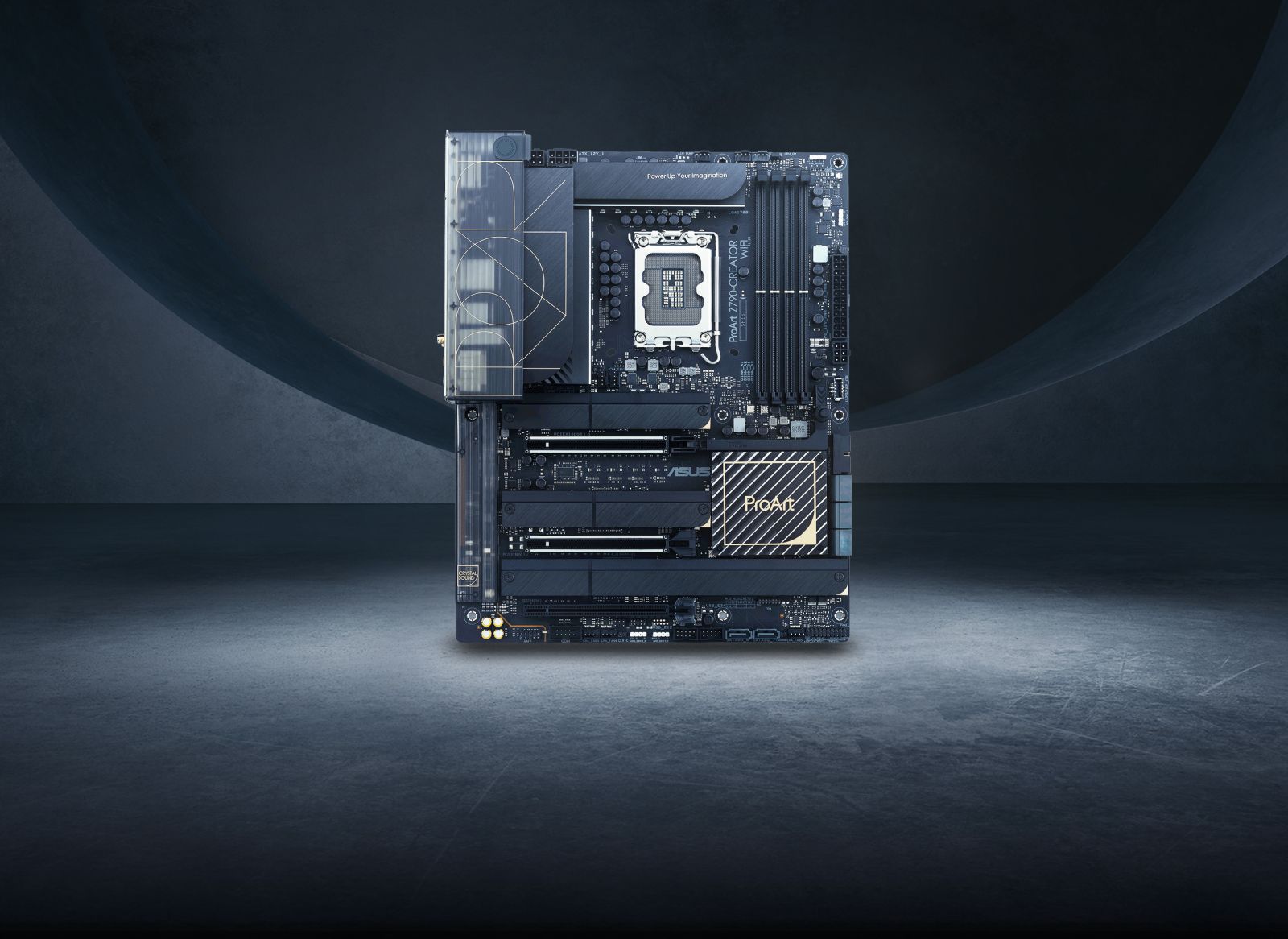

ProArt Z790-Creator WiFi дава възможност на потребители от всички нива, като увеличава максимално производителността на процесорите Intel® Core™ от 13-о и 12-о поколение с 16+1 екипни етапа на захранване, DDR5 и PCIe 5.0 и светкавична свързаност, включително Thunderbolt™ 4 (съвместим с USB4®), 10 Gb и 2,5 Gb Ethernet, както и WiFi 6E.

Тя проявява професионална, елегантна и прецизна визия за създателите на съдържание от всякакъв вид със стил, подчертан от слоеве черни тонове, изпълнени с метални златни щрихи.

Спецификации

CPU

Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® Z790 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem II

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort*** and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support 8K@60Hz as specified in DisplayPort 1.4.
**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel^® 13th & 12th Gen Processors

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)

Intel^® Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*

Intel^® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel^® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
8 x SATA 6Gb/s ports**

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.

Ethernet

1 x Marvell^® AQtion 10Gb Ethernet
1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*

* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 8 ports)

2 x Thunderbolt^™ 4 port(s) (2 x USB Type-C^®) with up to 5V/3A, 15W charging support
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C^® with 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback*

Audio Features

Premium audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

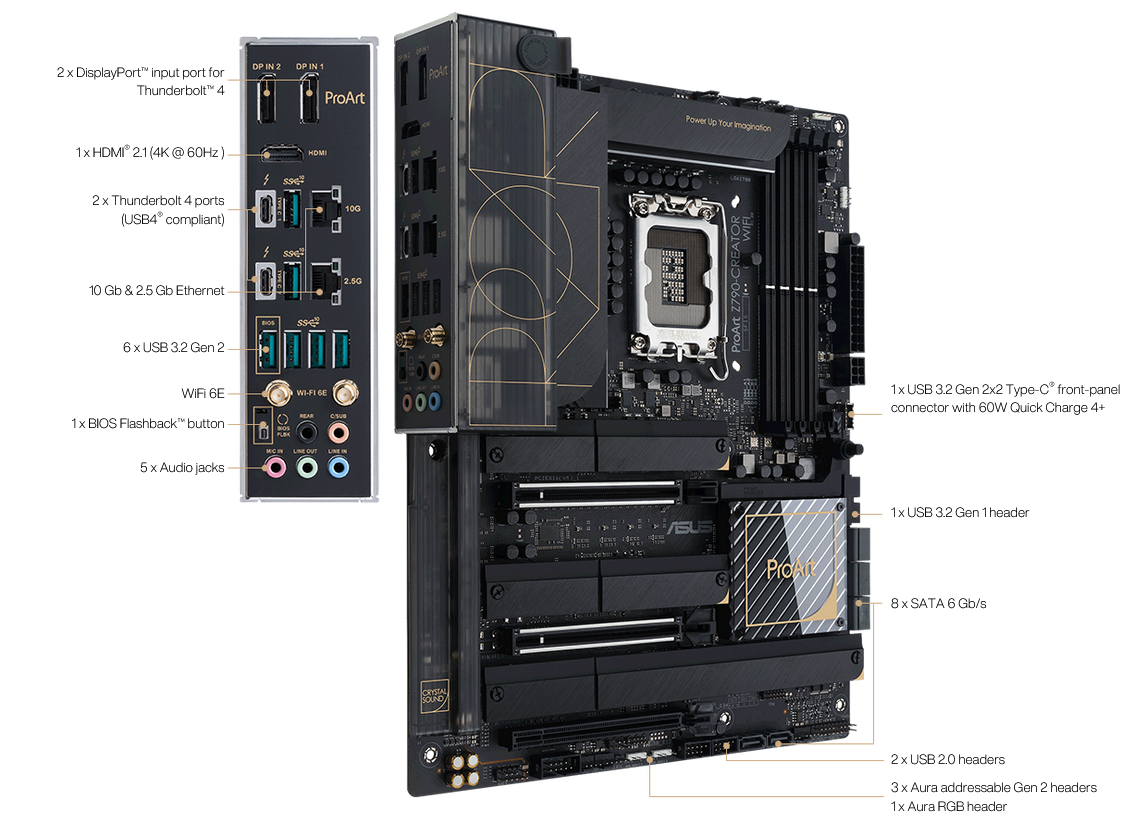

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C^® port(s)
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
2 x DisplayPort (Input only)
1 x HDMI^® port
1 x ASUS Wi-Fi Module
1 x Marvell^® AQtion 10Gb Ethernet port
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack^™ button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)
8 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 (support(s) USB Type-C^®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header

Form Factor

ATX Form Factor (30.5 cm x 24.4 cm)

Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	Z790
Поддържана памет:	DDR5
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	802.11ac
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	ATX
