MSI MPG Z490 CARBON EK X
GAME IN STYLE
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
TMPG Z490 CARBON EK X

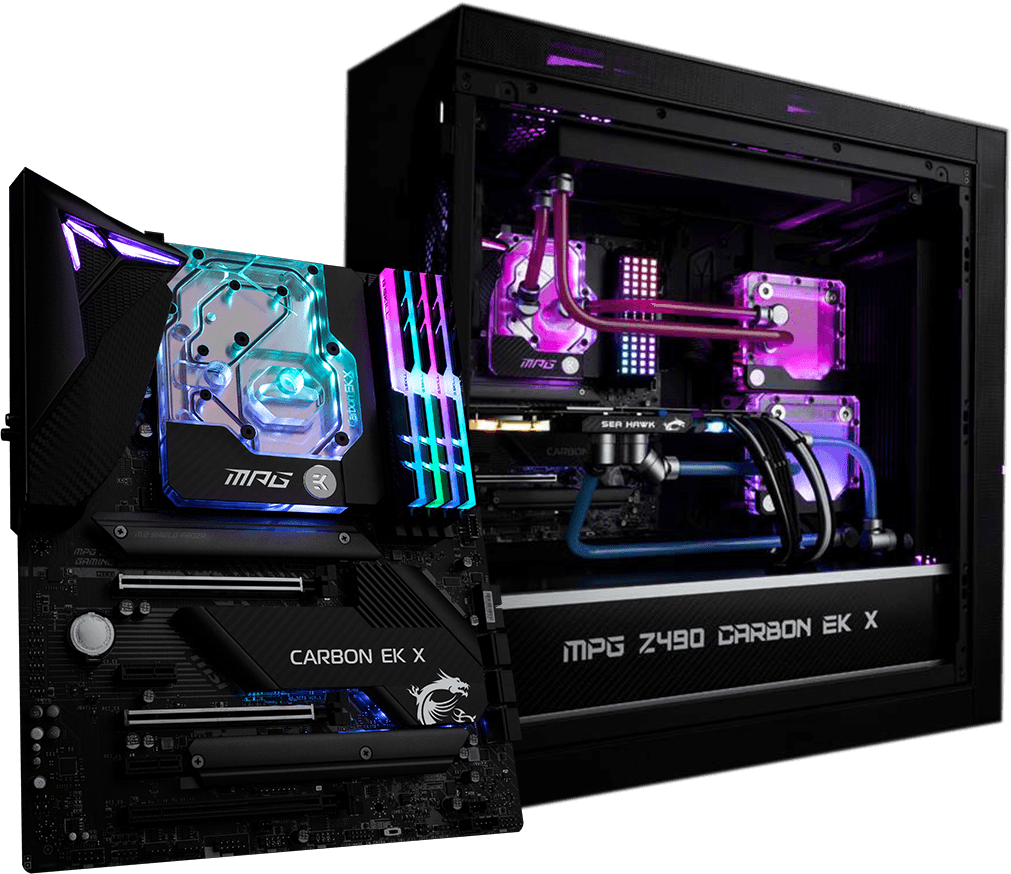

The MPG Z490 CARBON EK X comes with a custom-designed EK cooling solution, a monoblock that aesthetically blends with the motherboard. The iconic carbon fiber and matching engraved design shows its refined quality and distinctive looks. To unleash the high performing for 10th gen Intel core processors, the custom-designed EK cooling solution that offers pristine cooling for both the CPU and VRM power delivery section is used to prevent thermal throttling, allowing gamers to sustain heavy gaming loadings without the noisy environment. It's ready for everything!

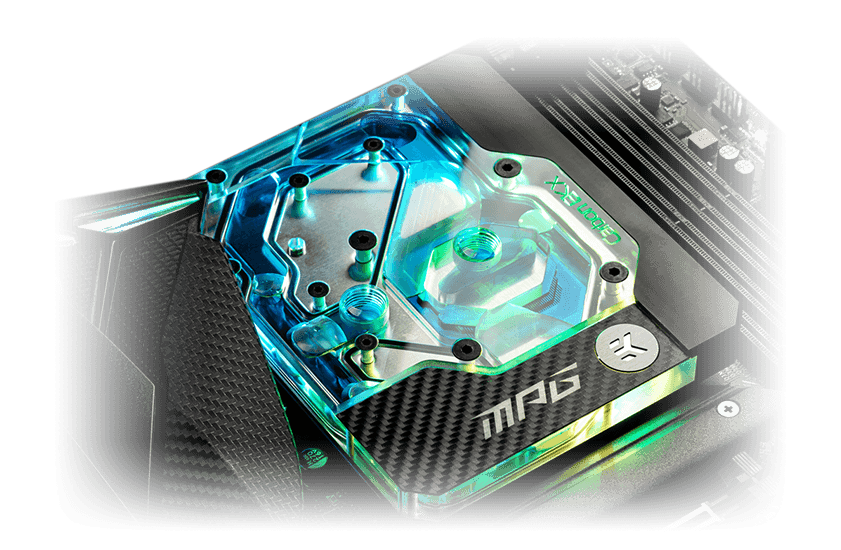

EK CUSTOM-DESIGNED CPU + VRM WATER COOLING
Sustain the high performing for 10th gen Intel core processors, a custom-designed EK cooling solution that offers pristine cooling for both the CPU and VRM power delivery section is used to prevent thermal throttling, allowing gamers to sustain heavy gaming loadings without the noisy environment. It's ready for everything!

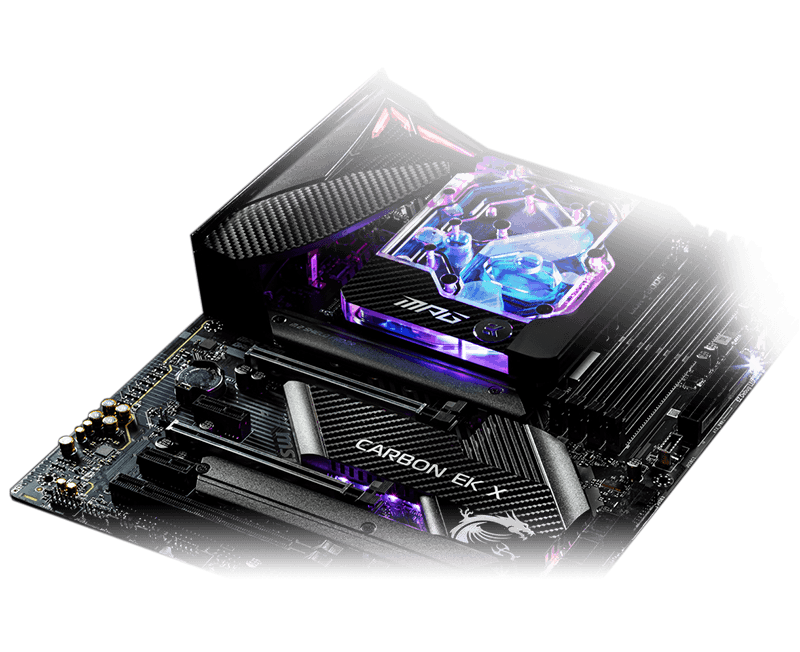

M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

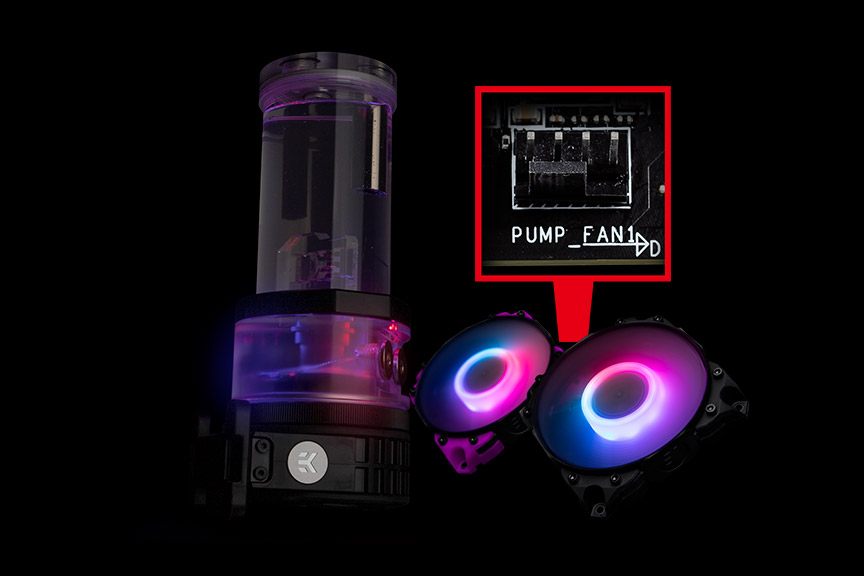

TIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

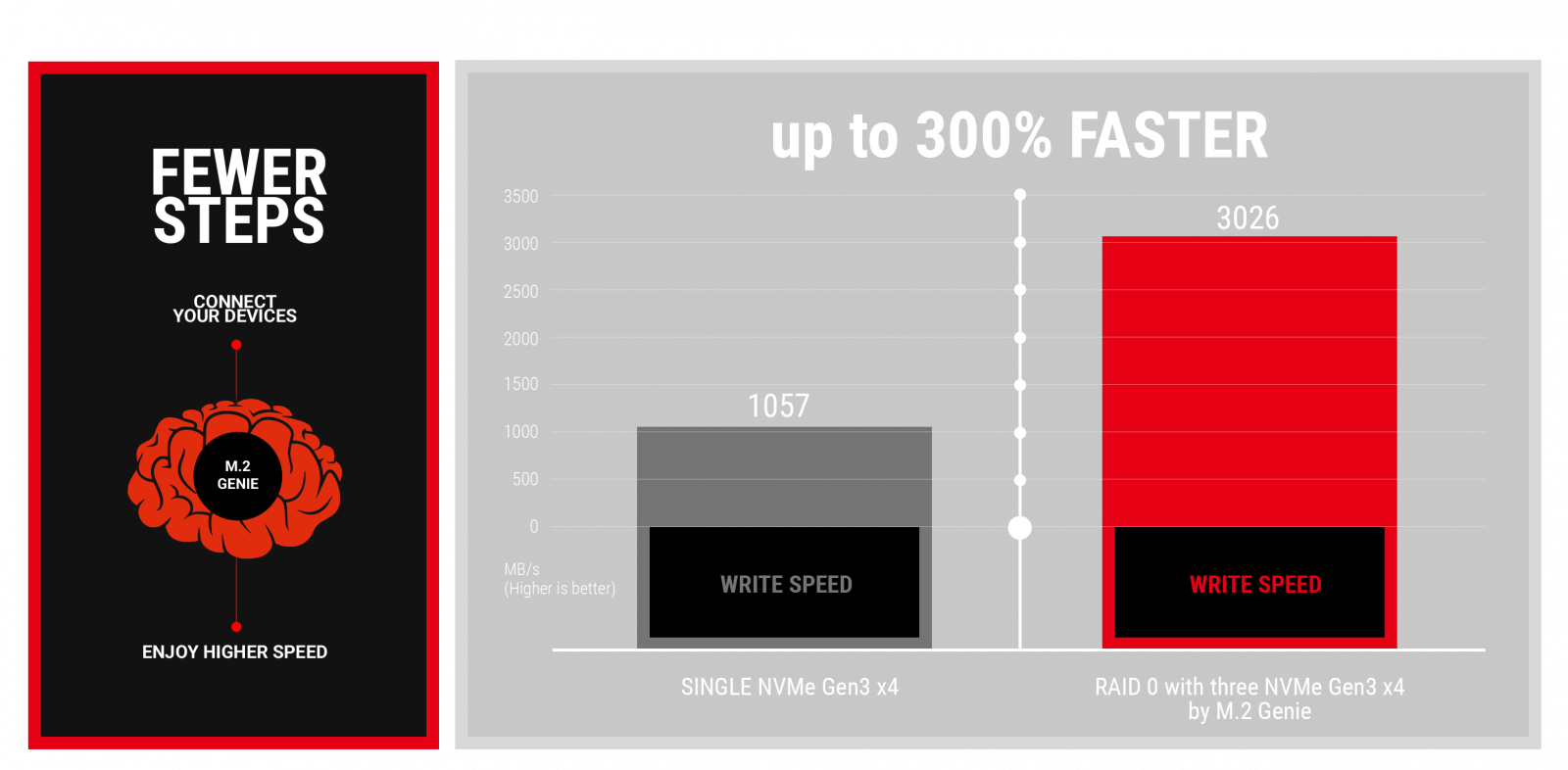

EASY RAID SETUP WITH M.2 GENIE
Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That’s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.
Specifications:
PROCESSOR
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket 1 2 3
- Please go to intel.com for compatibility information.
- Onboard graphics output are disabled when using the F SKU processors.
- BIOS updated to be compatible with 11th Gen Intel® Core™ Processors
CHIPSET
Intel® Z490 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB1
- Supports 1R 2133/2666/2933 MHz1
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4500+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory
EXPANSION SLOTS
- 3x PCIe 3.0 x16 slots*, support x16/ x0/ x4 or x8/ x8/ x4 mode
- 2x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
- 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
- 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
- Maximum shared memory is 1GB
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z490 Chipset
- SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z490 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
- 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM3241 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps port on the back panel
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Realtek® RTL8125B 2.5Gbps LAN controller
WIFI & BLUETOOTH
Intel® AX201
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- WiFi 6 Pre-Certified
- Supports Bluetooth® 5.1 , FIPS, FISMA
- The Wireless module is pre-install in the M2 (Key-E) slot
- Only support windows 10 64-bit
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
- 1x Serial port connector
- 1xTPM module connector
- 1x TBT connector*
- 1x RTD3 connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- PS/2 Combo Port
- DisplayPort
- USB 3.2 Gen 2 10Gbps (Type-A)
- LAN Port
- HD Audio Connectors
- USB 2.0
- HDMI Port
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- USB 3.2 Gen 2 10Gbps (Type-A)
- Wi-Fi / Bluetooth
- Optical S/PDIF OUT
DIMENSIONS
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | Z490 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | CrossFire & SLI |
| Видео изход: | DP HDMI |
| Форм фактор: | ATX |
