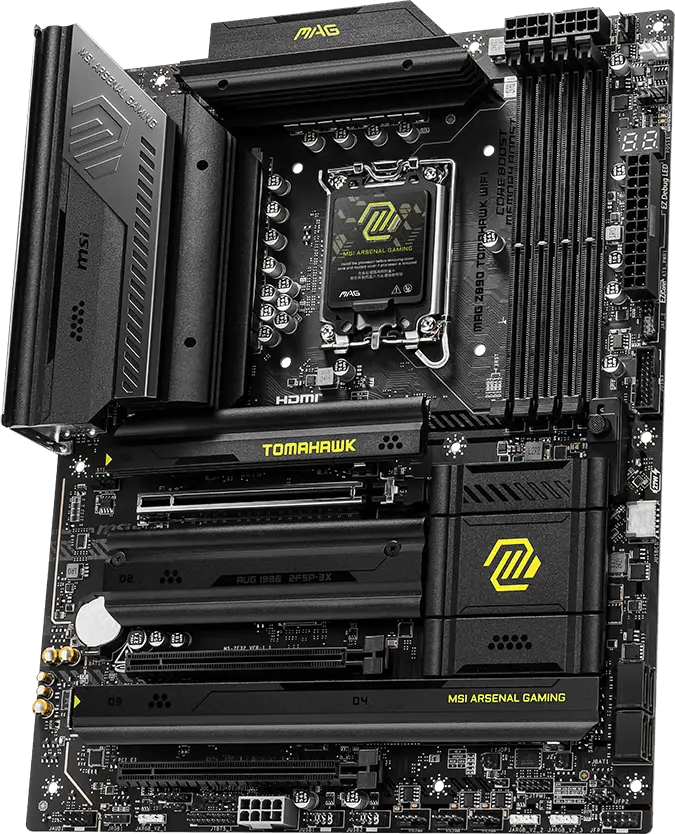

Дънна платка MSI MAG Z890 TOMAHAWK WIFI, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&HDMI), 4x SATA 6Gb/s, 1x Type-C 3.2 Gen2, 5G LAN, Wi-Fi 7, Bluetooth 5.4, ATX

MAG Z890 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

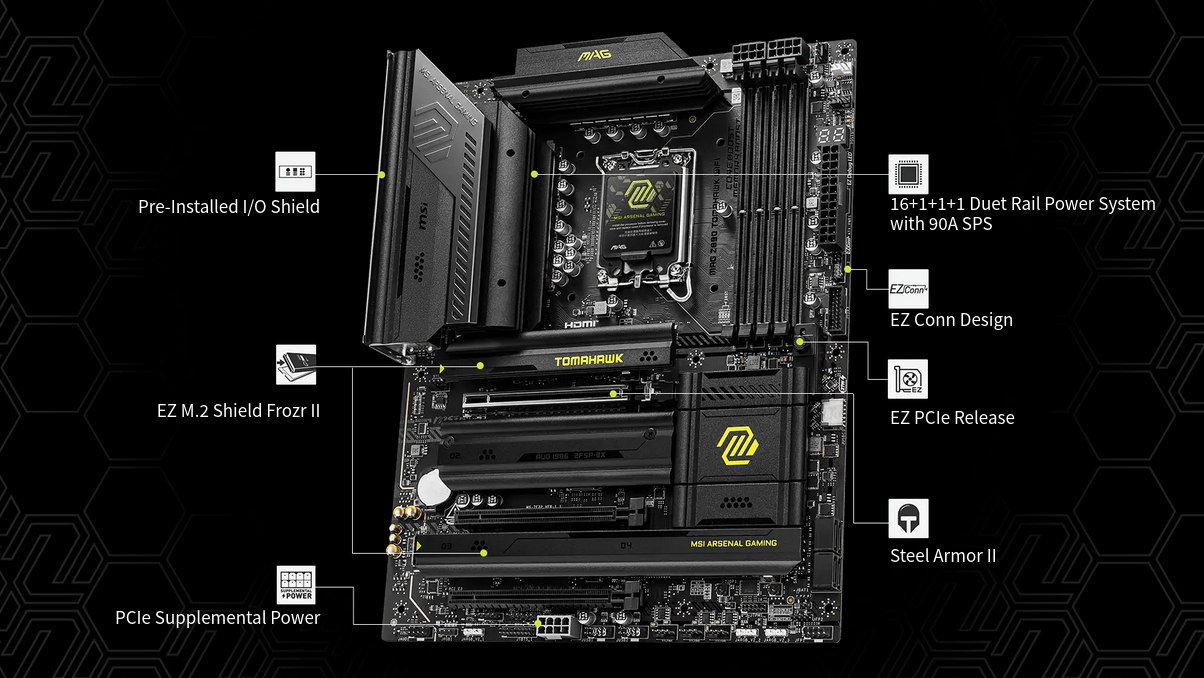

• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.

However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.

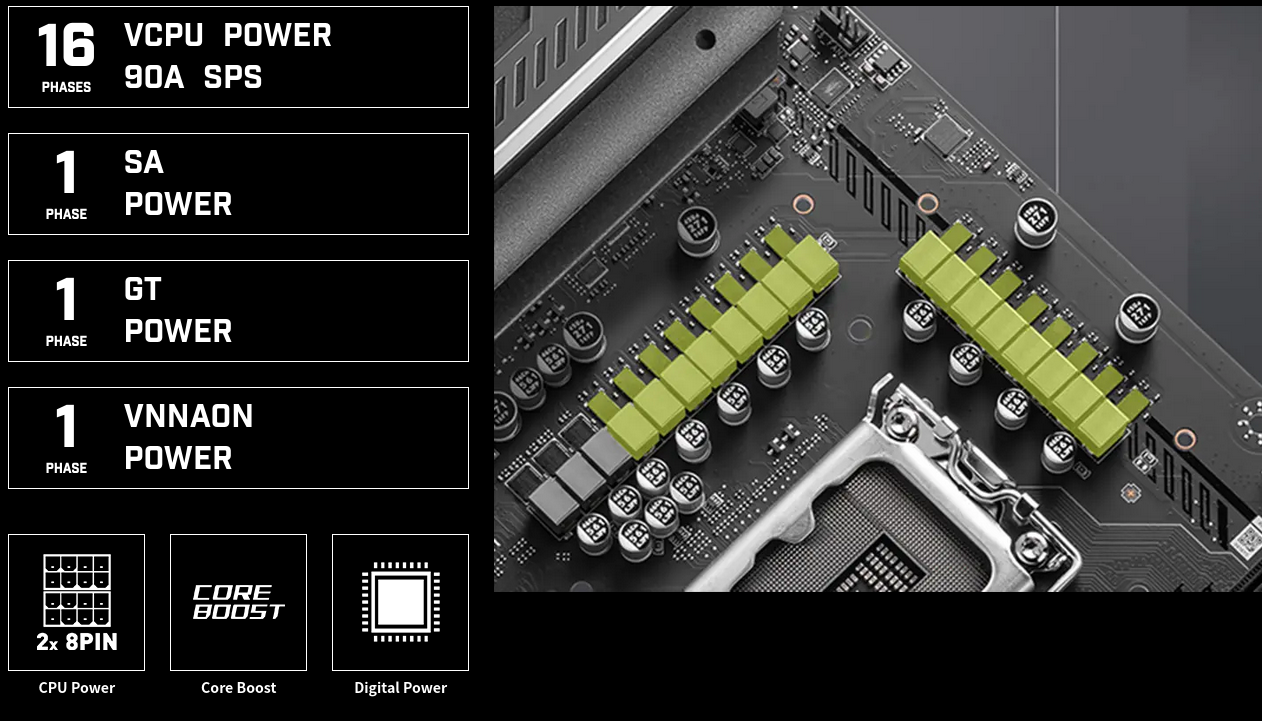

16+1+1+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

Specifications:

Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)  PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices  4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	Intel® Killer™ E5000 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM  * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

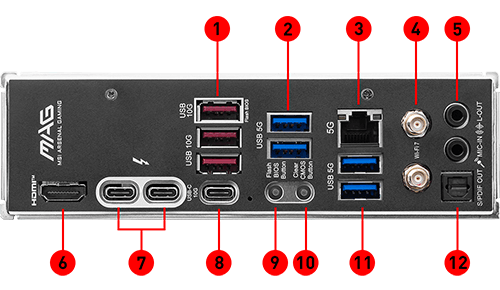

BACK PANEL PORTS	USB 10Gbps Type-A USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 10Gbps Type-C Flash BIOS Button Clear CMOS Button USB 5Gbps Type-A S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit
