MSI B760M GAMING PLUS WIFI 911-7D99-017
НазадMSI B760M GAMING PLUS WIFI 911-7D99-017MSI B760M GAMING PLUS WIFI 911-7D99-017MSI B760M GAMING PLUS WIFI 911-7D99-017MSI B760M GAMING PLUS WIFI 911-7D99-017Напред

Дънна платка MSI B760M GAMING PLUS WIFI, B760, LGA1700, PCI-E 4.0 (DP&HDMI), 2x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN, Micro ATX

id 268516 Код: MBIMSI9117D99017
  • Безплатна доставка
324.37 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / Въпроси

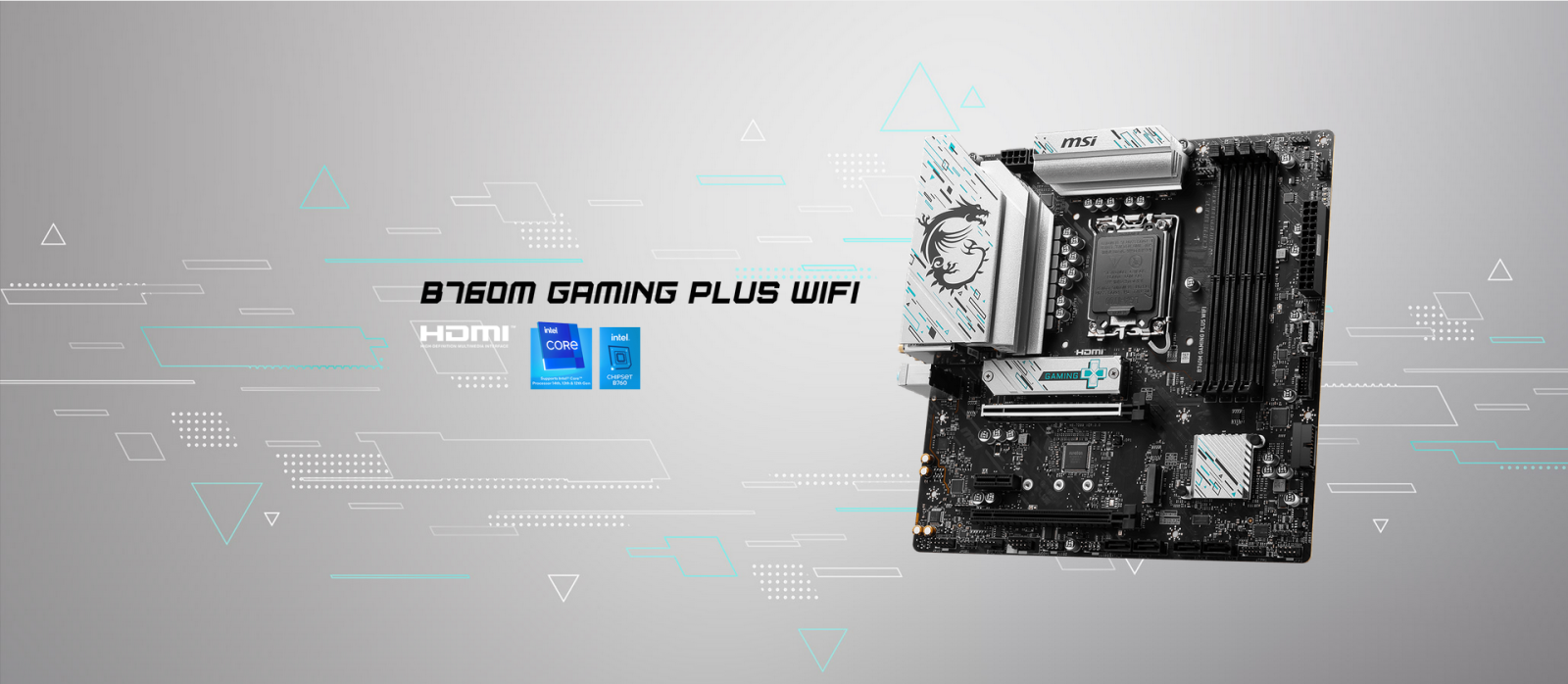

MSI B760M GAMING PLUS WIFI





B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.







Tech specs:

ChipsetINTEL B760

CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron Processors
LGA 1700

Memory4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics2x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)

LANRealtek RTL8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTHIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio

Internal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

LED FEATURE4x EZ Debug LED

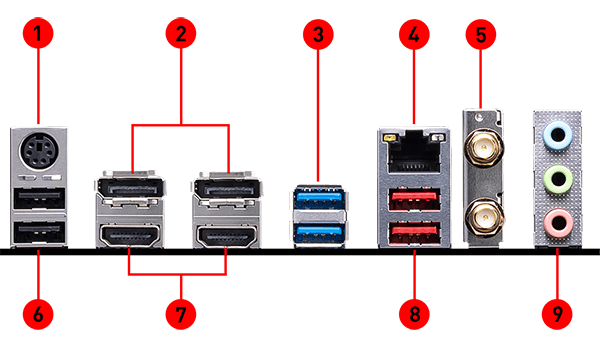

BACK PANEL PORTS
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. USB 2.0
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. Audio Connectors




OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit

PCB InfomATX
243.84mmx243.84mm




Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет:  LGA 1700
Чипсет:  B760
Поддържана памет:  DDR5
Брой слотове за RAM памет:  4
Storage интерфейси:  SATA 6Gbit/s, M.2
RAID:  Да
Безжични мрежи:  802.11ax
Bluetooth:  Да
Видео слот:  PCI-E
Multi-Graphics технология:  Няма
Видео изход:  DP HDMI
Форм фактор:  Micro ATX
