Дънна платка MSI MAG B660M MORTAR DDR4, B660, LGA 1700, DDR4, PCI-E 4.0, (DP&HDMI)(CF), 6x SATA 6Gb/s, 2x M.2, 1x USB-C 3.2 Gen 2x2, mATX







MSI MAG B660M MORTAR DDR4

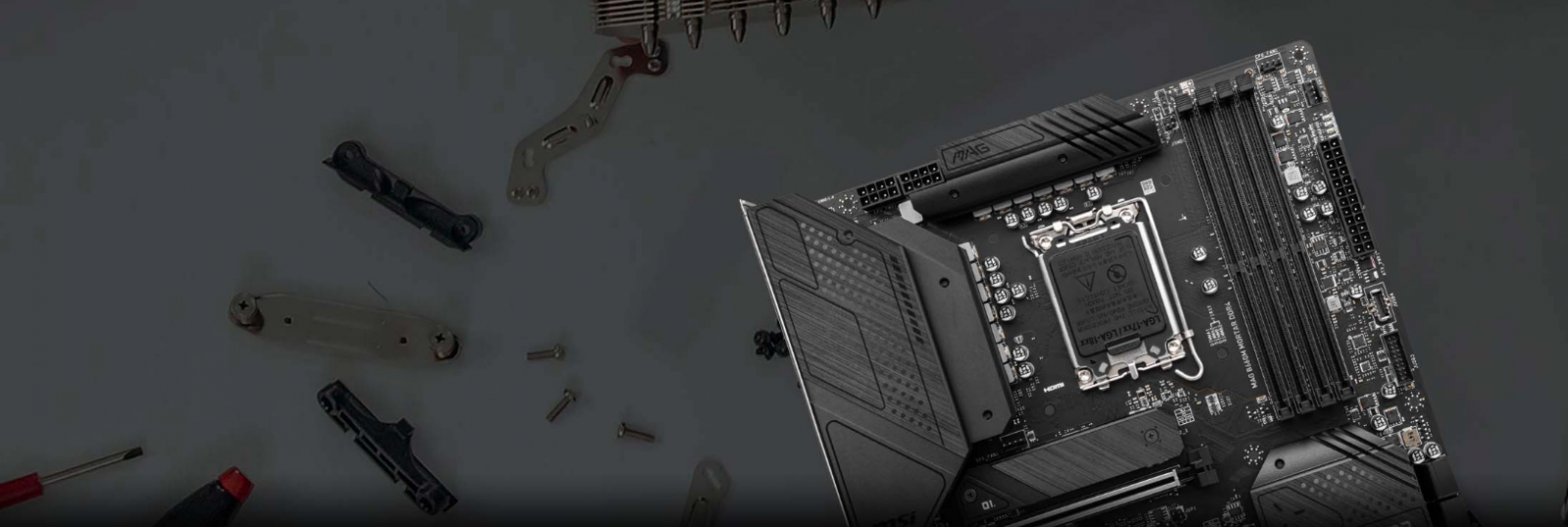

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.











THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.











ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.









CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.













Specifications:

• CPU (Max Support): i9
• Socket: 1700
• Chipset: Intel B660 Chipset
• DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E x1: 1
• SATAIII: 6
• M.2 Slot: 2
• RAID: 0/1/5/10
• LAN: 1x Realtek 8125BG 2.5G LAN
• USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2x2, Type C), 3(Gen 2, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4
• Audio ports (Rear): Realtek® ALC1200
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: mATX
• CrossFire: Y
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
