H510M PRO
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

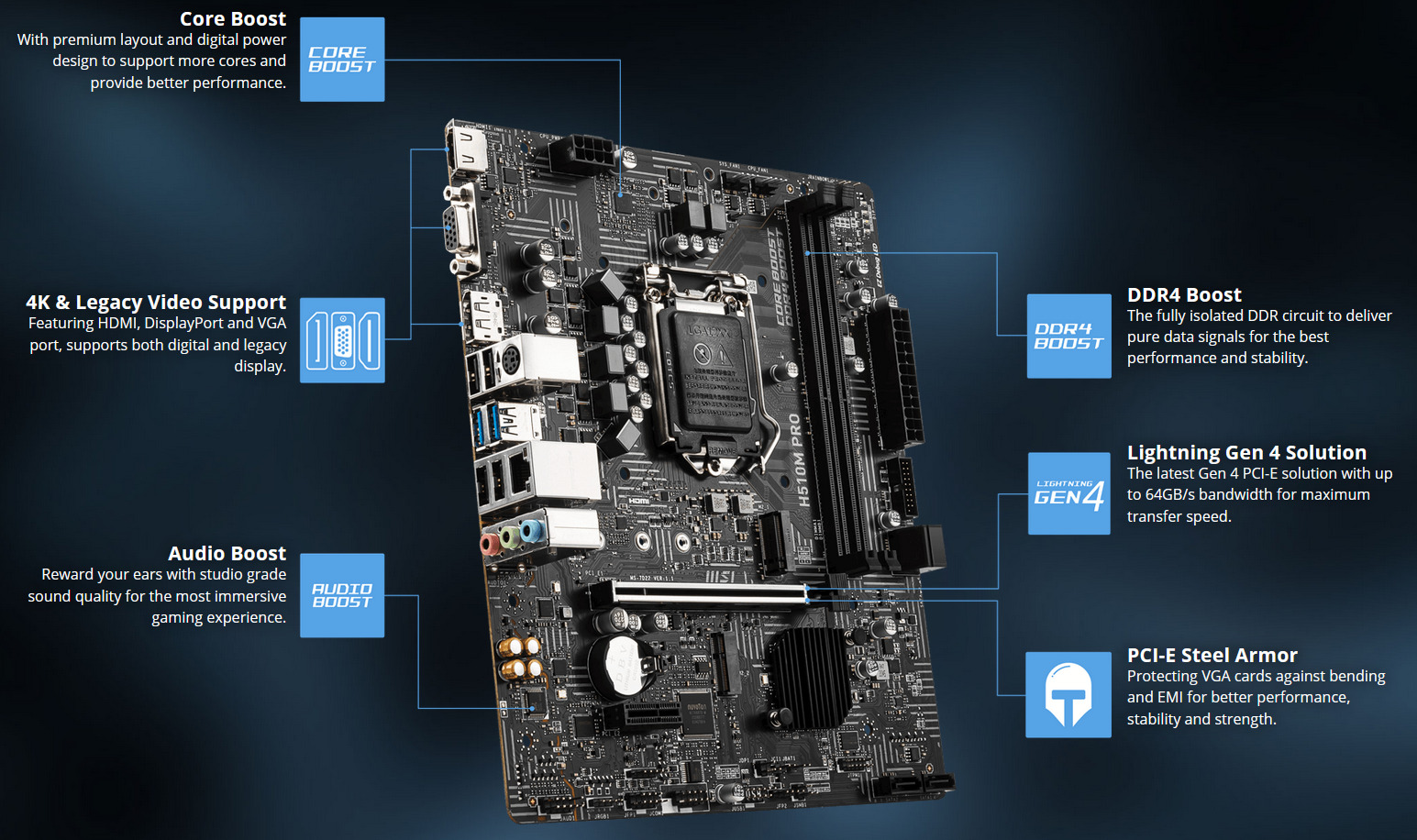

![](/images/custom/site/Untitled(4)(1).jpg)
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 3200(Max) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience: PCIe 4.0
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

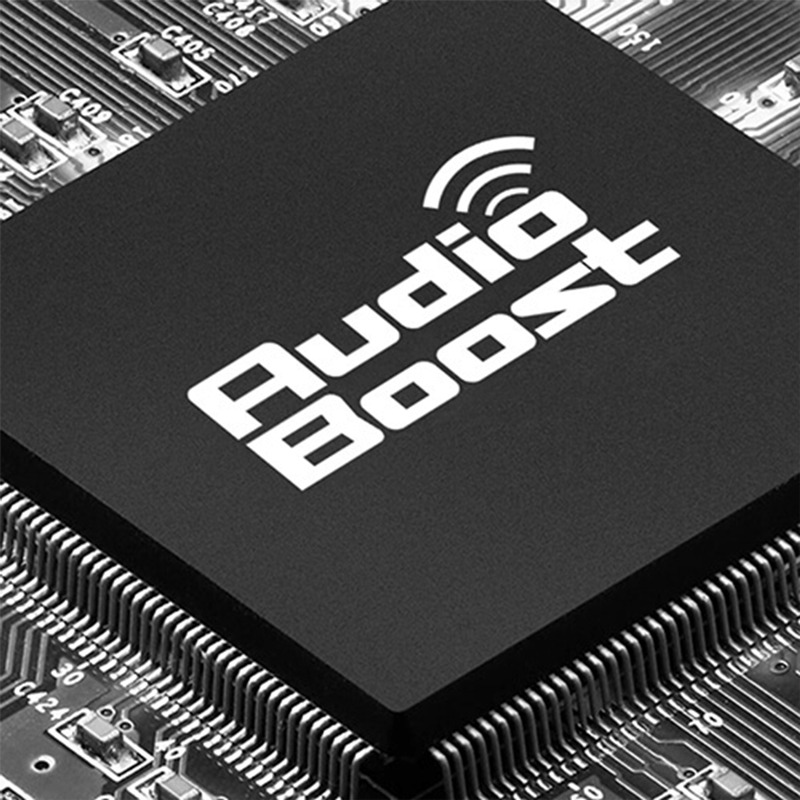

Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

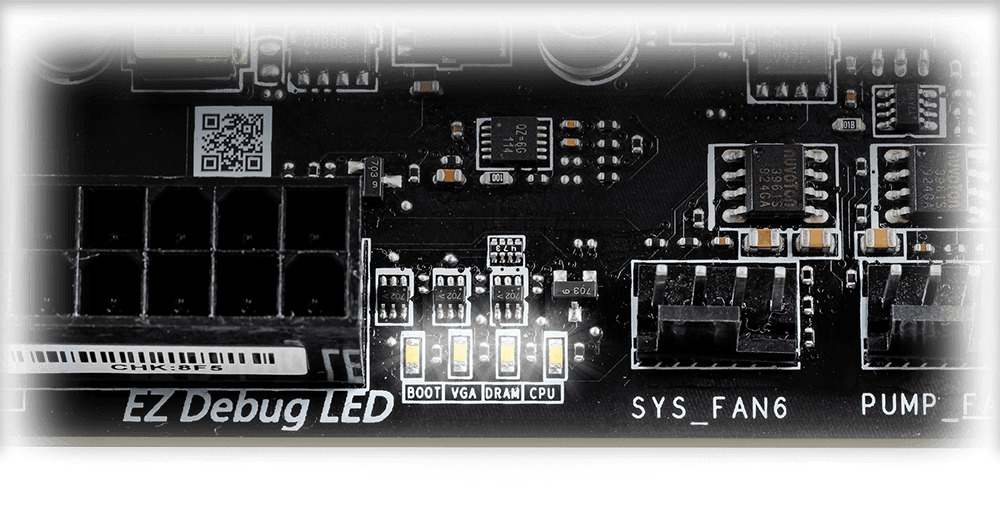

EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
![](/images/custom/site/ez-bg(1).jpg)

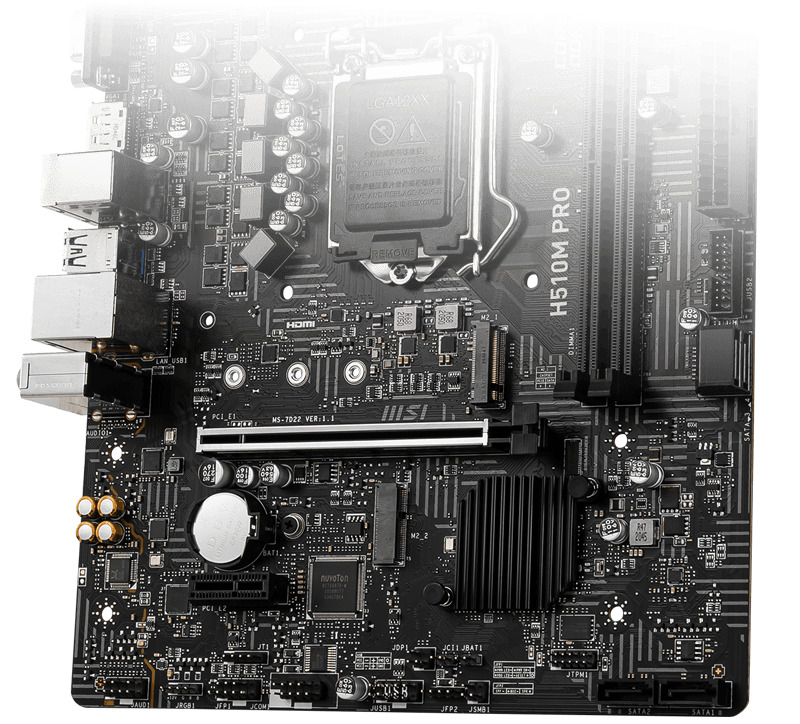

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
![](/images/custom/site/LIGHTING-GEN-4-PCI-E(1).jpg)
![]() | ![]() | ![]() |

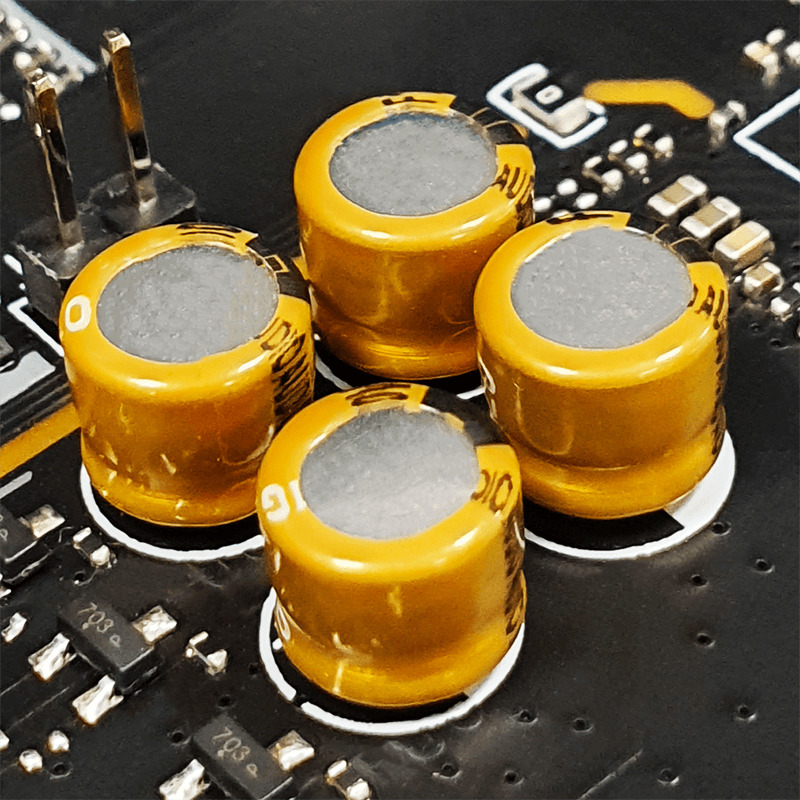

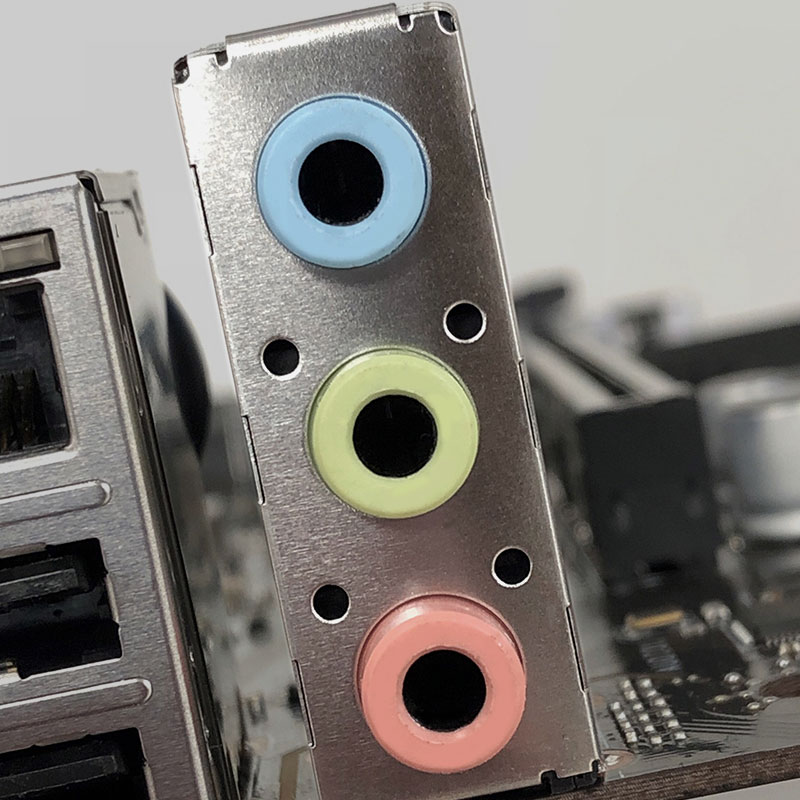

HD AUDIO CONNECTORSKeep you sound perfect by transmit your aduio with pure digital signal. | HIGH QUALITY AUDIO CAPACITORSA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. | DEDICATED HIGH DEFINITION AUDIO PROCESSORMake sure you enjoy the purest sound quality in both stereo and surround sound. |
Specifications
Socket - 1200
Chipset - Intel® H510 Chipset
DDR4 Memory - 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Memory Channel - Dual
DIMM Slots - 2
Max Memory (GB) - 64
PCI-E x16 - 1
PCI-E Gen - Gen4
PCI-E x1 - 1
SATAIII - 4
M.2 Slot - 2
TPM (header) - 1
LAN - 1x Intel® I219V Gigabit LAN controller
USB 3.2 ports (Front) - 2(Gen 1, Type A)
USB 3.2 ports (Rear) - 2(Gen 1, Type A)
USB 2.0 ports (Front) - 2
USB 2.0 ports (Rear) - 4
Serial ports(Front) - 1
Audio ports (Rear) - Realtek® ALC897 Codec
DisplayPort - 1
VGA - 1
HDMI - 1
DirectX - 12
Form Factor - Mirco-ATX
Operating System - Support for Windows® 10 64-bit
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1200 |
---|---|
Чипсет: | H510 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 2 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Не |
Безжични мрежи: | Не |
Bluetooth: | Не |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | DP HDMI (D-Sub) |
Форм фактор: | Micro ATX |
