Дънна платка MSI A320M-A PRO, A320, AM4, DDR4, PCIe 3.0 (HDMI&DVI-D), 4x SATA 6Gb/s, 6x USB 3.2 Gen1, m-ATX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 3200 (OC) MHz

• Audio Boost: Reward your ears with studio grade sound quality.

• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

​

Specifications

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen ™ / Ryzen ™ with Radeon ™ Vega Graphics and 2nd Gen AMD Ryzen ™ with Radeon ™ Graphics / Athlon ™ with Radeon ™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

CHIPSET
AMD® 320 Chipset

MEMORY
2 x DDR4 memory slots, support up to 32GB1
Support 1866/2133/2400/2667 (OC) / 2933 (OC) / 3200 (OC) + MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)

SLOTS
1 x PCIe 3.0 x16 slot
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen ™ processors
Supports x8 speed with Ryzen ™ with Radeon ™ Vega Graphics and 2nd Gen AMD Ryzen ™ with Radeon ™ Graphics processors
Supports x4 speed with AMD® Athlon ™ with Radeon ™ Vega Graphics Processors
1 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS
1 x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz1.2
1 x HDMI ™ port 1.4, supports maximum resolution of 4096x2160 @ 30Hz1,2
Only support when using AMD® Ryzen ™ with Radeon ™ Vega Graphics and 2nd Gen AMD Ryzen ™ with Radeon ™ Graphics / Athlon ™ with Radeon ™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB

STORAGE
AMD® A320 Chipset
4 x SATA 6Gb / s ports
Supports RAID 0, RAID 1 and RAID 10

USB
AMD® A320 Chipset
6 x USB 3.2 Gen1 (SuperSpeed ​​USB) ports (4 Type-A ports on the back panel, 2 ports available through internal connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through internal connectors)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 4 pin ATX 12V power connector
4 x SATA 6Gb / s connectors
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4 pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

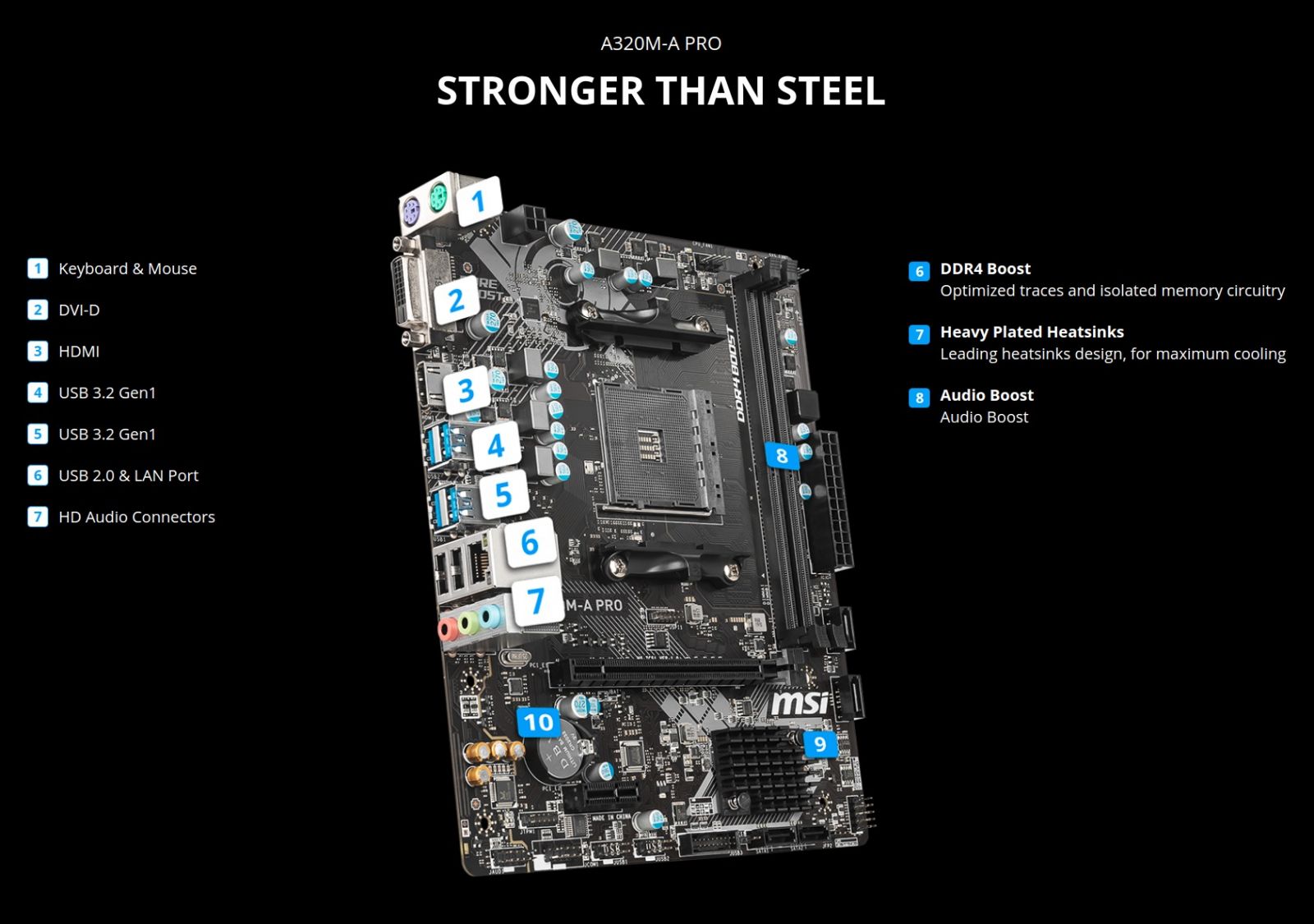

BACK PANEL PORTS
Mouse
DVI-D Port
USB 3.2 Gen1
LAN Port
Keyboard
HDMI Port
USB 2.0 Ports
HD Audio Connectors
MSI A32M-A PRO back panel ports

DIMENSIONS
8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
m-ATX Form Factor

MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
