MSI X670E GAMING PLUS WIFI
Tech specs:
| Chipset | AMD X670 |
| CPU | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen 7000 Series processors) • Supports x8/x1/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4/x1/x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| LED FEATURE | 4x EZ Debug LED |

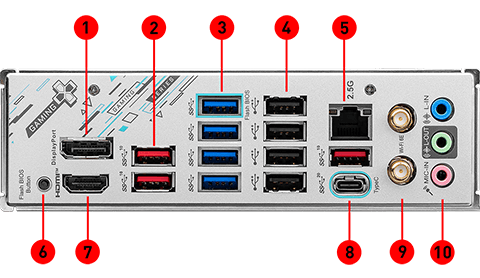

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | AM5 |
|---|---|
| Чипсет: | X670 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | ATX |
| Видеокарта: | Вградена |
