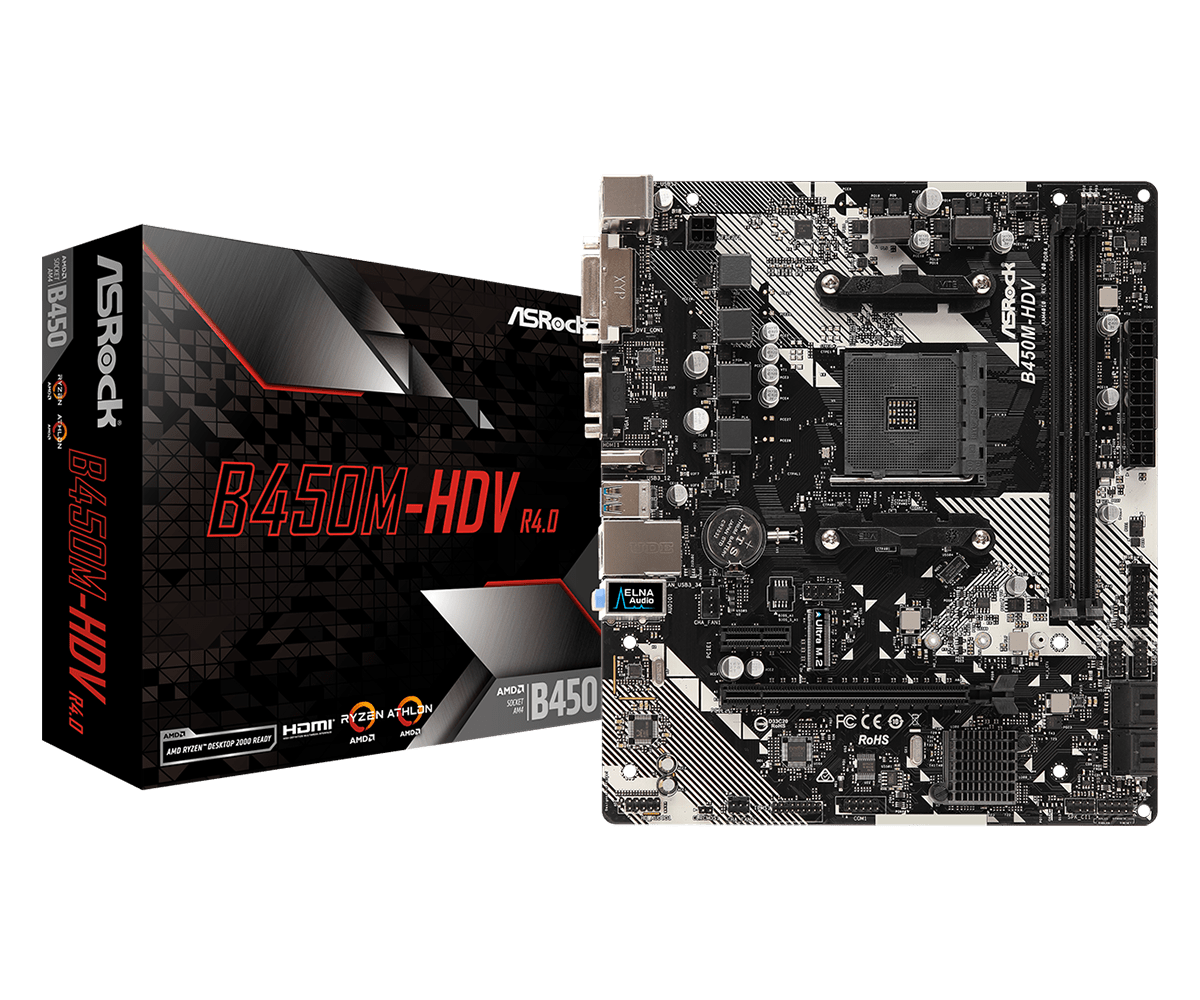

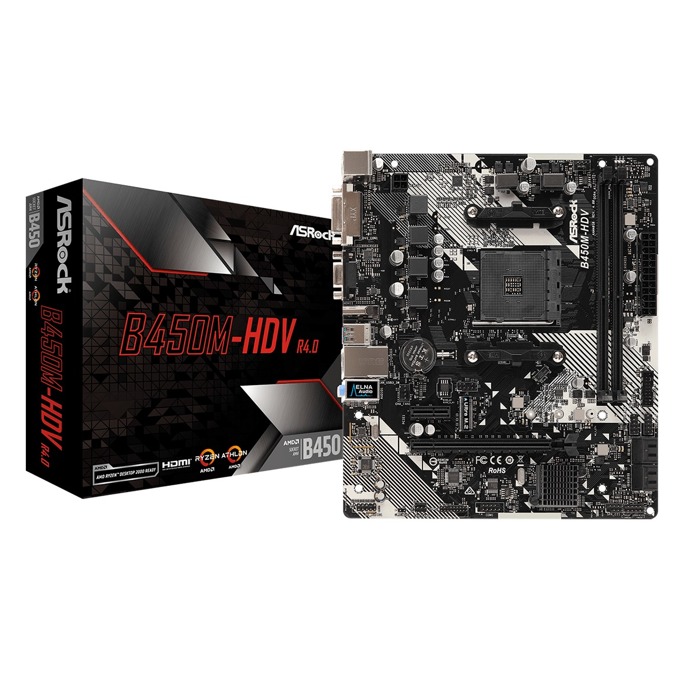

Дънна платка ASRock B450M-HDV R4.0, B450, AM4, DDR4, PCI-E(HDMI&DVI&VGA), 4x SATA 6Gb/s, 1x Ultra M.2 Socket, 4x USB 3.1 (Gen1), Micro ATX, 3 години гаранция

B450M-HDV R4.0

• Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
• 2 DIMMs, Supports DDR4 3200+(OC)*
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
• Graphics Output : HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
• 6 USB 3.1 Gen1 (2 Front, 4 Rear)

• Realtek Gigabit LAN

  *Actual support may vary by CPU.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

Specifications:

• Unique Feature

  ASRock Super Alloy
  - High Density Glass Fabric PCB
  - Sapphire Black PCB
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop

• CPU

  - Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
  - 6 Power Phase design
  - Supports CPU up to 105W

• Chipset

  - AMD Promontory B450

• Memory

  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
  - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
  - Max. capacity of system memory: 64GB
  - Supports Extreme Memory Profile (XMP) memory modules
  - 15μ Gold Contact in DIMM Slots

• BIOS

  - 128Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - DRAM Voltage multi-adjustment

• Graphics

  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - DirectX 12, Pixel Shader 5.0
  - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  - Three graphics output options: D-Sub, DVI-D and HDMI
  - Supports Triple Monitor
  - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP 1.4 with DVI-D and HDMI Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI Port


  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.

• Audio

  - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  - Supports Surge Protection

• LAN

  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE

• Slots

  AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
  AMD Ryzen series CPUs (Picasso, Raven Ridge)
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
  AMD Athlon series CPUs
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

  - 1 x PCI Express 2.0 x1 Slot


  *Supports NVMe SSD as boot disks

• Storage

  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*


  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit

• Connector

  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 4 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)


  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

• Rear Panel I/O

  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  - ASRock A-Tuning
  - ASRock XFast LAN
  UEFI
  - ASRock Full HD UEFI
  - ASRock Instant Flash
  - ASRock Easy RAID Installer


  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Support CD

  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Accessories

  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 1 x Screw for M.2 Socket

• Hardware Monitor

  - CPU/Chassis temperature sensing
  - CPU/Chassis Fan Tachometer
  - CPU/Chassis Quiet Fan
  - CPU/Chassis Fan multi-speed control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, Vcore

• Form Factor

  - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
  - Solid Capacitor design

• OS

  - Microsoft® Windows® 10 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
