Медицински дисплей EIZO RadiForce RX660, 30" (76.2 cm) IPS дисплей, DisplayPort, DVI

EIZO RadiForce RX660



Quick Information Referencing

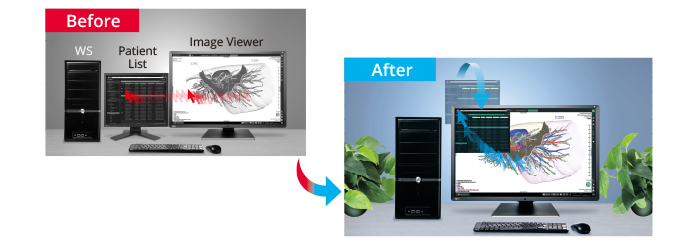

The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports, patient charts, and other information.



Specifications:

Panel
Type	Color (IPS)
Backlight	LED
Size	30.0" (76 cm)
Native Resolution	3280 x 2048 (16:10 aspect ratio)
Viewable Image Size (H x V)	645.5 x 403.0 mm
Pixel Pitch	0.1968 x 0.1968 mm
Display Colors	10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors 8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical)	176° / 176°
Brightness (typical)	1000 cd/m2
Recommended Brightness for Calibration	500 cd/m2
Contrast Ratio (typical)	1500:1
Response Time (typical)	25 ms (black-white-black)
Video Signals
Input Terminals	DisplayPort x 2, DVI-D (dual link)
Output Terminals	DisplayPort (daisy chain)
Digital Scanning Frequency (H / V)	31 - 127 kHz / 22 - 61 Hz
USB
Upstream	USB 2.0: Type-B x 2
Downstream	USB 2.0: Type-A x 3
Power
Power Input	AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption	93 W
Maximum Power Consumption	190 W
Power Save Mode	1.6 W or less
Sensor	Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
