Медицински дисплей EIZO RadiForce MS236WT, 23" (58.42 cm) Full HD IPS дисплей, DisplayPort, HDMI, USB

EIZO RadiForce MS236WT

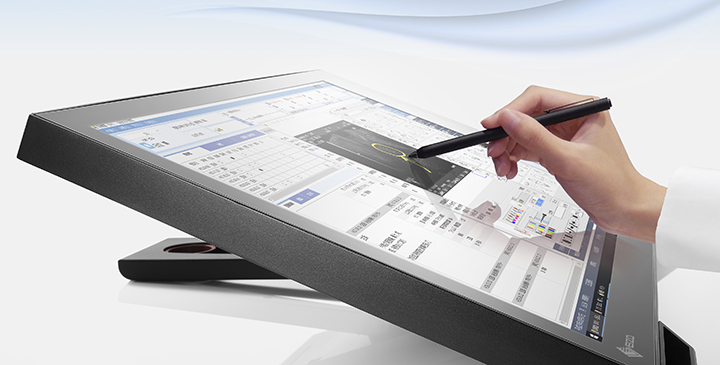

Smooth and Detailed Handwriting with Stylus Pen

The MS236WT features projected capacitive touch technology which is more reliable compared to other touch technologies, allowing for drag and flick finger operations to be smooth. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so small and detailed letters can easily be written into a medical record.

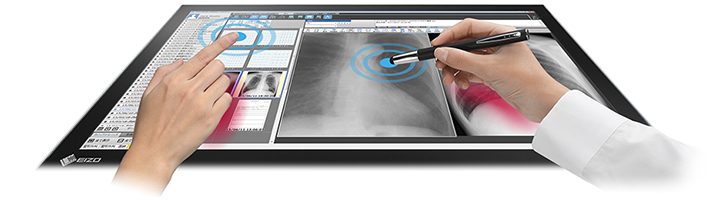

Write While Resting Against the Screen

The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.



Specifications:

Panel
Type	Color (IPS)
Backlight	LED
Size	23.0" (58 cm)
Native Resolution	1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V)	509.2 x 286.4 mm
Pixel Pitch	0.265 x 0.265 mm
Display Colors	8-bit: 16.77 million from a palette of 1.06 billion (10-bit) colors
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	260 cd/m2
Contrast Ratio (typical)	1000:1
Response Time (typical)	11 ms (gray-to-gray)
Touch Panel
Type	Projected Capacitive
Touch Points	10
Surface Treatment	Anti-Glare coating
Communication Protocol	USB
Surface Hardness	5 H
Compatible OS	Windows 11, Windows 10 / 8.1 (64-bit, 32-bit)
Video Signals
Input Terminals	DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V)	DVI: 31 - 64 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz) DisplayPort: 31 - 68 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V)	31 - 81 kHz / 55 - 76 Hz
Sync Formats	Separate
USB
Upstream	USB 2.0: Type-B
Downstream	USB 2.0: Type-A x 2
Audio
Speakers	1.0 W + 1.0 W
Input Terminals	Stereo mini jack, DisplayPort
Output Terminals	Headphones (Stereo mini jack)
Power
Power Input	AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption	19 W
Maximum Power Consumption	42 W
Power Save Mode	0.7 W or less
Features & Functions
Preset Modes	User1, User2, sRGB, DICOM
OSD Languages	English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight	6.6 kg
Net Weight (Without Stand)	6 kg
Hole Spacing (VESA Standard)	100 x 100 mm
