Медицински дисплей EIZO RadiForce GX560, 21.3" (54.102 cm) IPS дисплей, DisplayPort, DVI

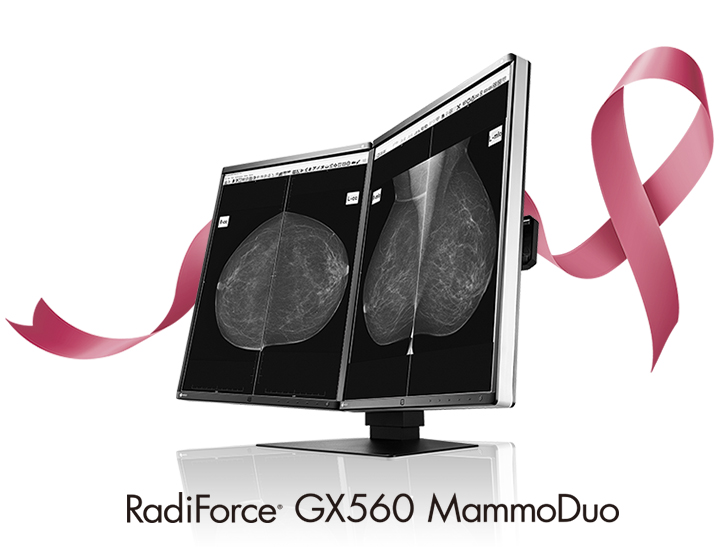

EIZO RadiForce GX560



 Distraction-Free Viewing

With a 7.5 mm bezel, the world's narrowest bezel on a 5 megapixel monitor, the total distance between two side-by-side screens is only 15 mm. Furthermore the screen is almost completely flat with the bezel sitting only 2.5 mm above the screen.



Specifications:

Panel
Type	Monochrome (IPS)
Backlight	LED
Size	21.3" (54.1 cm)
Native Resolution	2048 x 2560 (4:5 aspect ratio)
Viewable Image Size (H x V)	337.9 x 422.4 mm
Pixel Pitch	0.165 x 0.165 mm
Grayscale Tones	10-bit (DisplayPort): 1,024 from a palette of 16,369 (14-bit) tones 8-bit: 256 from a palette of 16,369 (14-bit) tones
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	2500 cd/m2
Recommended Brightness for Calibration	1000 cd/m2, 600 cd/m2
Contrast Ratio (typical)	1700:1
Response Time (typical)	12 ms (black-white-black)
Video Signals
Input Terminals	DisplayPort x 2, DVI-D (dual link)
Output Terminals	DisplayPort (daisy chain)
Digital Scanning Frequency (H / V)	31 - 135 kHz / 23 - 61 Hz
USB
Upstream	USB 2.0: Type-B x 2
Downstream	USB 2.0: Type-A x 2
Power
Power Input	AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption	28 W
Maximum Power Consumption	79 W
Power Save Mode	1 W or less
Sensor	Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
