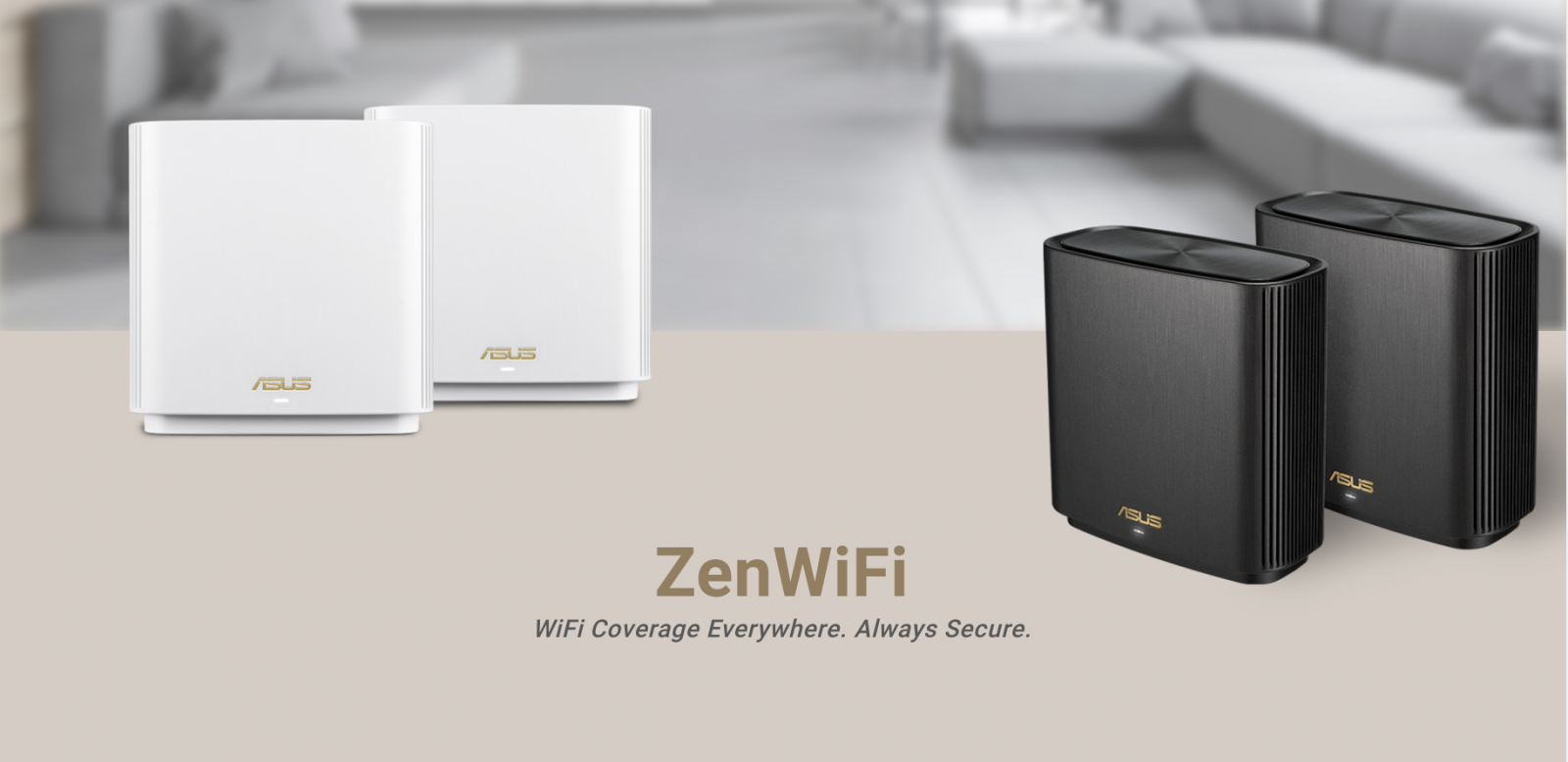

Wi-Fi система Asus ZenWiFi AX XT8 (B-2-PK), 2 pack, 6600 Mbps, 2.4GHz (574 Mbps)/5GHz (1201 Mbps)/5GHz (4804 Mbps), Wireless AX, 3x LAN 1000Mbps, 1x WAN 2.5G, 1x USB 3.1, 6x вътрешни антени

Whole-home Coverage

High speed tri-band. Stable WiFi.

Flexible Network Naming

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

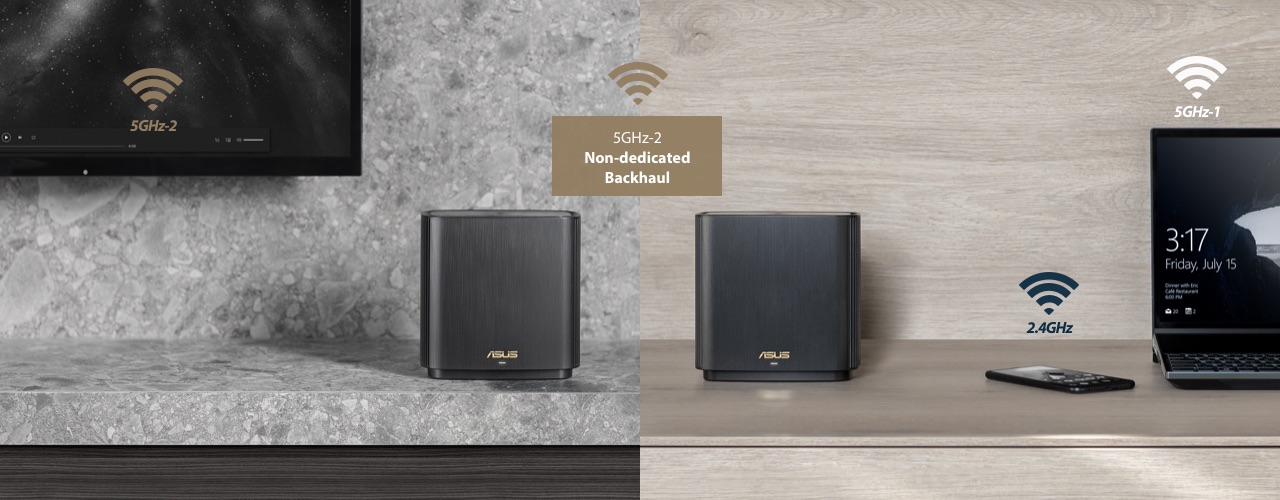

Backhaul Configuration

ZenWiFi AX allows flexible configuration of the backhaul connection. You can set the second 5GHz band as a dedicated or non-dedicated backhaul connection, enabling maximized backhaul speed or freeing up the fastest 5GHz band for connected devices. If you have Ethernet ports in your walls, you can also set ZenWiFi AX to use Ethernet backhaul, reserving all three WiFi bands for your wireless devices for even more stable and reliable networking.

Tech Specs

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX6600 ultimate AX performance：574+1201+4804Mbps

AX technology

Yes

Data Rate

WiFi 4 (802.11n) : up to 150 Mbps
802.11ac (1024QAM) : up to 3466 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4808 Mbps

Antenna

Internal antenna x 6

Transmit/Receive

2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4

Processor

1.5 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

Ports

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

Package content

ZenWiFi AX
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card
ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

716 g

AiMesh

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No
WTFast : No

Alexa

Support Alexa skill : Yes

AiProtection

AiProtection : AiProtection Pro
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes

Traffic Control

Adaptive QoS : Yes
Traffic Monitor : Yes
Traffic Analyzer : Yes

Wireless

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : Max 9 rules
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : Max 64 rules
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes

WAN

Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes

LAN

IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No

VPN

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : No

Administration

Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Firewall : Yes
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL) : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
