Рутер Asus RT-AX5400, 5400Mbps, 2.4GHz (574 Mbps)/ 5GHz (4804 Mbps), Wireless AX, 4x LAN 10/100/1000Mbps, 1x WAN 10/100/1000Mbps, 1x USB 3.2 Gen 1, 4x външни антени

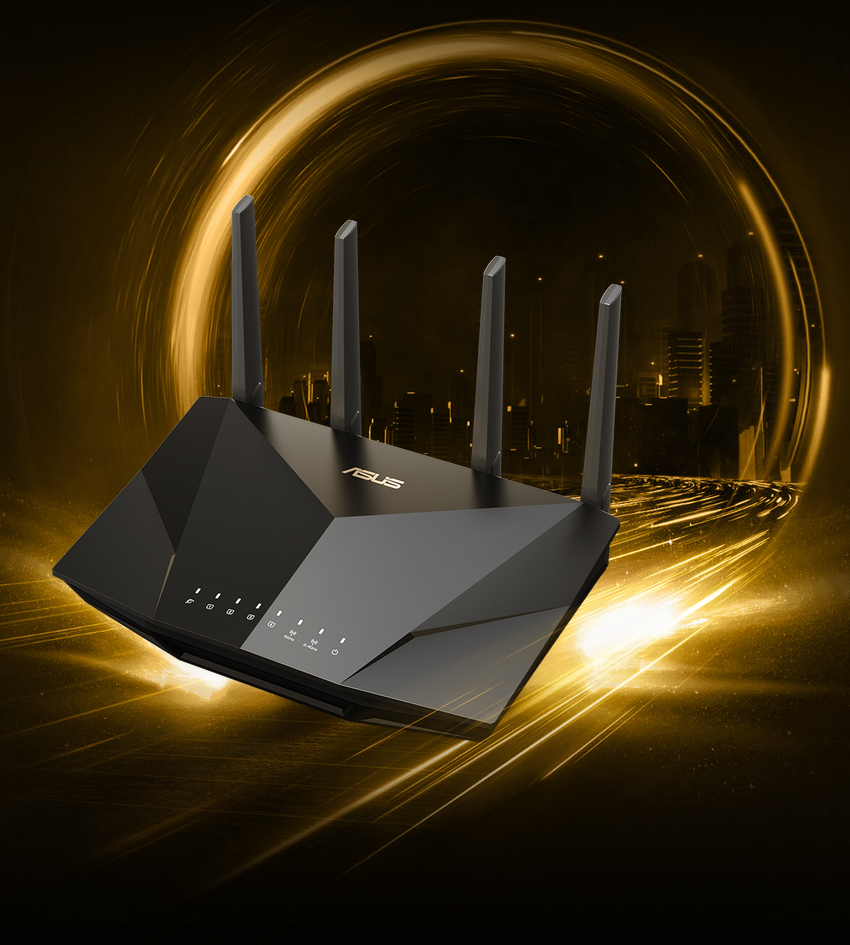

Asus RT-AX5400

Compelling Speed,  Reliable Connectivity With comprehensive built-in VPN network protection provided by advanced ASUS security tech, RT-AX5400 can definitely exceed your imagination of networking experience and work perfectly with your existing WiFi devices*! Let’s gear up for ultra-secure connectivity and powerful performance!   *To benefit from WiFi 6 features, the WiFi client needs to be WiFi 6 capable

Warp-speed WiFi

RT-AX5400 leverages WiFi 6 to deliver faster and more stable internet to the growing multitude of smart devices in your home. The faster speed, higher network efficiency and capacity free you to connect as many devices as you need, while enjoying top WiFi speeds.

*The data compares speed of 4x4 WiFi 6 solution on 5GHz band to speed of 4x4 WiFi 5 solution on 5GHz band.

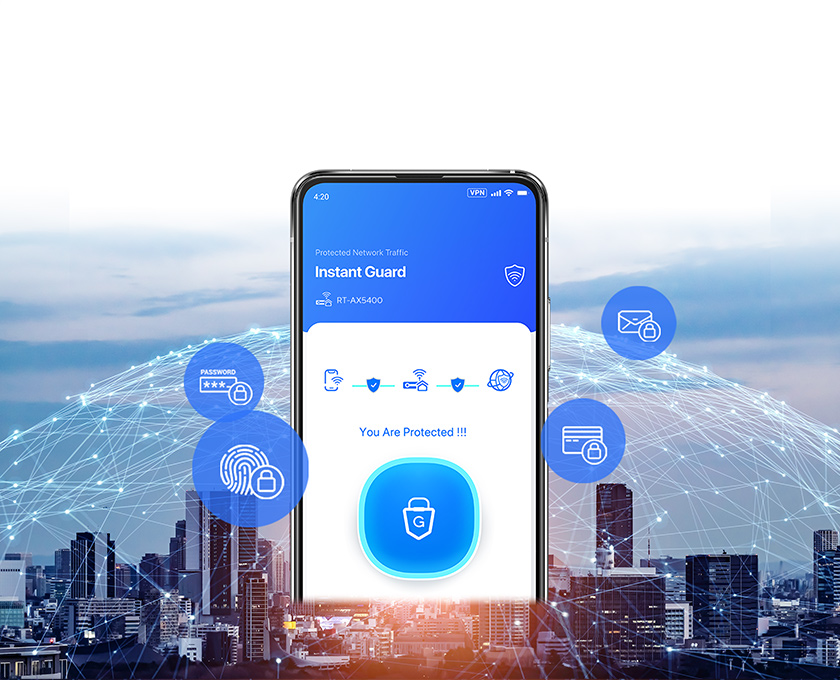

Make Free WiFi Secure with Instant Guard The free public WiFi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure, and hackers can easily capture any digital information you send to the internet . The ASUS Instant Guard mobile app gives you one tap secure internet access via your RT-AX5400 router adding rock-solid security to any public WiFi connections you use. Our newly upgraded app even lets you easily share this worry-free network connection with your family and friends through a URL link.
COMMERCIAL-GRADE NETWORK SECURITY Complete Security for Your Home Network Alongside the latest WPA3 security protocol, the ASUS RT-AX5400 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.
AN UPGRADED VPN Encrypted Remote Connection The ASUS RT-AX5400 router allows remote workers to securely access corporate networks without needing to install VPN software on each device. You can create different VPN connection types, including PPTP, L2TP, OpenVPN or WireGuard. With VPN Fusion, you can also assign various devices to different VPN tunnels while simultaneously keeping an ordinary internet connection for regular use.

Network Control in Your Way

Easily setup and manage your RT-AX5400 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.

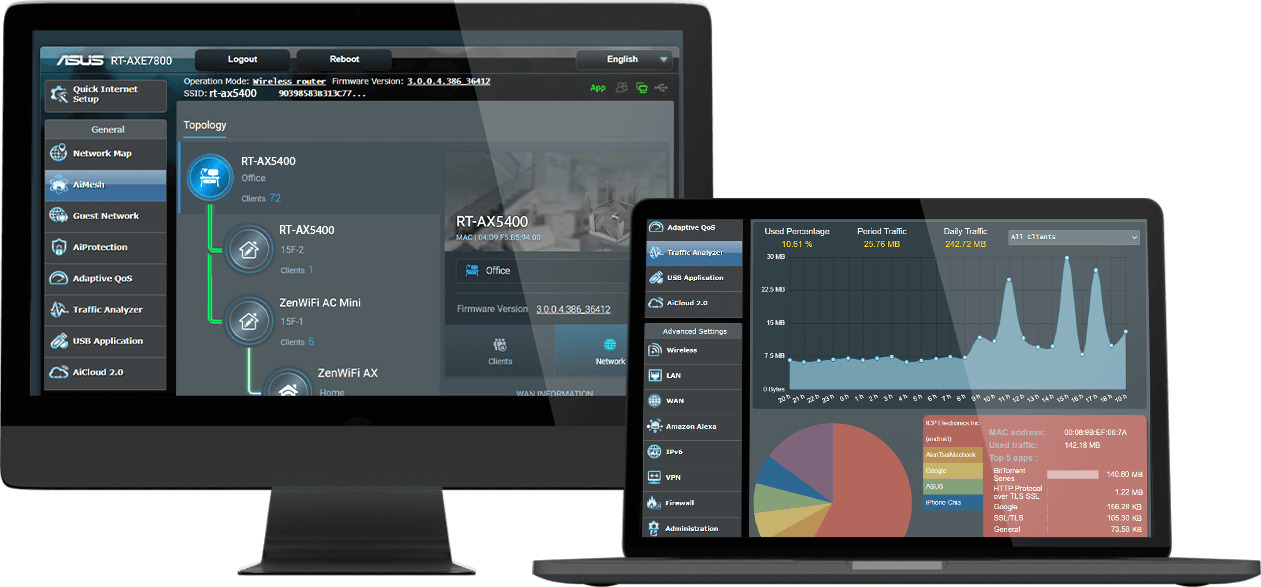

UPGRADED EASY APP Simple but Complete Functions The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AX5400 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.	WEB GUI Advanced Controls If you want to take advantage of the advanced capabilities of the RT-AX5400, its powerful web interface gives you access to at-a-glance status reports and in-depth settings via a handy dashboard. You can use it to monitor web traffic, set up your router's QoS settings, manage ports, configure security features, and much more.

Flexible and Scalable Wireless AiMesh Networking

Does your router leave you with WiFi dead spots? RT-AX5400 supports ASUS AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!

Tech Specs

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)

Product Segment

AX5400 ultimate AX performance : 574+4804 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 400 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 3466 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 4 (non-detachable)

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash
512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Operating Mode

Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

Product Weight (g)

612.4g

Product Dimensions

161.05*226.23*160.23mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security

AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
