Рутер Asus RT-AXE7800, 7800Mbps, 2.4GHz (574 Mbps)/ 5GHz (4804 Mbps)/6GHz (2402 Mbps), 1x 2.5G Mbps for WAN/LAN, 1 x RJ45 10/100/1000Mbps for WAN/LAN, 3x RJ45 10/100/1000Mbps for LAN, 1x USB 3.2 Gen 1 Port

Asus RT-AXE7800





Secure Connections,
Superior Speed
Explore ultimate technology with the ASUS RT-AXE7800 tri-band WiFi 6E router. Its breakthrough performance of up to 7800 Mbps WiFi speed can meet and exceed your internet needs, with comprehensive network protection provided by advanced ASUS security tech. Gear up for ultrafast connectivity!









Multi-Gigabit Wired Connection
Equipped with a 2.5 Gbps WAN/LAN port, the ASUS RT-AXE7800 also features both WAN and LAN aggregation*, providing you with more options when assembling your network**. This flexibility lets you deliver massive bandwidth to your wired devices and takes advantage of ultra-high-speed internet connections in many scenarios***.












Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6

Product Segment
AXE7800 ultimate AX performance : 574+4804+2402Mbps

AX technology
Yes

Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

Antenna
External antenna x 6 (non-detachable)

Transmit/Receive
2.4GHz 2x2
5GHz 4x4
6GHz 2x2

Processor
1.7GHz quad-core processor

Memory
256 MB Flash and 512 MB DDR4 RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

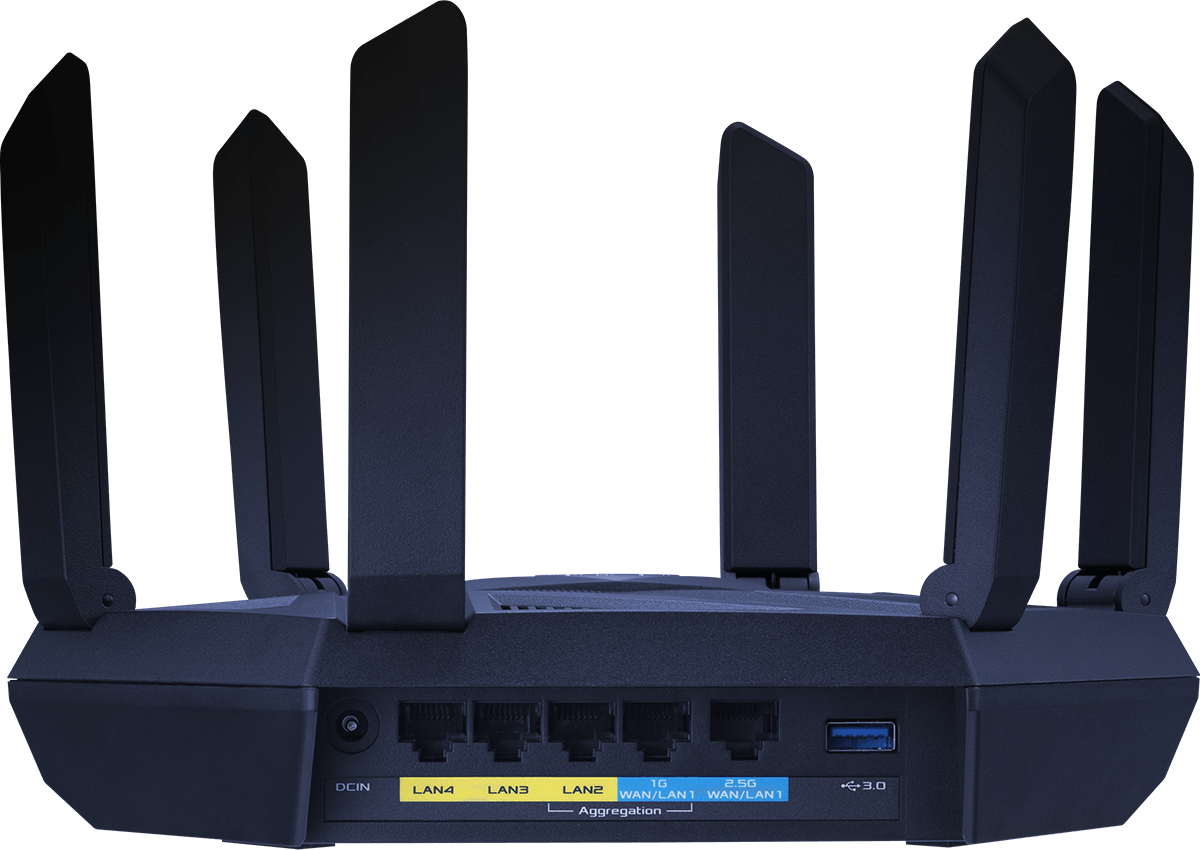

Ports
1 x 2.5G Mbps for WAN/LAN
1 x RJ45 10/100/1000Mbps for WAN/LAN
3 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen 1 Port

Button
Power on/off switch
Reset Button
WPS Button

LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output: 12 V with max. 3.0 A current

Product Weight (g)
1033g

AiMesh
AiMesh
Primary AiMesh router
AiMesh node

Router APP
ASUS Router APP

Alexa
Support Alexa skill

AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64

Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history

Wireless
IPv6
MU-MIMO
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS

LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
