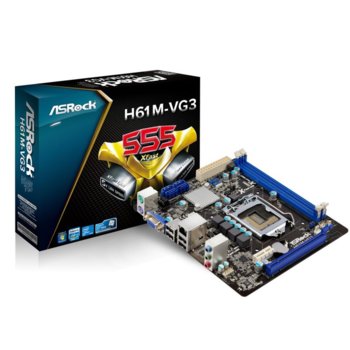

ASROCK H61M-VG3
CPU
Supports 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 package
Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
Supports Hyper-Threading Technology
Chipset
Intel® H61
Supports Intel® Rapid Start Technology and Smart Connect Technology
• Memory
Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU
• BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliant wake up events
Supports jumperfree
SMBIOS 2.3.1 support
• Graphics
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
• Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
• Slots
1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
1 x PCI Express 2.0 x1 Slots
• Connector
4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
1 x Power LED header
1 x Chassis Intrusion header
1 x LPC header
1 x CPU Fan connectors (4-pin)
1 x Chassis Fan connector (3-pin)
24 pin ATX power connector
4 pin 12V power connector
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)
• Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone
• Form Factor
Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm
All Solid Capacitor design
• OS
Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
www.asrock.com
