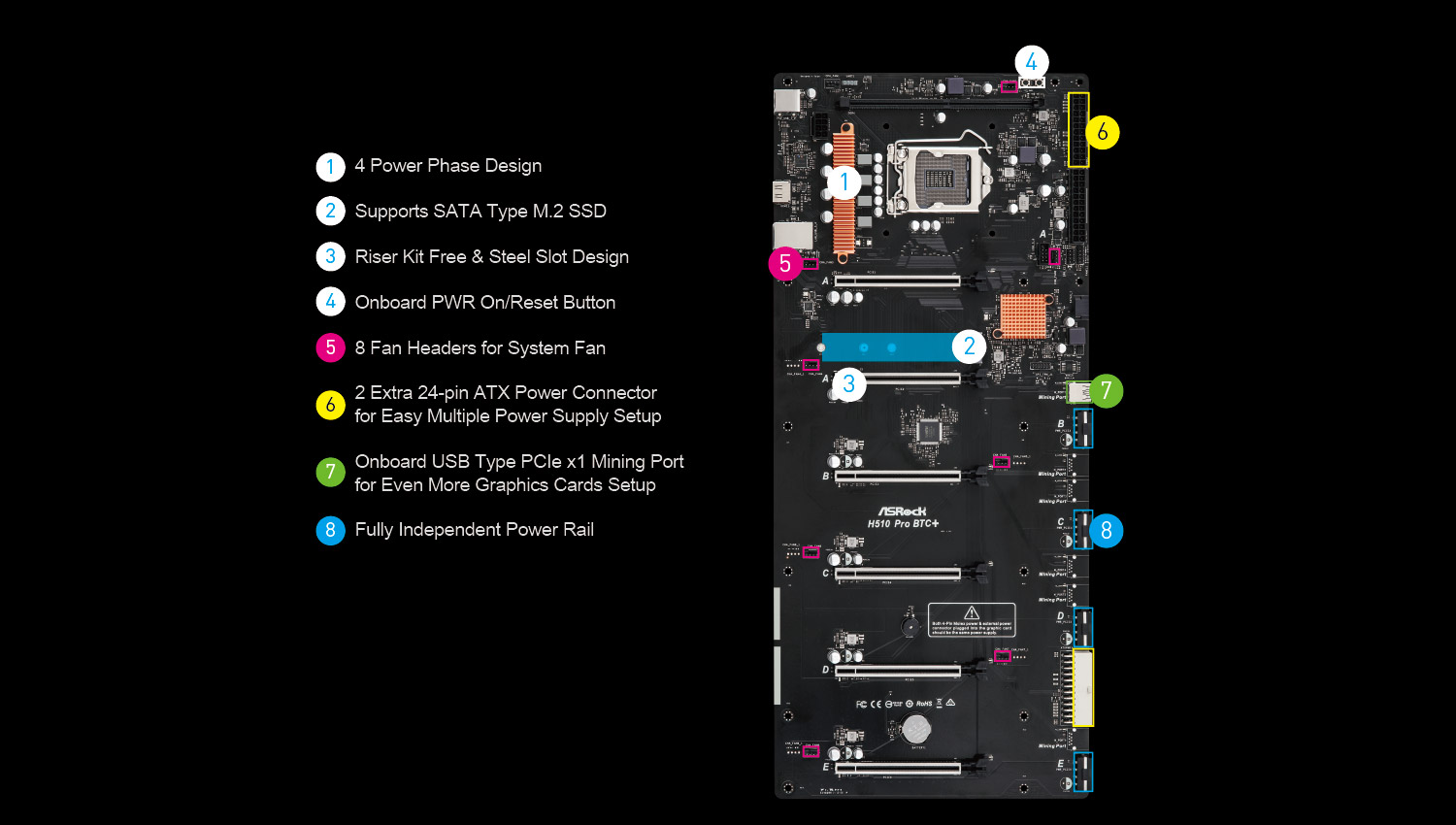

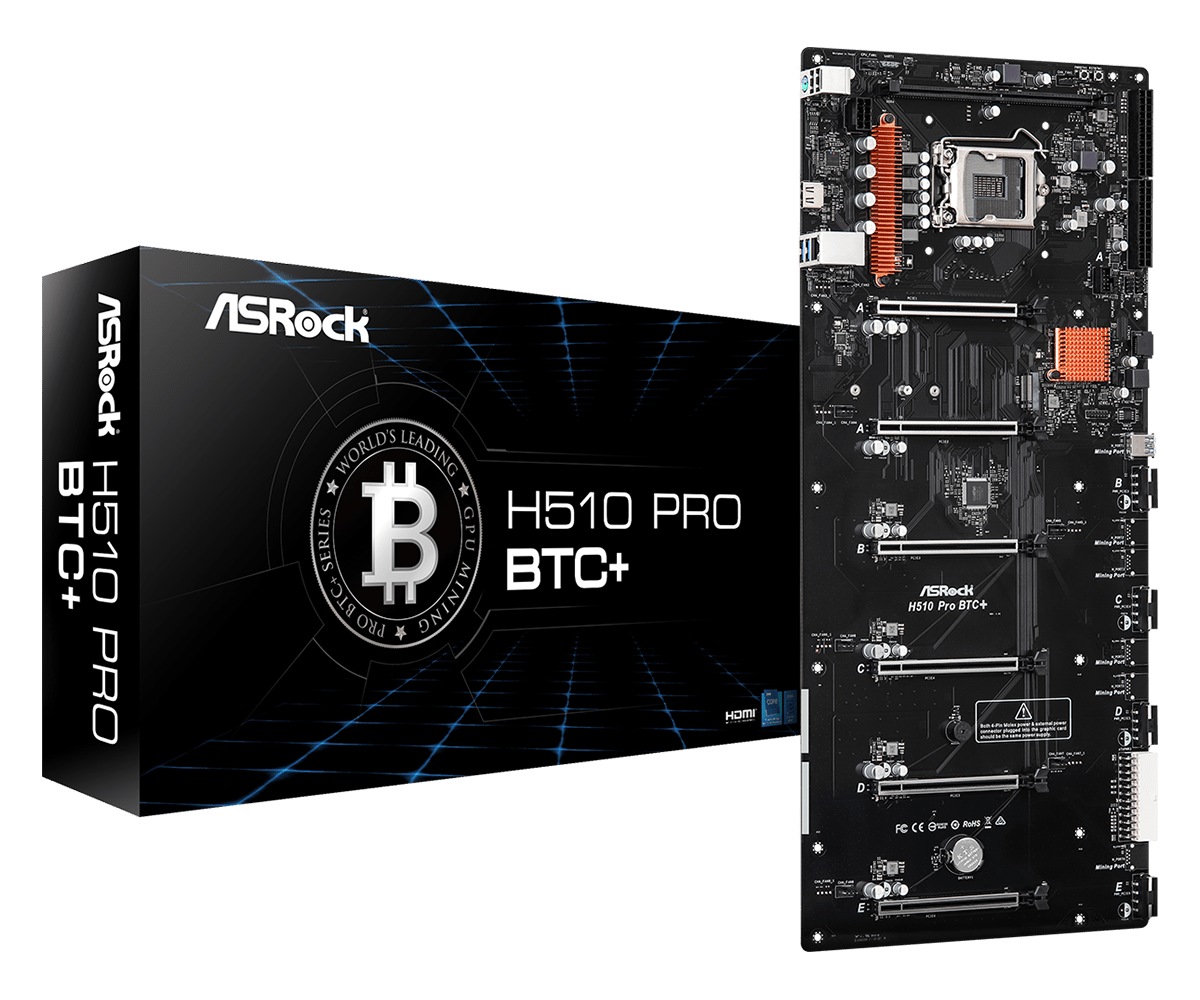

H510 Pro BTC+
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz
- Graphics Output: HDMI
- 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
- 1 SATA3, 1 M.2 (SATA3)
- 2 Rear USB 3.1 Gen1 Type-A
- 4 USB 2.0 Type-A (2 Rear, 2 Front)
- Intel® Gigabit LAN
- 2 Extra 24-pin ATX Power Connector
- Onboard Power On / Reset Button
- Fully Independent Power Rail

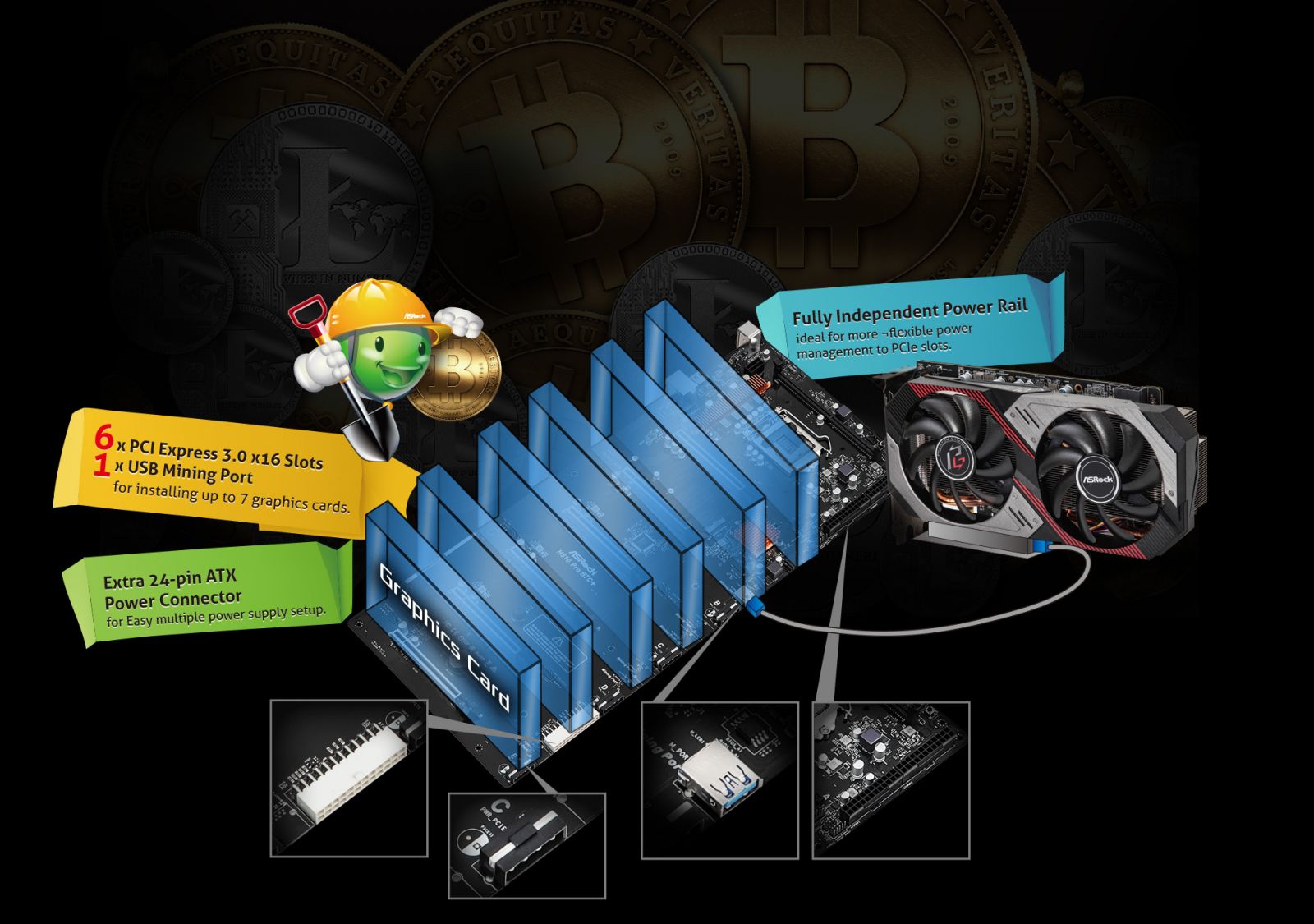

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
Specifications:
-
CPU- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
- Digi Power design
- 4 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology -
Chipset- Intel® H510
-
Memory- 1 x DDR4 DIMM Slot*
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory**
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB***
- Supports Intel® Extreme Memory Profile (XMP) 2.0
*2GB DRAM per module is not supported.
**11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment -
Graphics- 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with and HDMI 1.4 Port
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio
-
LAN- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
Slots- 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1)
- 1 x Mining Port (M_Port1 at x1)*
*Support USB Type Riser kit -
Storage- 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug
- 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module -
Connector- 1 x System Panel Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 8 x Chassis Fan Connectors (4-pin)**
- 3 x 24 pin ATX Power Connectors
- 1 x 8 pin 12V Power Connector
- 4 x 4 pin PCIe Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x Power Button
- 1 x Reset Button
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**CHA_FAN3~CHA_FAN8 supports the chassis fan of maximum 2.5A (30W) fan power.
CPU_FAN1, CHA_FAN1 and CHA_FAN2 can adjust 4-pin fan speed. -
Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) -
Unique FeatureASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Steel Slot
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories- Quick Installation Guide, Support CD
- 1 x SATA Data Cable
- 1 x Screw for M.2 Socket -
Hardware Monitor- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V -
Form Factor- 20.1-in x 8.8-in, 50.1 cm x 22.4 cm
- Solid Capacitor design -
OS- Microsoft® Windows® 10 64-bit
- Linux: Ubuntu 16.04 LTS / Fedora 25*
*Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported. -
Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1200 |
---|---|
Чипсет: | H510 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 1 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Не |
Безжични мрежи: | Не |
Bluetooth: | Не |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | HDMI |
