Кутия Thermaltake S500 TG Snow, ATX/Micro ATX/Mini ITX, 2x USB 3.0, 2x USB 2.0, закалено стъкло, бяла, без захранване





S500 TG Snow Mid-tower case comes with one tempered glass panel on the left, one pre-installed 140mm front fan and one 120mm rear fan, supporting motherboards up to ATX.

S500 Tempered Glass Snow Edition mid-tower chassis combines sophistication and elegance and is all built with a modern steel case construction. The S500 TG Snow is manufactured with one tempered glass side panel. Two preinstalled standard fans, one 140mm fan at the front and one 120mm at the rear to enable outstanding ventilation. S500 TG Snow incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components.

For storage this case has four drive trays with modular drive racks, delivering advanced storage capacity and great liquid cooling expansion. S500 TG Snow is a great fit for users who are looking for a modern and stylish chassis.















Tt LCS Certified Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
	Sleek Steel Design Full metal and glass construction with sleek front panel design.

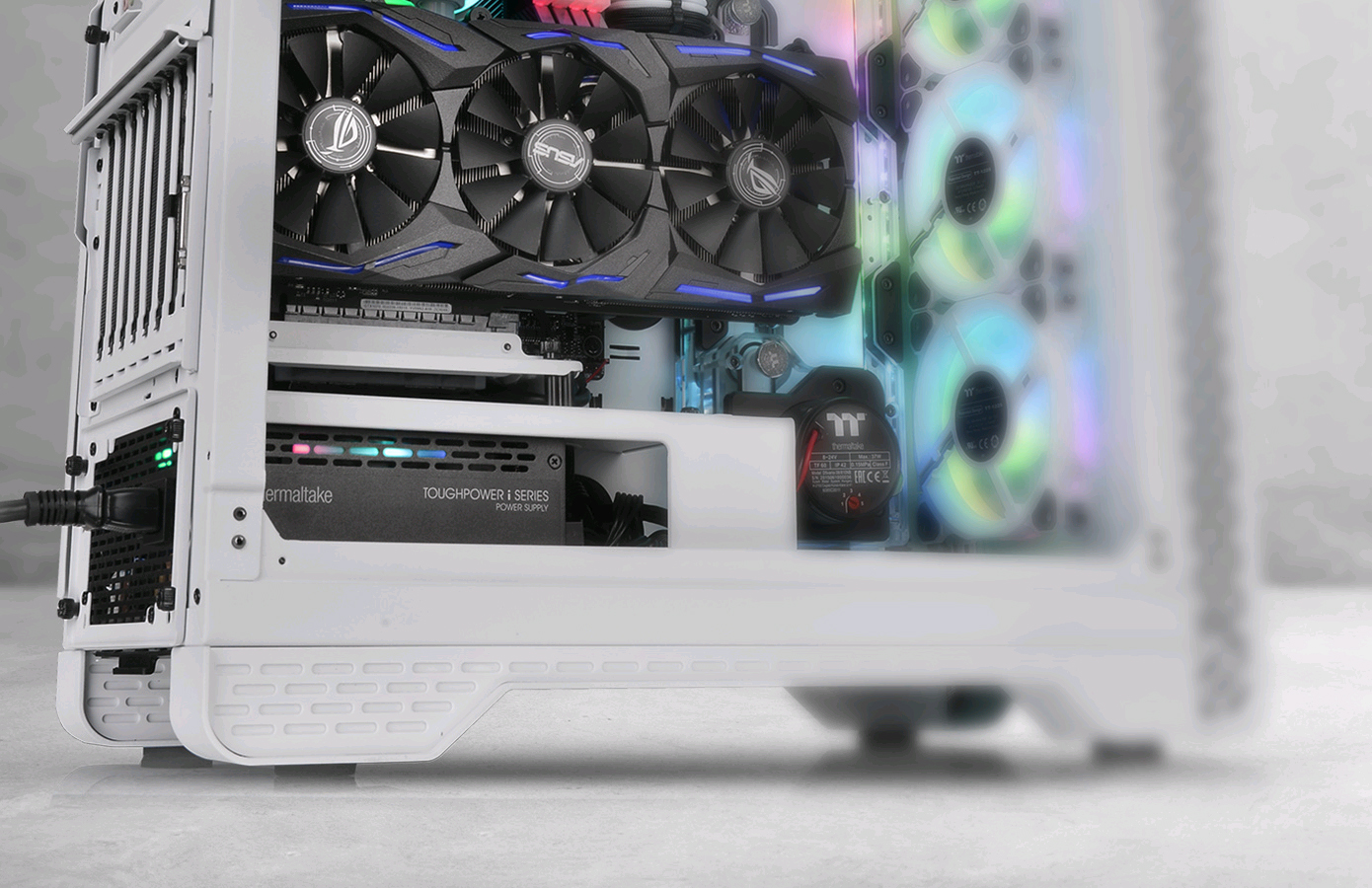

Built-in PSU Cover and Riser GPU Bracket The built-in PSU cover with a ventilated design can improve airflow and hide those unsightly cables. The integrated riser GPU support bracket not only prevents the graphic card from sagging, but helps reduce the weight on the motherboard PCI-E slots
	Patented Rotational PCI-E 8 Slot Design With Patented Rotational PCI-E slots, you can choose the way you want to display graphic cards vertically which helps you gain flexible space for syste













Tempered Glass Window

The 4mm tempered glass window on the side of the S500 TG Snow is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.









Specifications

SERIES
S Series

MODEL
S500 TG

CASE TYPE
Middle Tower

DIMENSION (H X W X D)
565 x 240 x 500 mm
(22.2 x 9.4 x 19.7 inch)

NET WEIGHT
15.04 kg / 33.15 lbs.

SIDE PANEL
4mm Tempered Glass x 1(Left)

COLOR
Exterior & Interior : Snow

MATERIAL
SPCC

COOLING SYSTEM
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Front (intake) :
140 x 140 x 25 mm fan
(1000rpm, 20dBA)

DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

EXPANSION SLOTS
8

MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O PORT
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1

FAN SUPPORT
Front:
3 x 120mm, 3 x 140mm, 2 x 200mm
Top:
3 x 120mm, 2 x 140mm, 2 x 200mm
Rear:
1 x 120mm

RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 420mm
Top:
1 x 280mm, 1 x 360mm
Rear:
1 x 120mm
Right:
1 x 360mm (Without HDD Rack)

CLEARANCE
CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
400mm(Without HDD Rack)
PSU length limitation: 220mm
