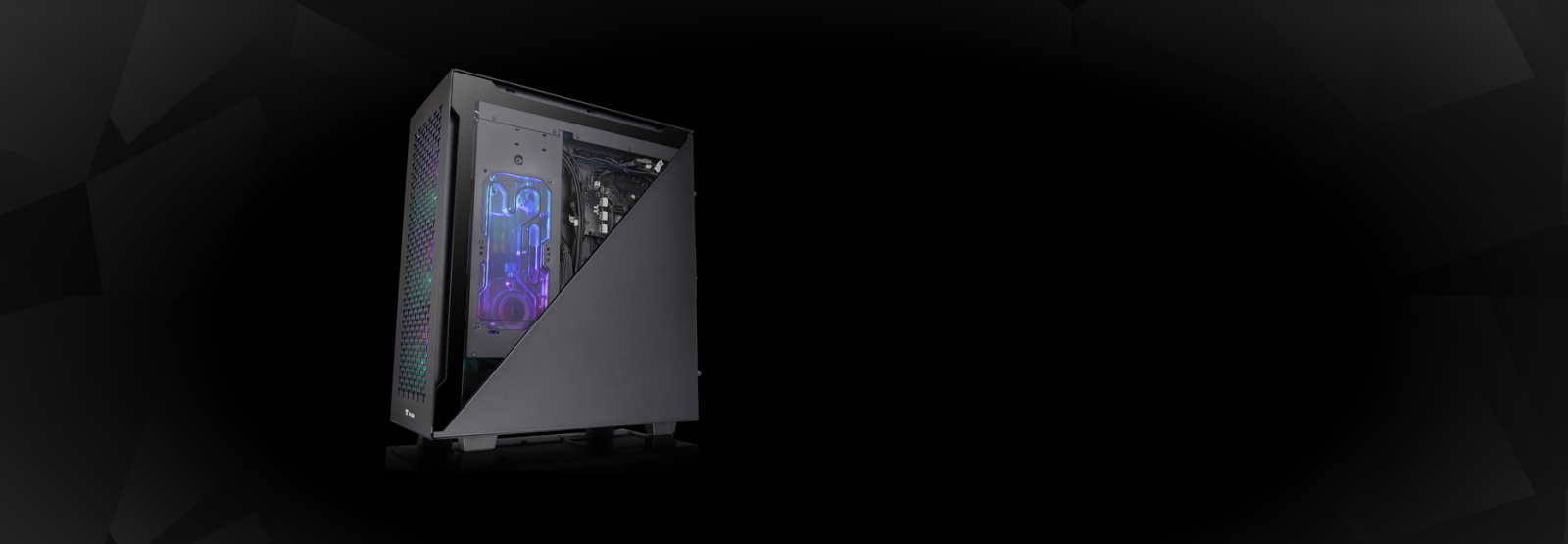

Thermaltake Divider 500 TG Air
The Divider 500 TG Air is an ATX mid-tower case that comes with one 120mm standard front fan, one 120mm standard rear fan, two airflow-optimized mesh panels at the front and top, two durable 3mm tempered glass windows on the left and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.
Symmetrical Triangular Side Panels Design – Left Side
The exceptional feature of the Divider 500 TG Air is that the four symmetrical triangular pieces are mixed and matched. We provide an extra triangular tempered glass window on the left side which enriches the appearance of the case when building the system. For example, users can can stick to the default form or have two triangular tempered glass windows on the left side, creating various viewing flavors.
Symmetrical Triangular Side Panels Design – Right Side
The extra triangular mesh panel on the right side enriches the appearance of the case as well as when building in the case. For example, users can stick to the default form or have two steel panels on the right side when installing fans on the motherboard side for air intake or exhaust depending on the PC layout.
Airflow-Optimized Panels
The Divider 500 TG Air comes with two large airflow-optimized mesh panels at the front and top for massive airflow performance.

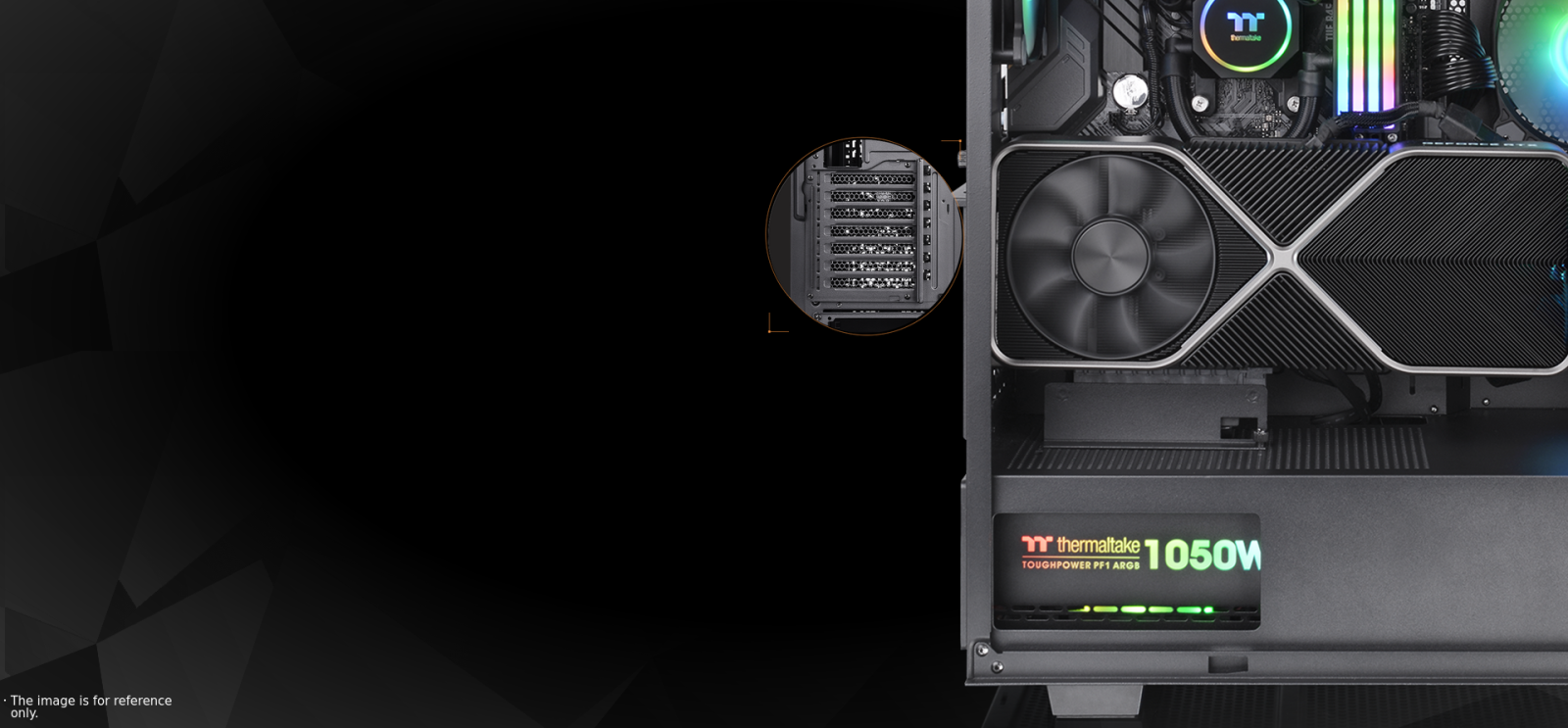

Display It Your Way
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.
Air Intake and Exhaust
The cooling performance of the Divider 500 TG Air is supurb. Two larg mesh panels at the front and top enable massive airflow. Moreover, the gap between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts could be located on the right side of the steel panel (two steel panels), rear, and top of case depending on user’s overall PC layout design. The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.
Excellent Hardware Support & Cooling Solution
The Divider 500 TG Air has excellent hardware expansion. It can support a CPU cooler with a maximum height of 170mm (two TG), VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), total of two 3.5” HDDs and five 2.5” SSDs or a total of seven 2.5” SSDs. When it comes to the cooling solution, the Divider 500 TG Air comes preinstalled with one 120mm standard front fan for cold air intake and one 120mm standard rear for hot air extraction. The case can hold up to two 140mm fans at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 500 TG Air is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 240mm on the top and on motherboard side, and a 120mm at the rear.
Specs:
CASE TYPE | Mid Tower |
Dimension (H x W x D) | 530 x 230 x 466 mm |
NET WEIGHT | 10.29 kg |
PANEL | 3mm Tempered Glass x 2 |
Color | Black |
MATERIAL | SPCC |
COOLING SYSTEM | Front(intake): 120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 |
Drive Bays -Accessible -Hidden | 2 x 3.5”, 5 x 2.5” or 7 x 2.5” |
EXPANSION SLOTS | 7 (Rotatable Patented Design) |
MOTHERBOARDS | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm |
RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 280mm, 1 x 140mm 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 240mm (vertical-installed GPU recommended), 1 x 120mm Rear: 1 x 120mm |
CLEARANCE | CPU cooler max height: 155mm (with one TG and one steel side panel) 170mm (with two TG) VGA max length: 360mm (with radiator) 390mm (without radiator) PSU max length: 180mm (with HDD Cage) 220mm (without HDD Cage) |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Thermaltake
Виж всички Компютърни кутии в категорията
Захранване: | Не |
---|---|
Прозорец: | Да |
Цвят: | Черен |
