Thermaltake CTE C700 TG ARGB
.jpg)
CTE Form Factor
Designed by Thermaltake

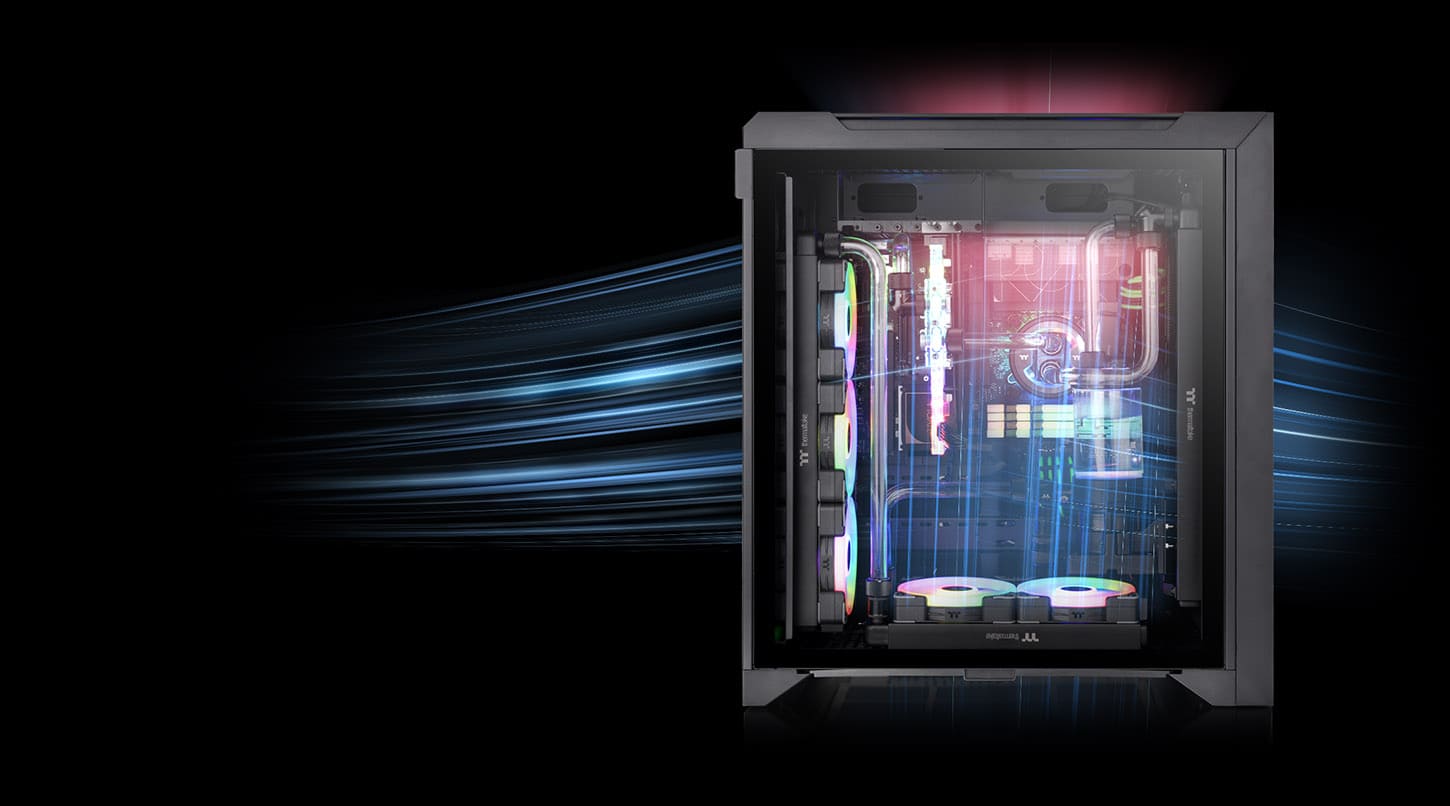

The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.
Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.
Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air
Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.

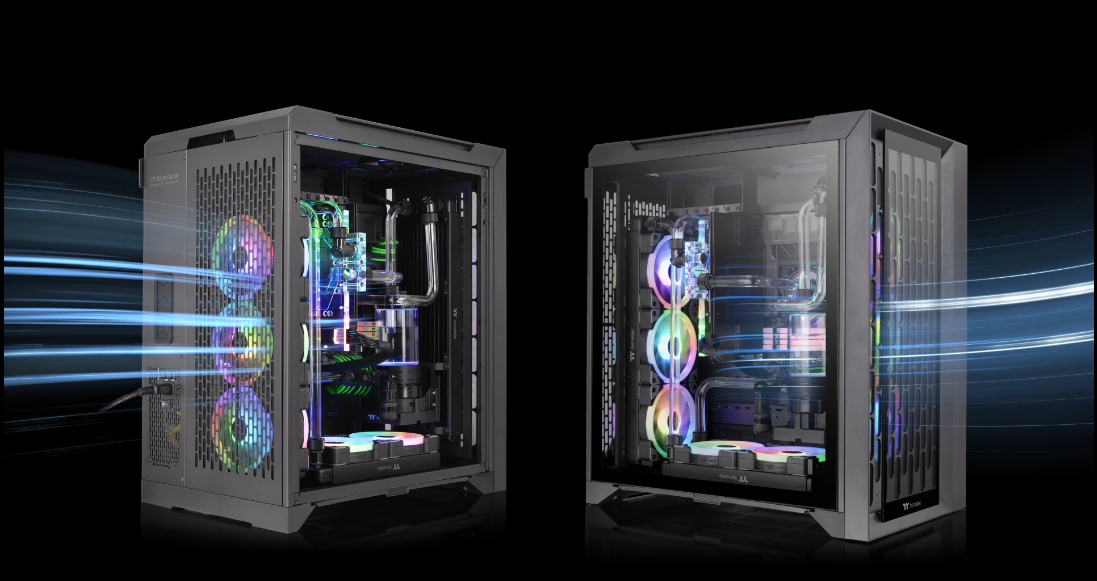

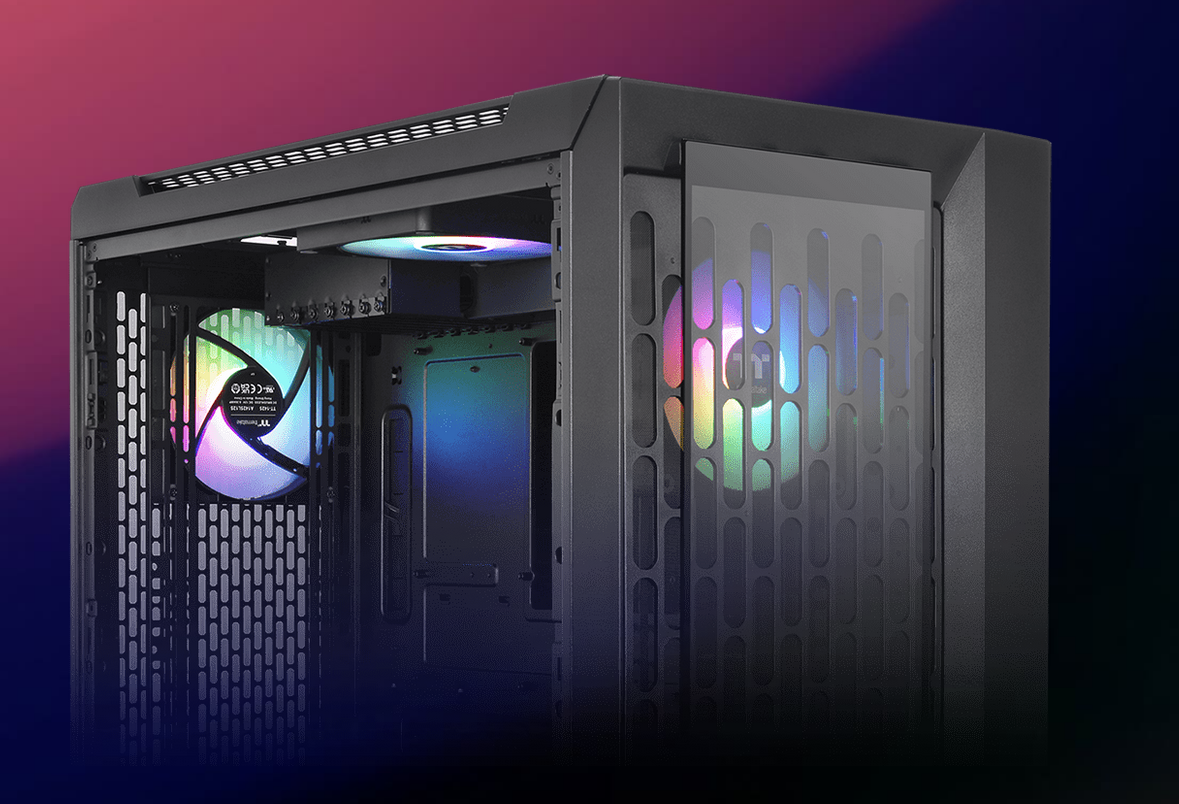

Maximum Radiator Support
The CTE C700 offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 360mm in length can be installed on the front, rear and bottom, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the front and rear, giving PC enthusiasts plenty of flexibility to create their ideal setup.
Display It Your Way
Equipped with two different PCI-E slots, CTE C700 TG ARGB gives you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system. If you choose to install your graphics card vertically, there is an extra riser cable bracket allows both 90 degree or 180 degree riser cable installation.
Everything You Need Is Located In One Place

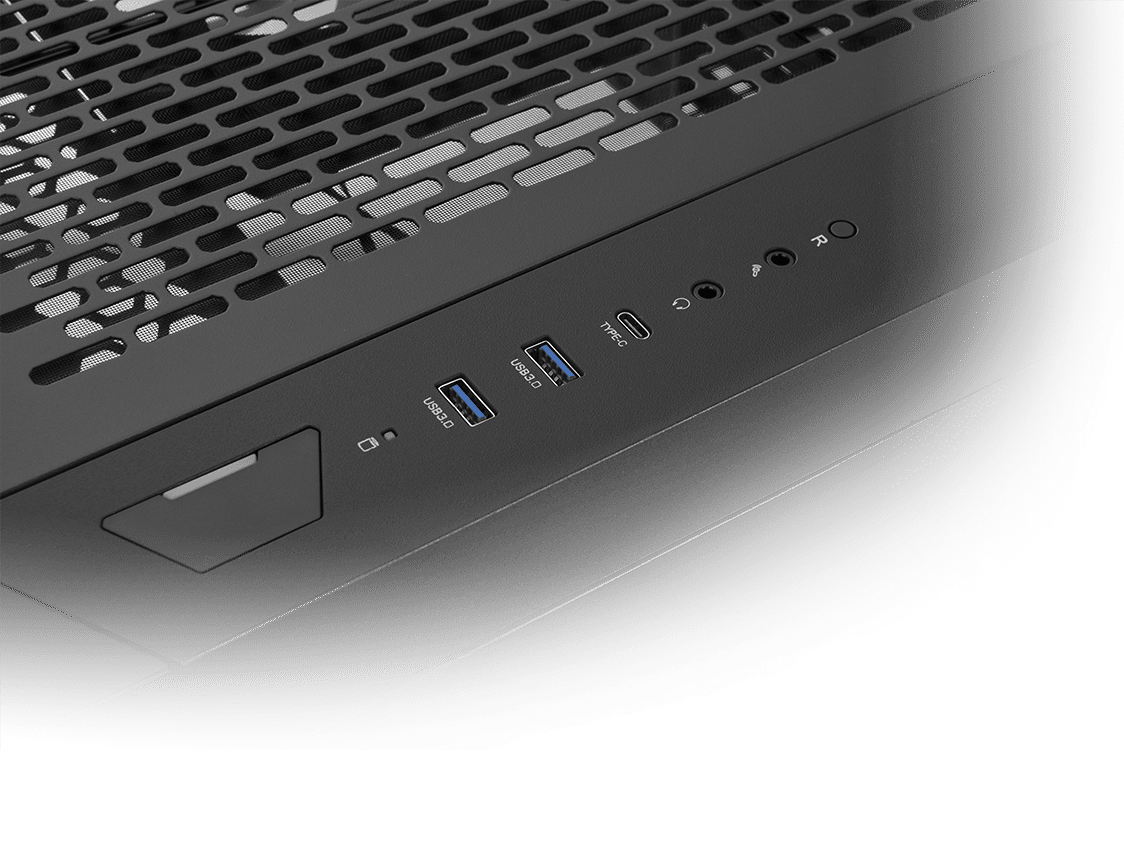

Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
Specs:
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 566.5 x 327.6 x 505.5 mm |
| NET WEIGHT | 15.6 kg |
| PANEL | 4mm Tempered Glass x 2 |
| Color | Black |
| MATERIAL | SPCC / ABS |
| COOLING SYSTEM | Front(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays | 7 x 3.5” or 6 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 190mm VGA max length: 327mm (With radiator) 410mm (Without radiator) PSU max length: 220mm |
