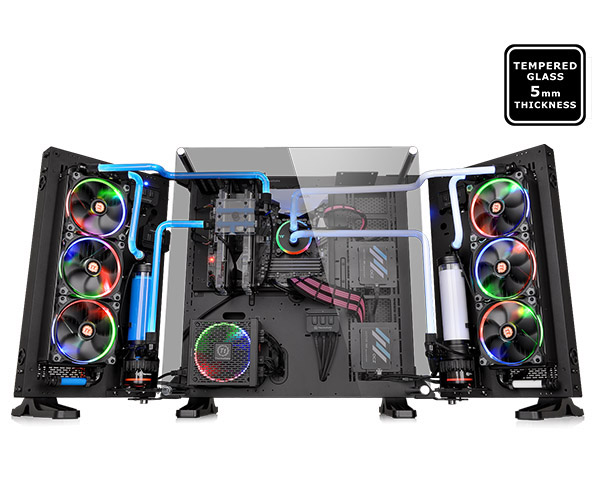

Thermaltake Core P7 Tempered Glass Edition Full Tower Chassis Thermaltake pushes the limit of wall-mount full tower to launch the Core P7 Tempered Glass Edition full tower chassis, which boasts an enlarged 5mm thick tempered glass window and, as the first ever in the industry, features four extended chassis installation angle options, allowing users to assemble the extended cases at a 45° / 90°/ 180°/ 270° angle to the front /rear side of the main chassis; plus 3-way placement layouts (wall mountable, horizontal laying and vertical standing) and full assembly capacity and expandability for ultimate air/liquid cooling system supporting, the Core P7 TG permits users limitless potential with how they want to configure their systems. |
![]() |
![]() |

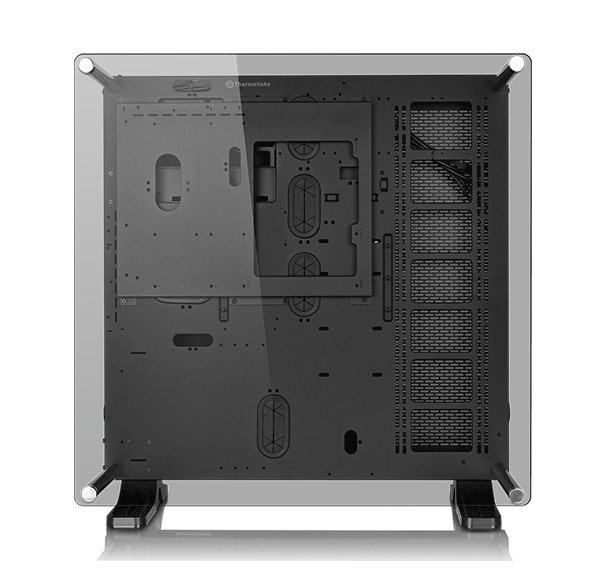

5mm Thick Tempered Glass Window with Gorgeous View The Core P7 TG is a true open frame case with viewing capability of showing full front and back sides. The tempered glass panel features 5mm thickness that meets the highest standards in the industry. Moreover, unlike any other cases on the market, the enlarged glass window permits users to fully display every interior component of the system and show off their dedication and skill set. |

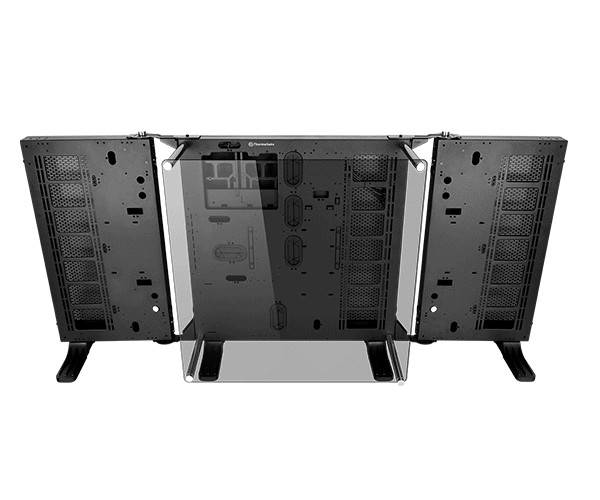

Ultimate Extended Chassis Assembly Flexibility The most notable aspect of the Core P7 TG is that, it delivers the ultimate extended chassis assembly flexibility thanks to four installation angle options: users get to install the extended chassis at 45° / 90°/ 180°/ 270° to the front/rear side of the main case. Such high installation flexibility elevates the potential for customization and makes it the kind that people will stare at in envy. |
![]() |
![]() |
3-Way Placement Layout The Core P7 TG is designed for use in three different ways: Wall-mount, vertical, and horizontal placement. Built for customization that reflects the makers’ personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance. Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds vertically or horizontally. |

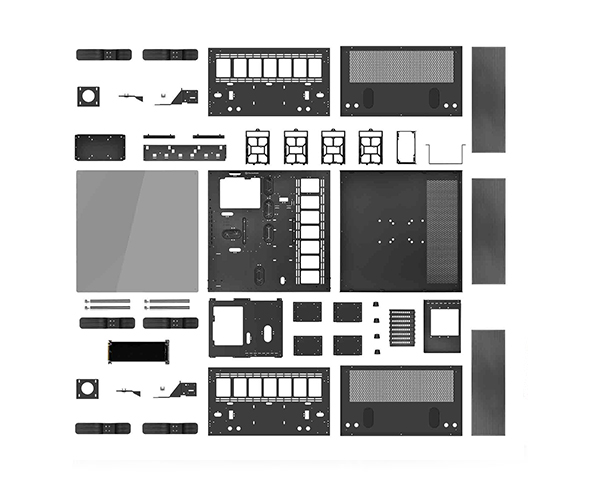

DMD - Dismantlable Modular Design The Core P7 TG open frame chassis enables user to freely build the system from the ground up with given modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps and enjoys installation in a breeze with Dismantlable Modular Design. |
![]() |
![]() |

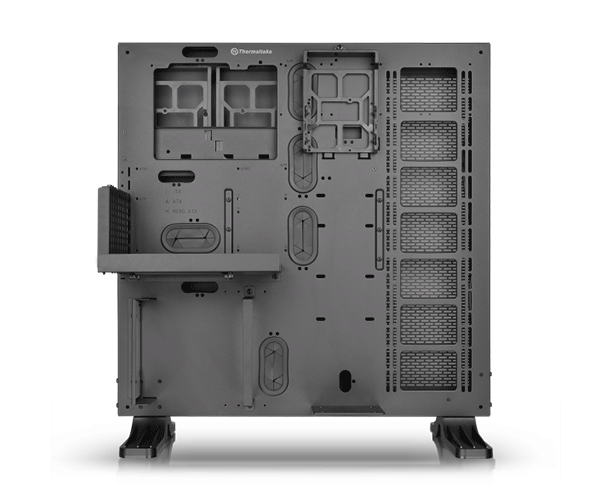

Versatile GPU & PSU Orientation Show off your graphic card and power supply with our special design bracket. The Show off your graphic card and power supply with our special design bracket. The Core P7 TG has included a Thermaltake Gaming PCI-E 3.0 X16 Riser Cable for you to choose the way you want to build the system. Further, the Core P7 TG also has the support for vertical PSU layout when ITX motherboard is applied. |

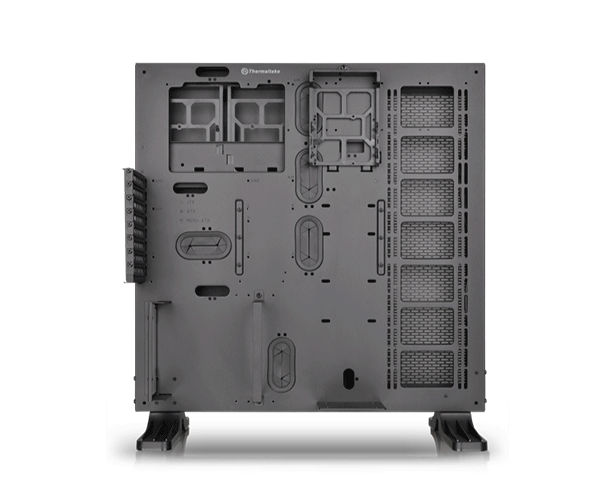

Remarkable Expansion Designed for high-end gaming system compatibility, the Core P7 TG main chassis supports motherboard up to standard E-ATX, a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 570mm in length without reservoir. Further, the Core P7 TG features a powerful storage expansion solution which, through easy installation, houses up to eight 3.5”/2.5” storage devices; besides, users can remove the drive bays to gain maximum space for cable management up to 45mm.? |
![]() |
![]() |

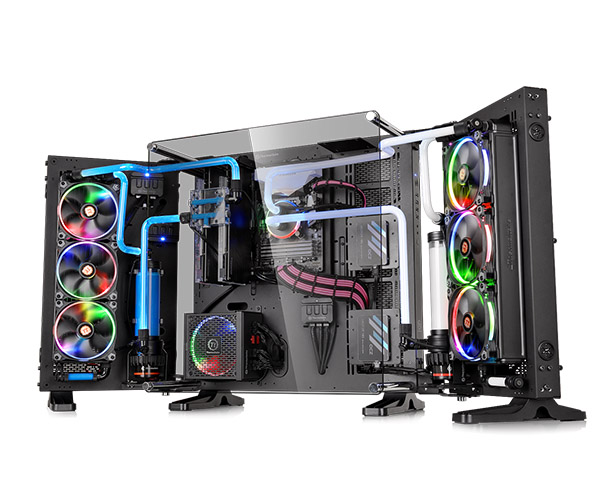

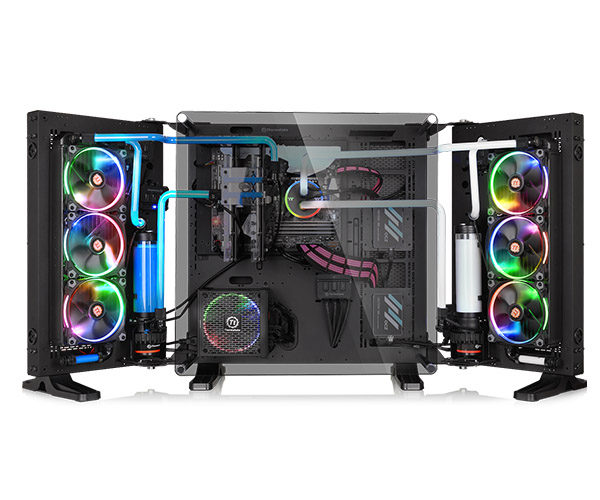

Supreme Liquid-Cooling Support The Core P7 TG has the capability to deliver an excellent cooling efficiency, and enables users to build a complete thermal solution, including DIY/AIO liquid-cooling systems and air-cooling units. Both of the main case and extended case support up to either a 480mm liquid cooling radiator or three 140mm case fans with a long graphic card at the same time. Users can also install an AIO cooler onto the case after mounting the AIO bracket. |
SPECIFICATION
P/N: CA-1I2-00F1WN-00
SERIES: Core
CASE TYPE: Full Tower
NET WEIGHT: 25.5 kg / 56.21 lb
COLOR: Black
DRIVE BAYS
Accessible: 1 x 3.5’’ or 2.5’’ (HDD tay) , 2 x 3.5’’ or 3 x 2.5’’ (HDD Bracket)
Hidden: 3 x 3.5’’ or 2.5’’ (Behind the M/B tray)
EXPANSION SLOTS: 8
I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
FAN SUPPORT
Main Chassis:: 4x 120mm , 3 x 140mm
Extended Chassis (Left or Right):: 4 x 120mm , 3 x 140mm
