Thermaltake
AH T200
Your Battle Begins Here

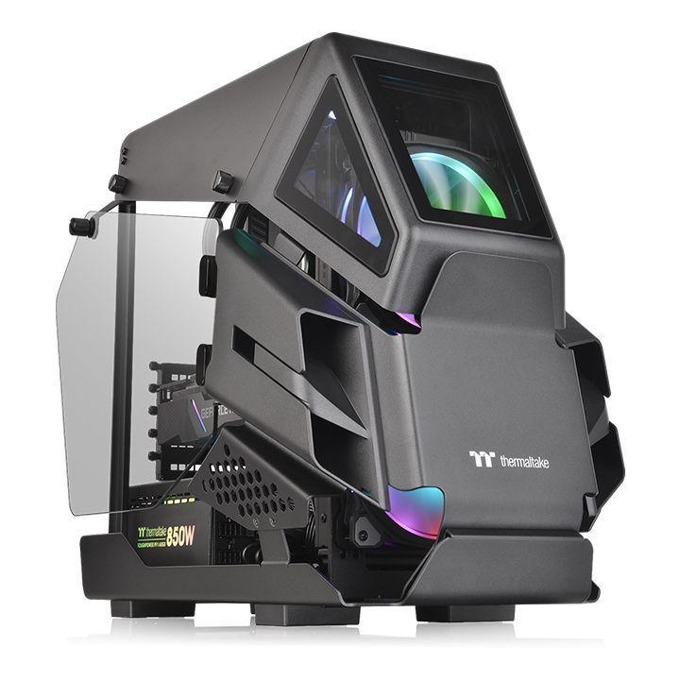

Thermaltake AH T200 Micro Chassis
The AH T200, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Micro Chassis is one-of-a-kind that all users will notice, love, and desire.
.jpg)
Specifications:
| SERIES | AH Series |
|---|---|
| MODEL | AH T200 |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch) |
| NET WEIGHT | 10.8 kg / 23.8 lb |
| SIDE PANEL | Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | N/A |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm) - |
| EXPANSION SLOTS | 5 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O PORT | USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm |
| CLEARANCE | CPU cooler max height: 150mm VGA max length: 320mm PSU max length: 180mm 3.5” HDD thickness limitation: 22mm |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Thermaltake
Виж всички Компютърни кутии в категорията
Thermaltake AH T200_snow_black.pdf| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Черен |
