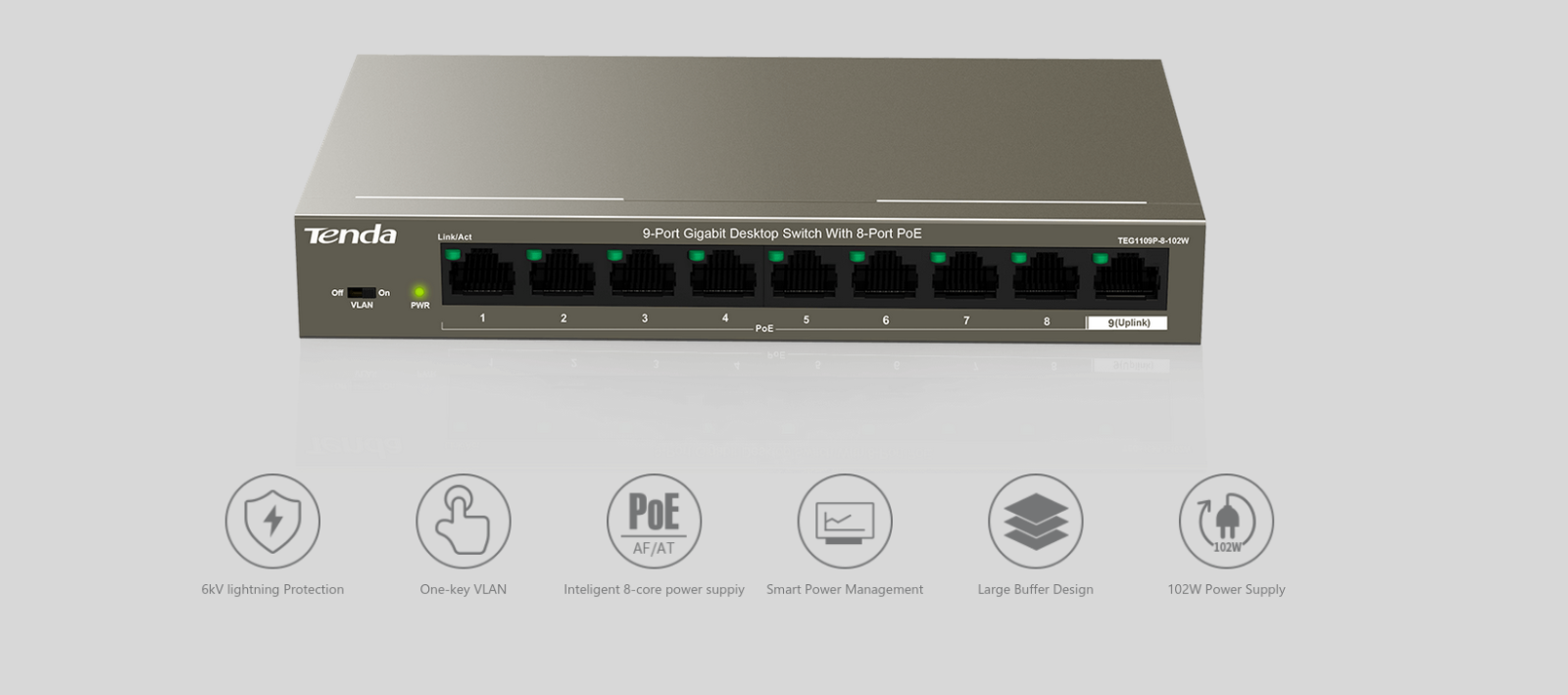

Tenda TEG1109P-8-102W

Born for Small and Medium-sized HD IP Surveillance Projects

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.

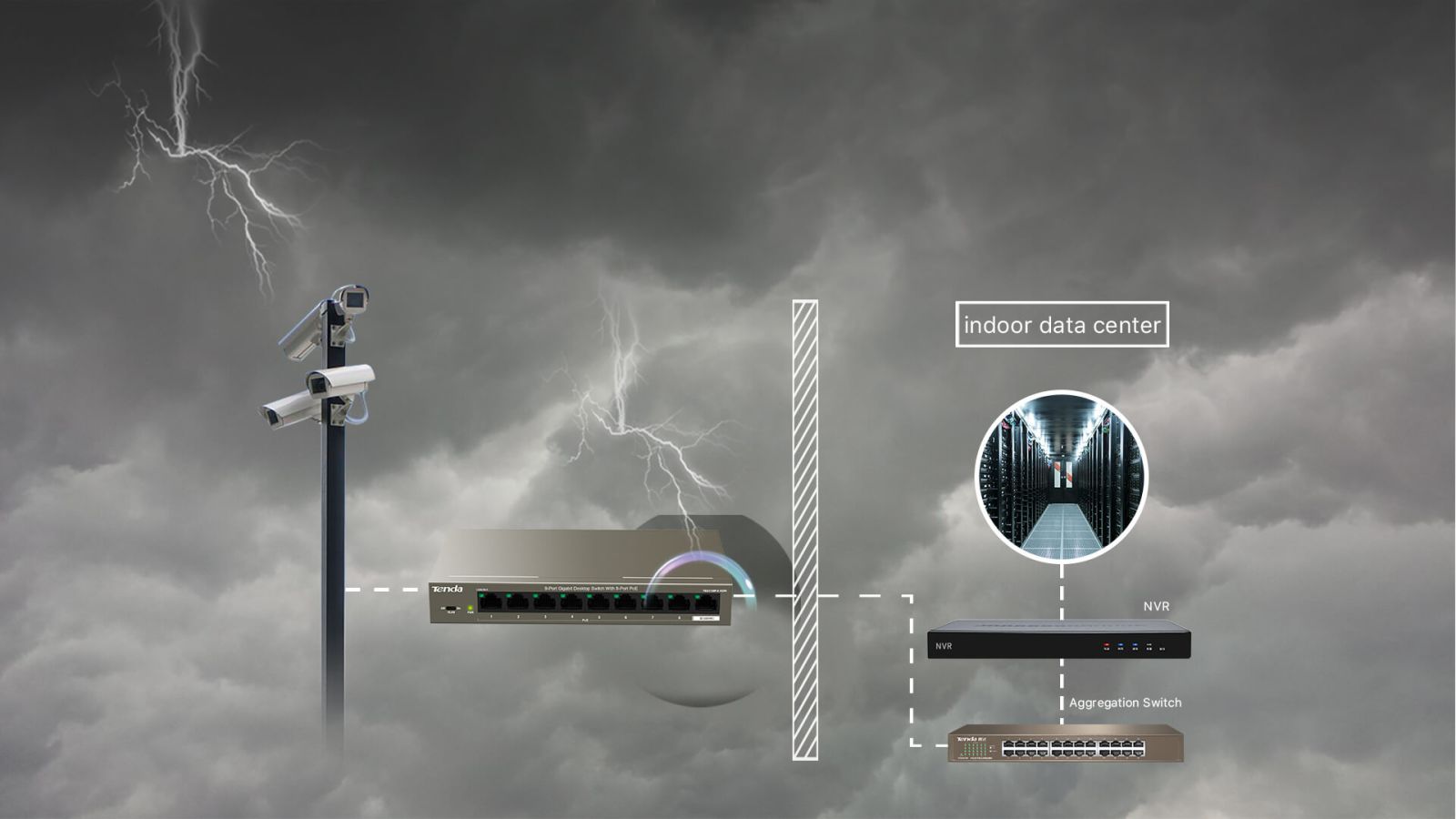

Excellent Lightning Protection

The switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable.

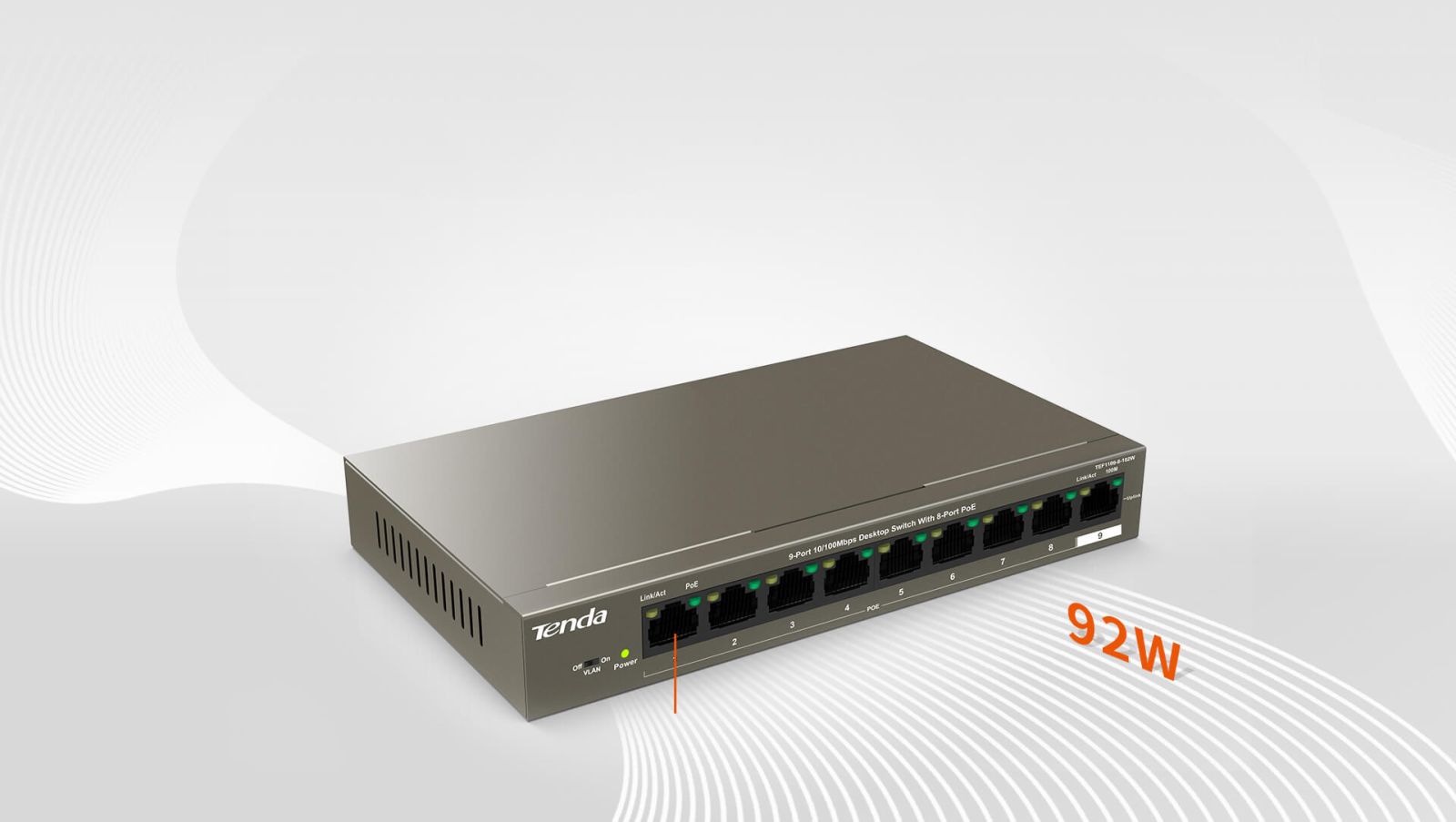

Outstanding PoE Power Supply

Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.





Specifications:



Hardware

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at



LED Indicator

9* Link/Ack LED indicators
1 * Power LED indicator



Interfaces

8*10/100/1000 Base-T Ethernet Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Ports(Data)



Transmission media

Recommended: CAT5/5e UTP or better



Fan quantity

N/A



Dimension

177.5mmx104.0mmx26.0mm



Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV



Forwarding mode

Store-and-forward



Switch capacity

18 Gbps



Packet forwarding rate

13.4Mpps



Buffer

2M



MAC address table

16K



Jombo frame

N/A



PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 92W



Power consumption

/



Input voltage

100-240V AC 50/60Hz
51V /2.0A DC（Power Adapter Output ）



Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support



Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Certification

FCC、CE、RoHS



Software

Funtions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
