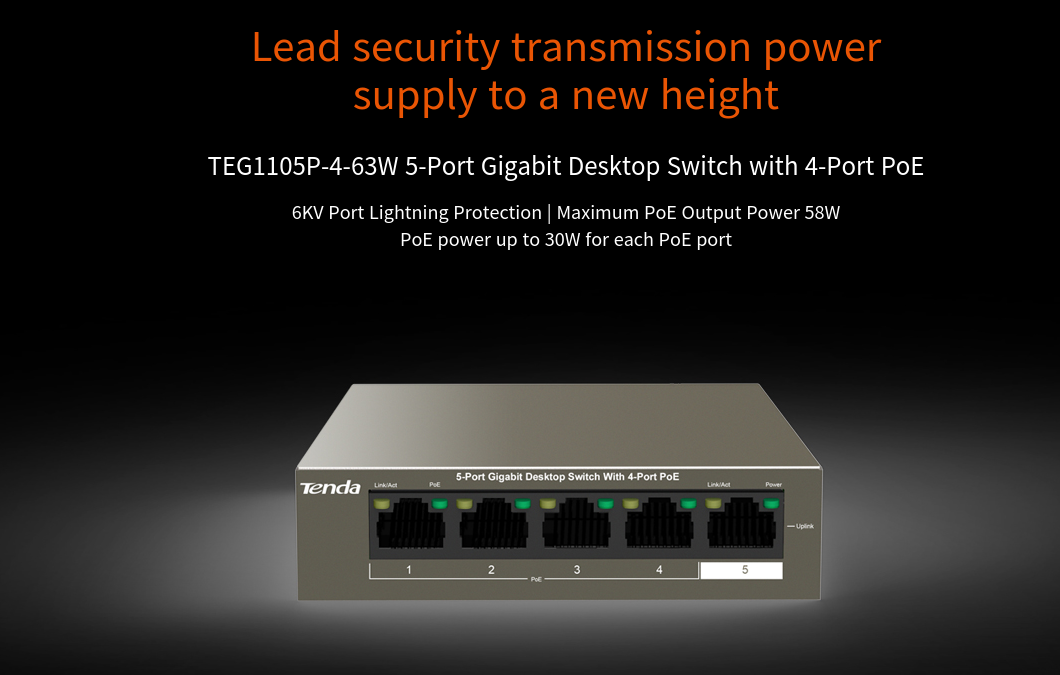

Суич Tenda TEG1105P-4-63W, 1000Mbps, 5 порта, 5x 10/100/1000 Mbps PoE, VLAN

Tenda TEG1105P-4-63W





One-Key VLAN

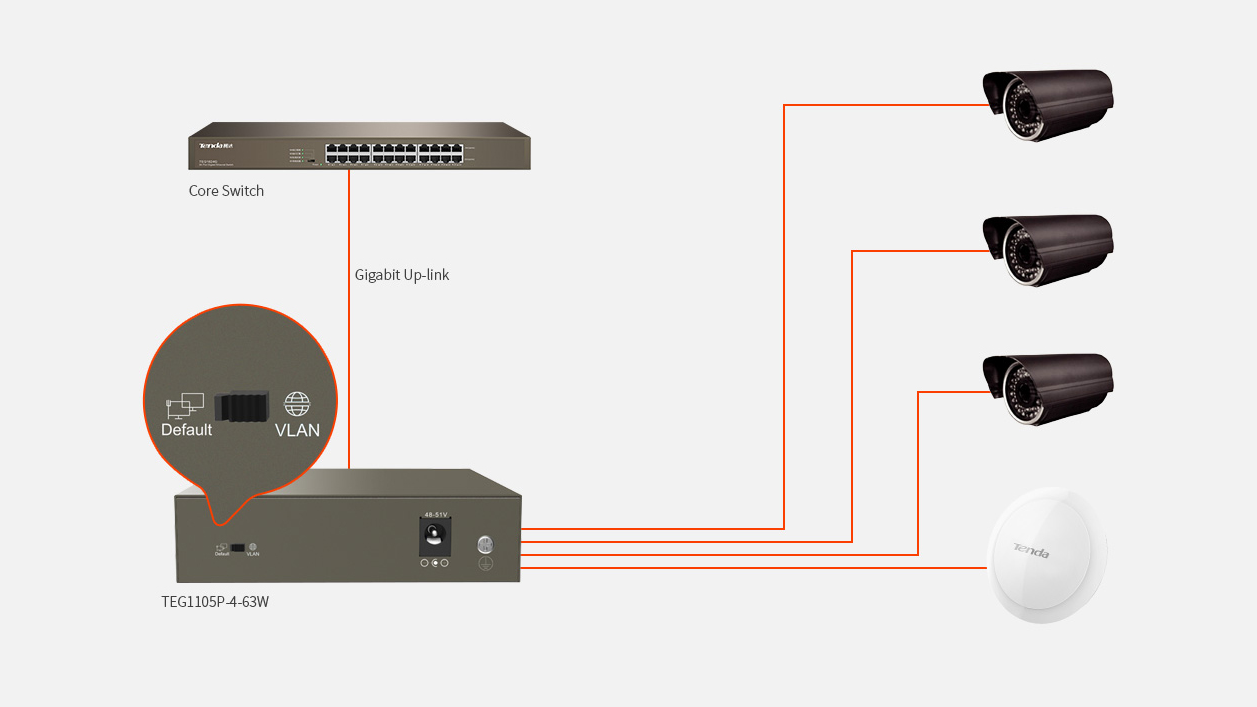

If "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.





6KV lighting protection PoE switch is the real monitoring private switch

In real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally.





58W PoE power supply

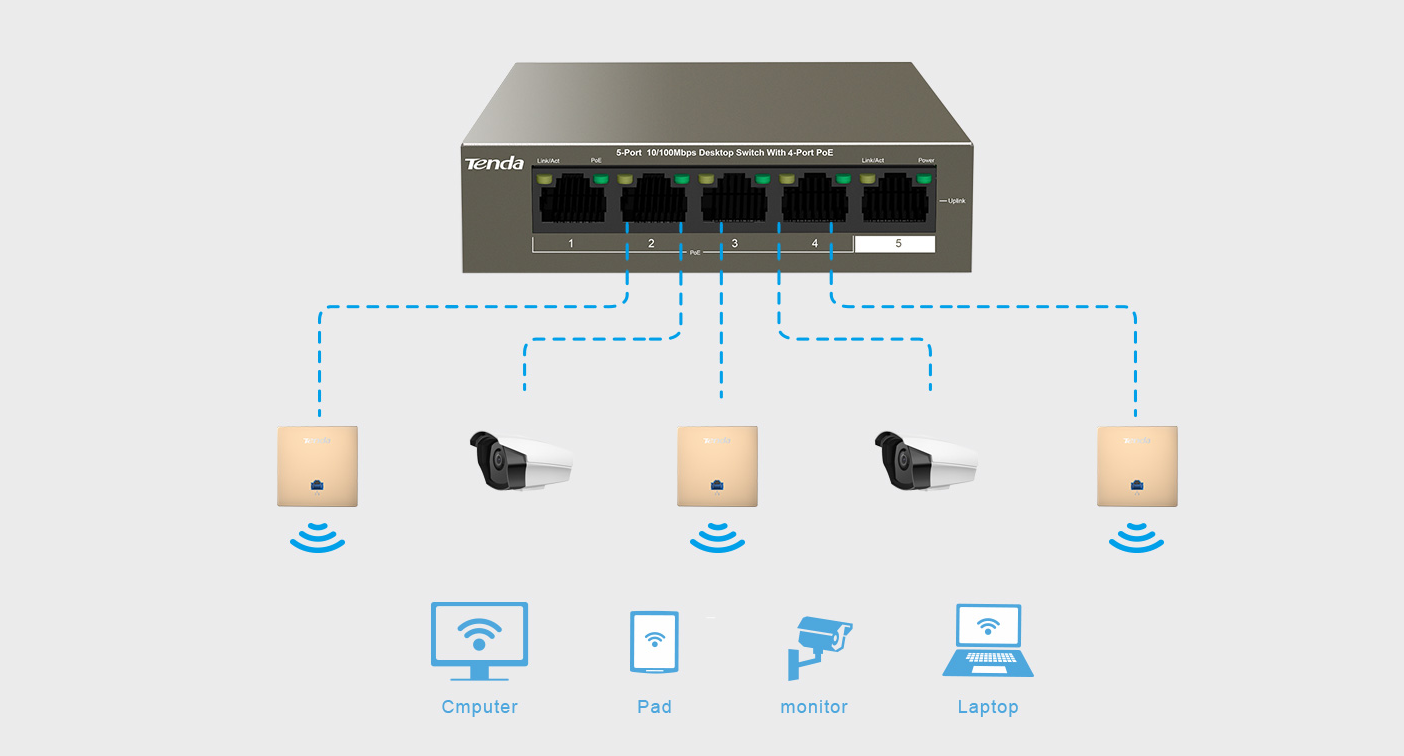

Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.





Specifications:

Network standards	IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator	5* Link/Ack LED indicators  1 * Power LED indicator
Interfaces	5*10/100/1000 Base-T Ethernet Ports(Data/Power)  1*10/100/1000 Base-T Ethernet Port(Data)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Dimension	100.0mmx100.0mmx27.0mm
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD:  Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	10 Gbps
Packet forwarding rate	7.44Mpps
Buffer	1M
MAC address table	2K
Jumbo frame	N/A
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 58W
Power consumption	/
Input voltage	100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ）
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing  Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS
Funtions	Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
