Tenda TEG1008D
TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest Broadcom chip , fanless and greenlumi design , TEG1008D is the ideal choice for small & medium enterprises,schools , small offices to upgrade gigabit network.
Main Features
>> Compliant with IEEE802.3, IEEE802.3u , IEEE802.3x,IEEE802.3ab Ethernet standard.
>> Provides 8 10/100/1000Mbps auto-negotiation RJ45 Ports.
>> Plug and play without configuration.
>> Provides up to 16Gbps back panel bandwidth and supports non-blocking wire-speed forwarding.
>> Provides LEDs to easily monitor link speed , activity and find problems in time.
>> Supports IEEE802.3x full duplex flow control and half duplex backpressure flow control.
>> Supports loop detection and loop prevention.
>> Supports up to 4KV lightning-proof for each port.
>> Support desk & wall-mounting installation.
>> Full-metal & larger shell ensure effective cooling.
Improve transmission efficiency
Support 9K jumbo Frame to speed up the transmission of large files and improve transmission efficiency.
![](/images/custom/site/20240206095446.jpg)

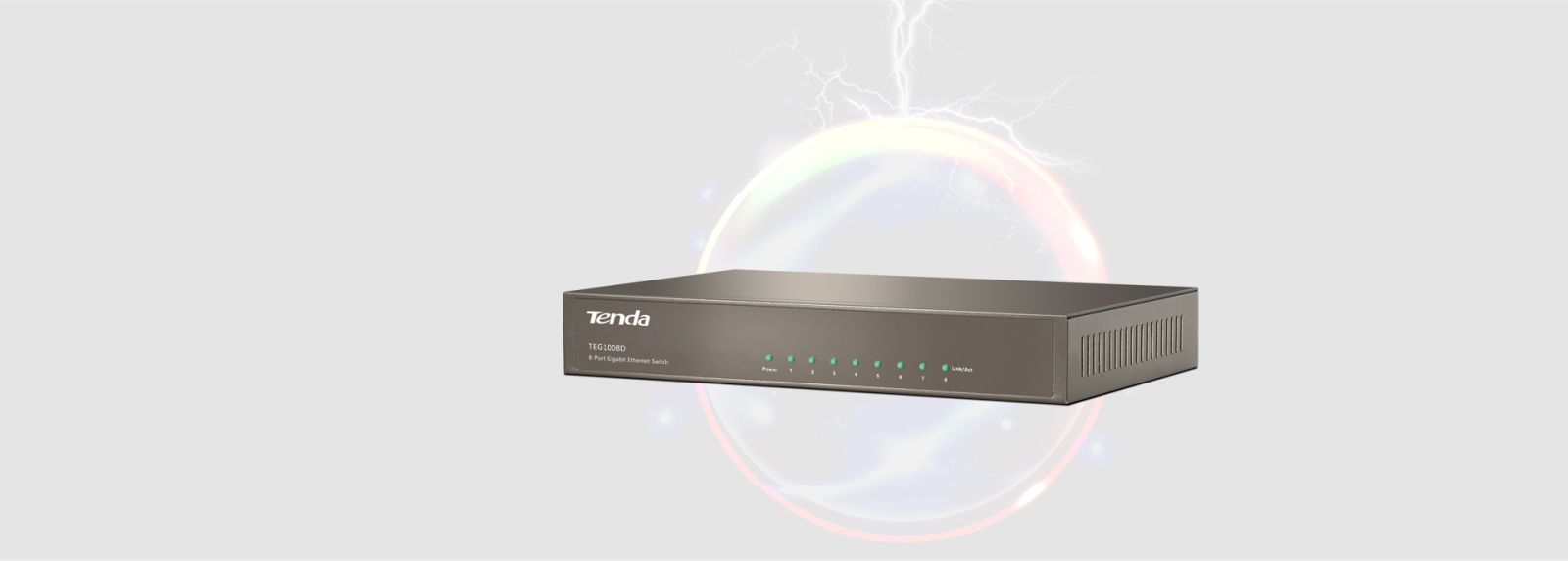

Professional integrated lighting proof circuit with inductive lightning protection(≥4KV).
![](/images/custom/site/20240206095508.jpg)

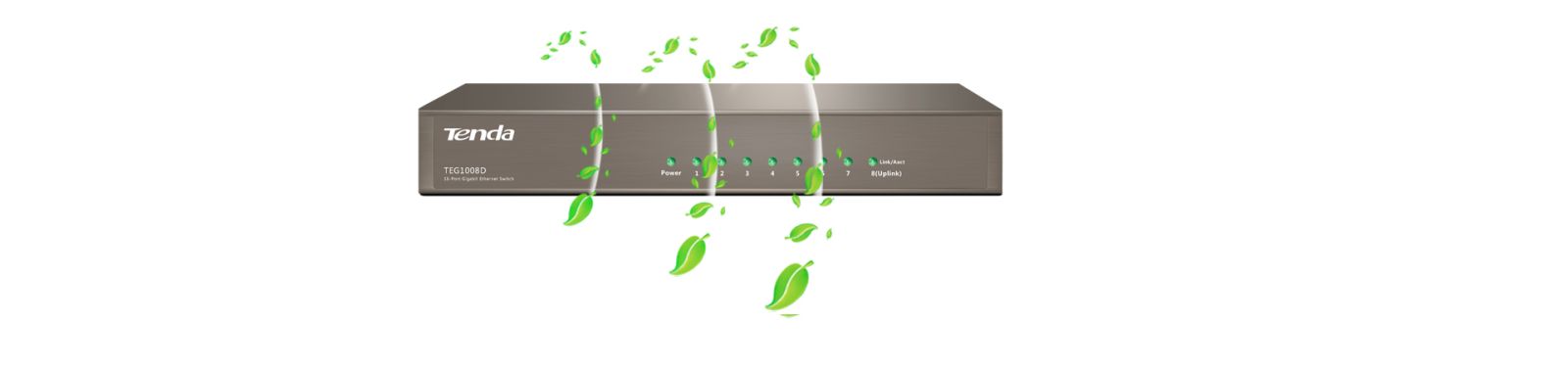

Supports desktop & wall-mounting design; Full-metal & larger shell ensure effective cooling.
![](/images/custom/site/20240206095519.jpg)
Specifications:
Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
LED Indicator | 1* Power, 8* Link/Act |
Interfaces | 8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
Transmission media | Recommended: CAT5/5e UTP or better |
Fan quantity | N/A |
Dimension | 187.0mm×107.0mm×33.0mm |
Material | Metal |
Level of protection | Lightning protection for ports: N/A Lightning protection for power: N/A ESD: Air discharge: ±8kV Contact discharge: ±6kV |
Forwarding mode | Store-and-forward |
Switch capacity | 16Gbps |
Packet forwarding rate | 12.00Mpps |
Buffer | 192KB |
MAC address table | 4K |
Jumbo frame | N/A |
Power | Input: 100-240V AC 50/60Hz Output: 9.0V 1.0A ( External Power Adapter ) |
Power consumption | Max:<4.5W |
Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
Certification | CE, FCC, RoHS |
Protocols | CDMA/CD |
MAC address learning | Auto-Learning and Auto-Aging |
Funtions | plug-and-play |
