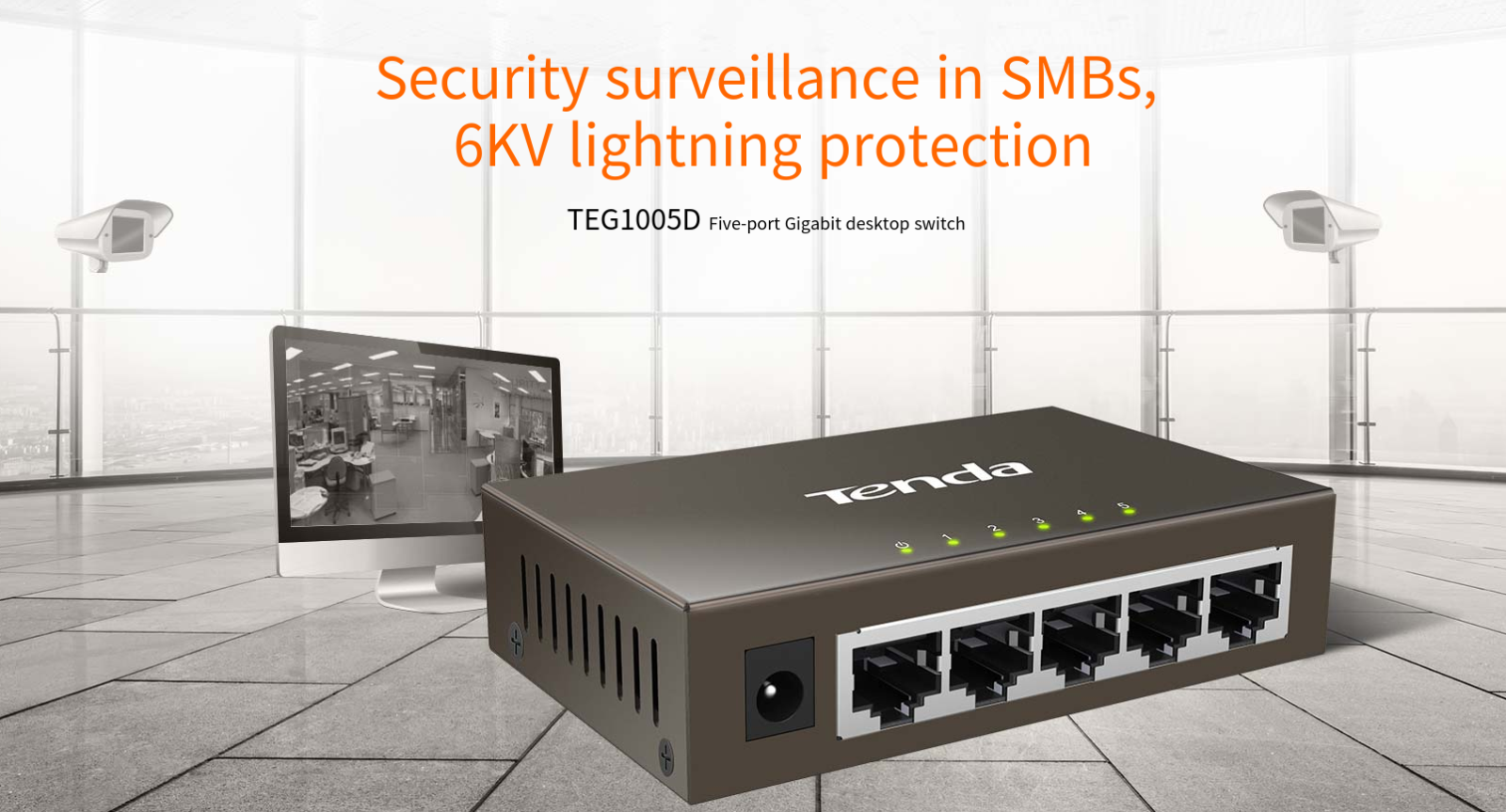

Tenda TEG1005D
Lightning protection for each port
Integrated with a professional lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability.
Extraordinary heat dissipation
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance.
Stay connected for 7x24 hours
5 * 10/100/1000Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24 hours.
Specifications:
| Network standards | IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab |
| LED Indicator | 1 * Power，5 * Link/Act |
| Interfaces | 5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | N/A |
| Dimension | 100.0mmx64.0mmx23.0mm |
| Material | Metal |
| Level of protection | ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1Mb |
| MAC address table | 2K |
| Jombo frame | 15K |
| Power | Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter ) |
| Power consumption | Max:<2.5W |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC address learning | Auto-Learning and Auto-Aging |
| Funtions | plug-and-play |
Виж още Суич Tenda
Виж всички Суич в категорията
Технически характеристики
| Брой портове: | 5 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Не |
