Суич Tenda TEF1106P-4-63W, 6x порта, 100Mbps, 6x 10/100Mbps RJ-45(4x PoE)

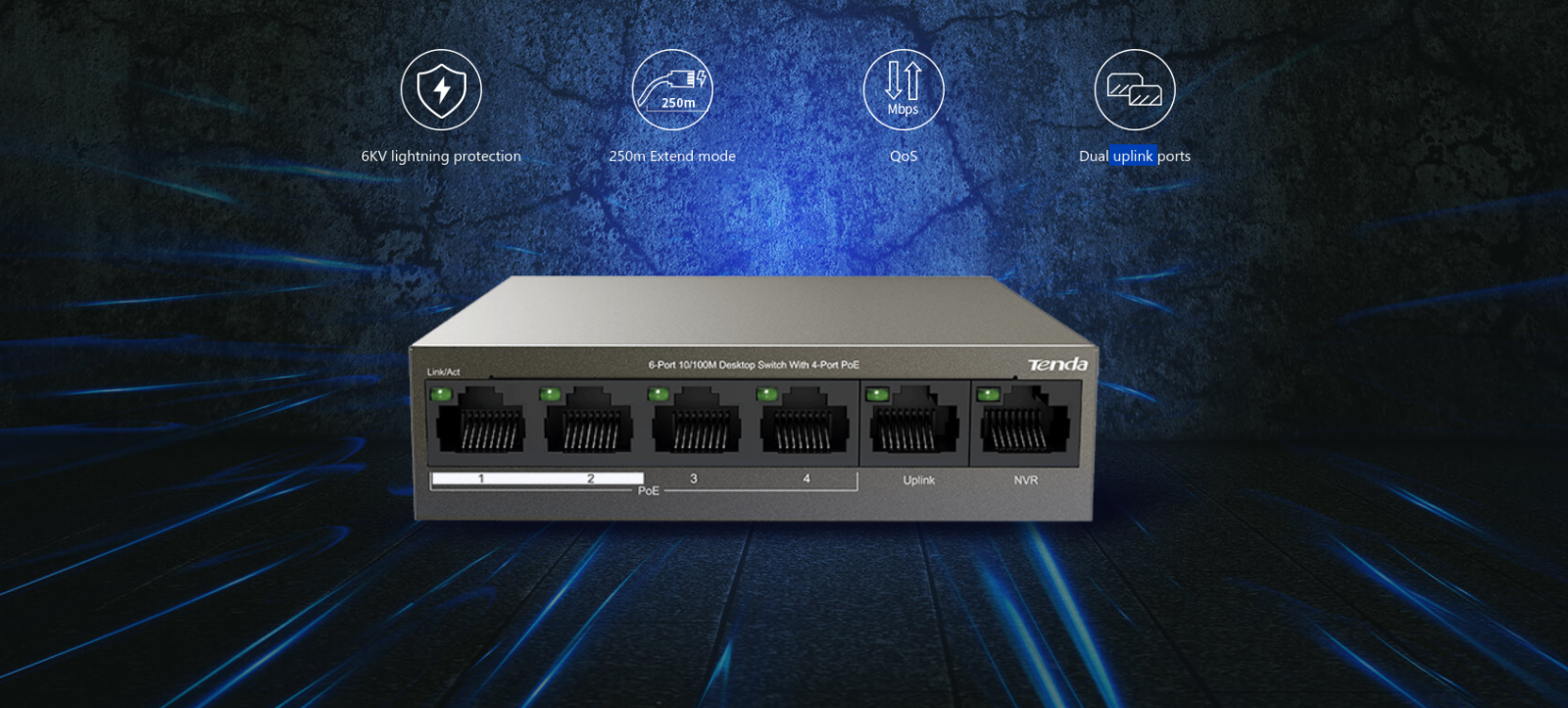

Tenda TEF1106P-4-63W

Dedicated for Surveillance With Uplink & NVR double uplink ports and QoS

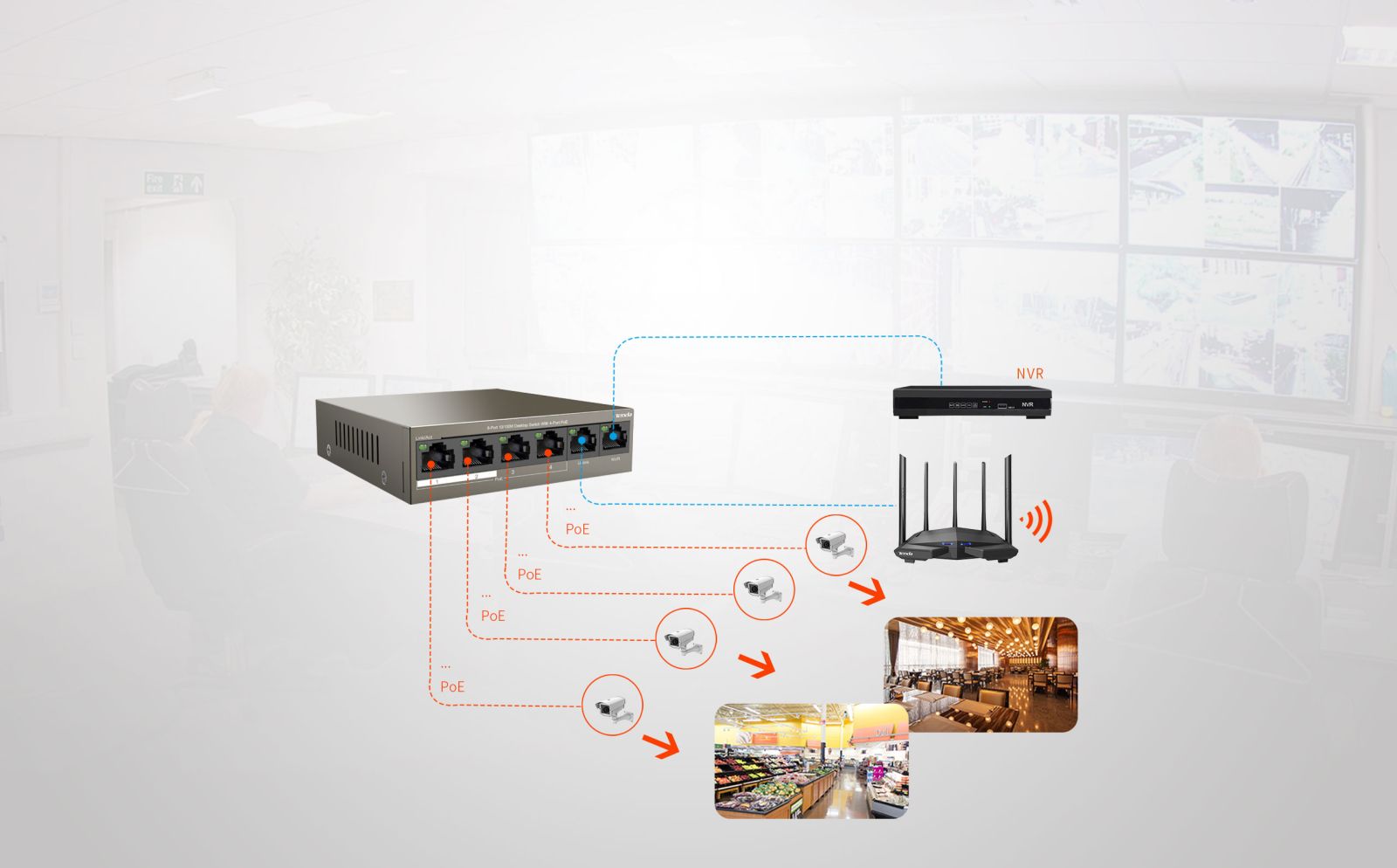

Dual uplink port, more convenient for connecting Router and NVR

TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. TEF1106P-4-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

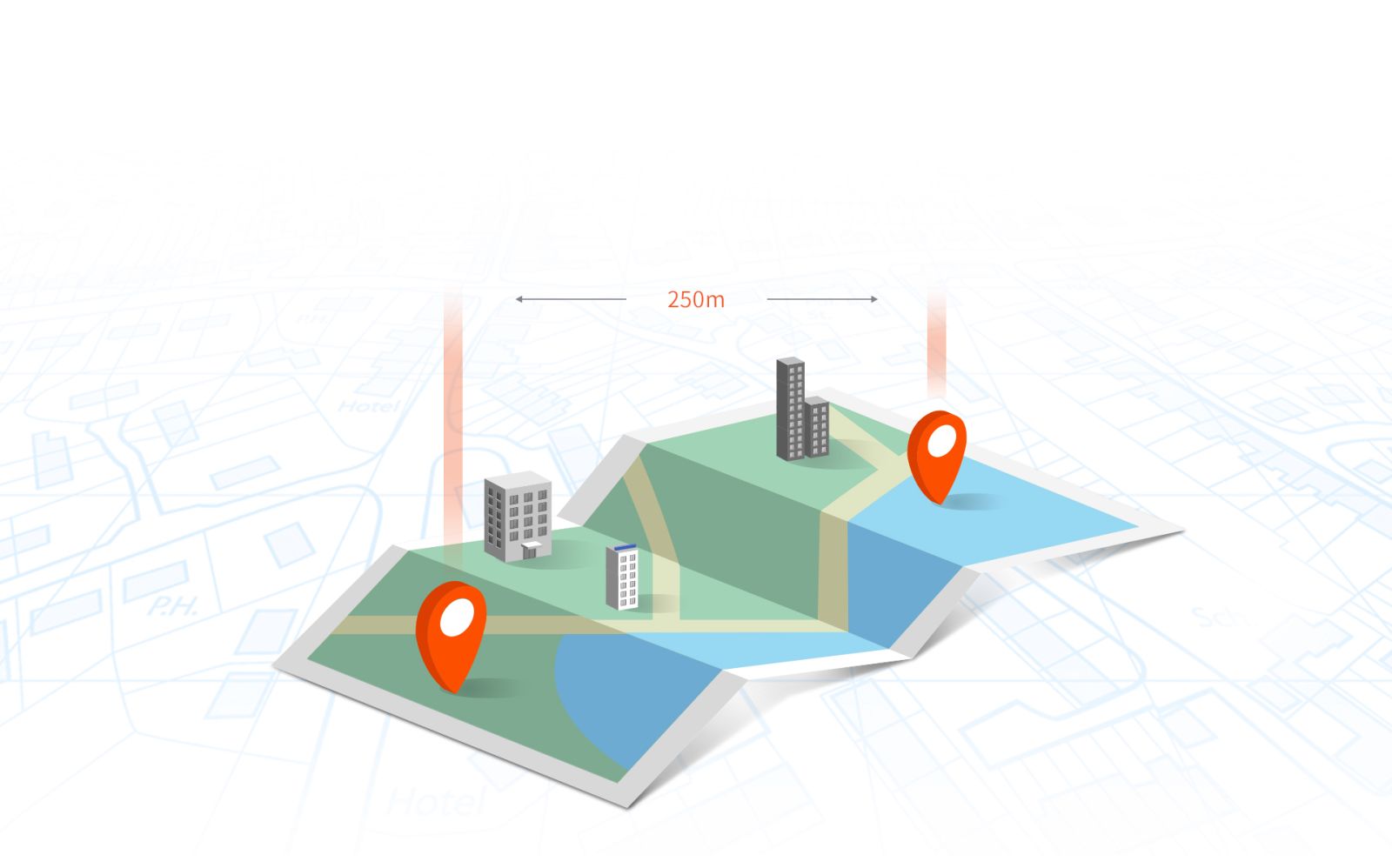

Up to 250 meters long distance transmission under the Extend Mode，beyond hundred meters transfer limitation

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1106P-4-63W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.

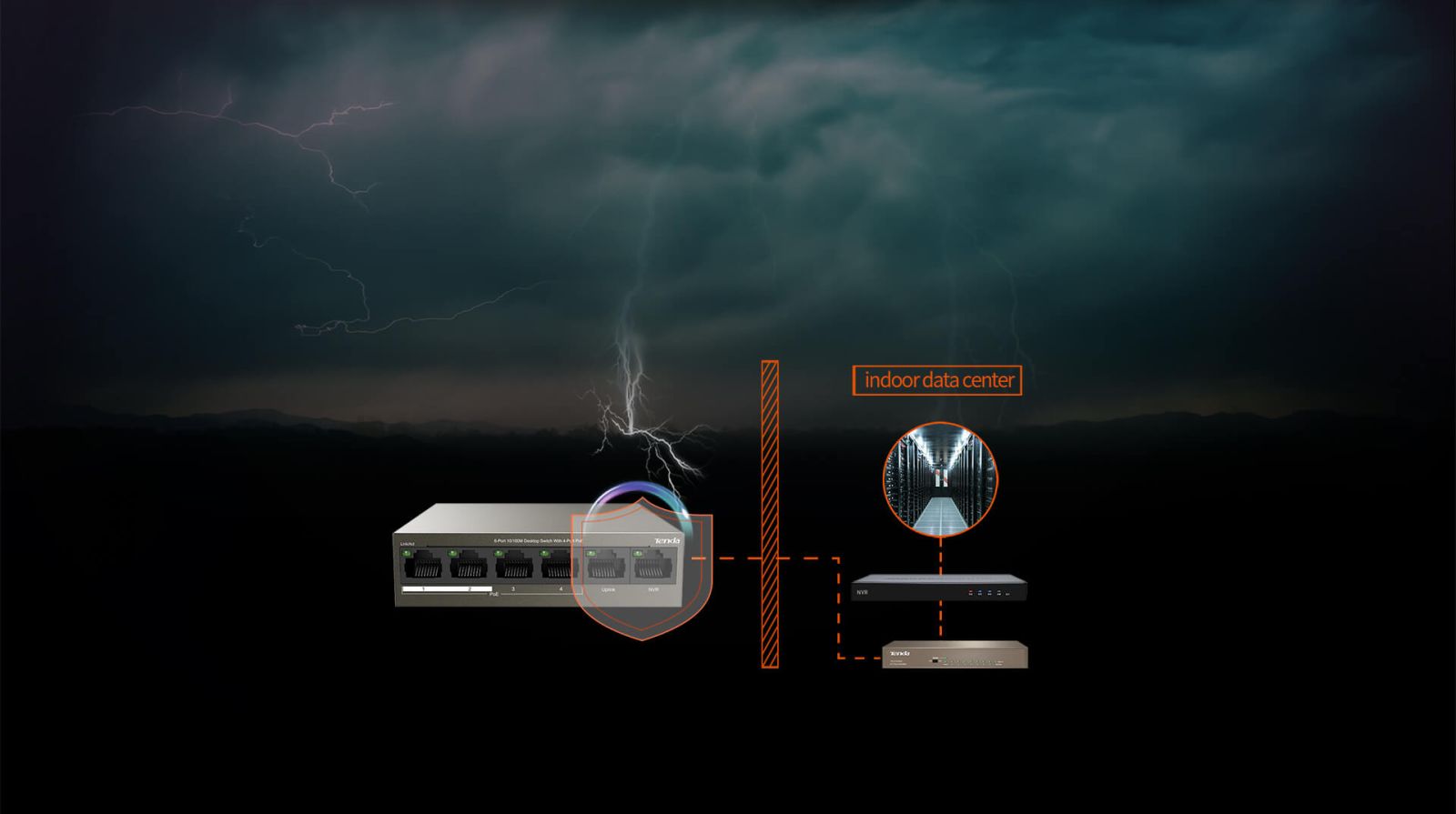

Excellent lightning Protection

TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.

Specifications:

Hardware

Network standards

IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

6 * Link/Ack LED indicators
1 * Power LED indicator

Interfaces

4*10/100 Base-TX Ethernet ports
(Data/Power)
2*10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

100.0mmx100.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.2 Gbps

Packet forwarding rate

0.89Mpps

Buffer

448K

MAC address table

1 K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 63W

Power consumption

/

Input voltage

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Funtions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).
