Tenda TEF1005D
TEF1005D Five-port Fast Ethernet Desktop Switch
Extraordinary heat dissipation
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance.

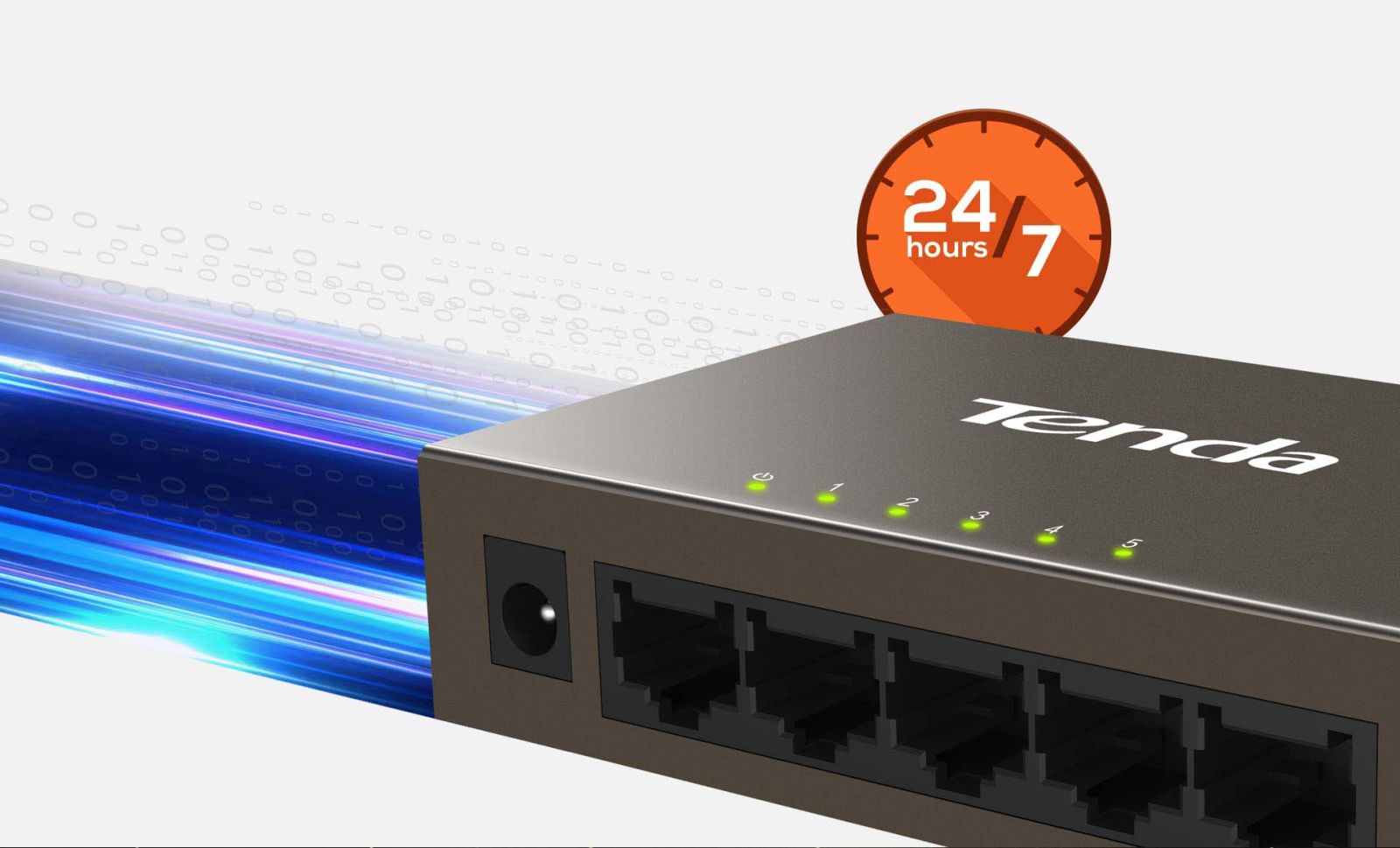

Stay connected for 7x24 hours
5 * 10/100Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24 hours.
User-friendly design
RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
Specifications:
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| LED Indicator | 1* Power, 5* Link/Act |
| Interfaces | 5*10/100 Base-TX Ethernet ports (Auto MDI/MDIX) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | N/A |
| Dimension | 100.0mm×64.0mm×23.0mm |
| Material | Metal |
| Level of protection | ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1Gbps |
| Packet forwarding rate | 0.74Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| Jombo frame | N/A |
| Power | Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter ) |
| Power consumption | Max:<1.6W |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC address learning | Auto-Learning and Auto-Aging |
| Funtions | plug-and-play |
Виж още Суич Tenda
Виж всички Суич в категорията
Технически характеристики
| Брой портове: | 5 |
|---|---|
| Максимална скорост: | <1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Не |
