Tenda S16
The Tenda S16 16-Port 10/100Mbps Switch provides simple and ideal solution to expand network for large home, building, leased or rented house and SMB. S16 connects with a router and connect with fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy plastic case with compact size, it is the best choice for desktop installation.
![](/images/custom/site/2023-10-18_13_28_54.jpg)
Space-saving Design
The switch is solidly built in small size that is easy to position on any flat surface with limited space.
![](/images/custom/site/2023-10-18_13_29_23.jpg)

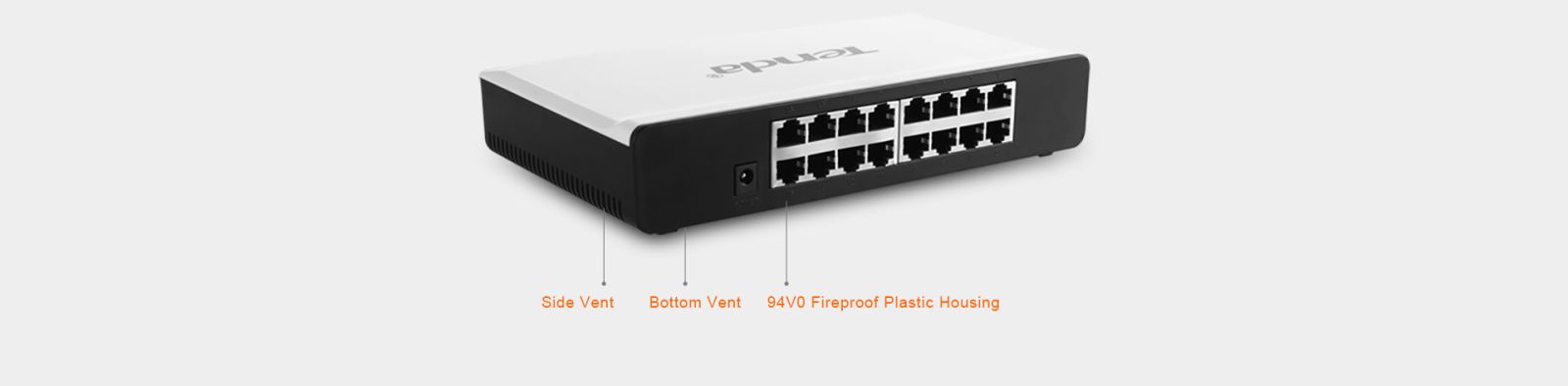

Secure &Reassuring
The switch is built with reduced heat and a longer product life without sacrificing performance or functionality in mind. With superb heat dissipation capability and manufactured with fire proof materials, the switch maintains optimum performance even in extreme environment.
![](/images/custom/site/2023-10-18_13_29_37.jpg)
Specifications:
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1* Power, 16* Link/Act
Interfaces
16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
218.0mmx135.0mmx41.6mm
Material
Plastic
Level of protection
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
3.2Gbps
Packet forwarding rate
2.38Mpps
Buffer
1.25Mb
MAC address table
4K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)
Power consumption
/
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
Виж още Суич Tenda
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 16 |
---|---|
Максимална скорост: | <1 Mbps |
Стандарт: | 802.3x |
Управляем: | Не |
