PowerColor Red Devil OC
Red Devil for the Best 1080p Gaming Experience
Based on AMD’s latest RDNA2 architecture, the PowerColor Red Devil Radeon™ RX 6650 XT not only inherits the merciless devilish look from existing Red Devil RX6000 series, but also our committed spirit in bringing out the best we can offer in products of all levels. With a performance upgrade from previously successful RX 6600 XT series and the enhanced cooling efficiency, PowerColor Red Devil Radeon™ RX 6650 XT is surely to provide gamers an uncompromising experience at 1080p gaming.
Engineered for Performance and Reliability
PowerColor Red Devil RX 6650 XT is equipped with a dual fan design (100mm x 100mm), a cooler with 4X6Φ nickel plated heatpipes, and a large nickel plated copper base. Moreover, Red Devil RX 6650 XT features a state-of-the-art PCB design utilizing an 8+2 phase VRM with DrMOS, high polymer solid capacitors, and an 8+6 pin PCI-E connectors to offer stable power supply.
|

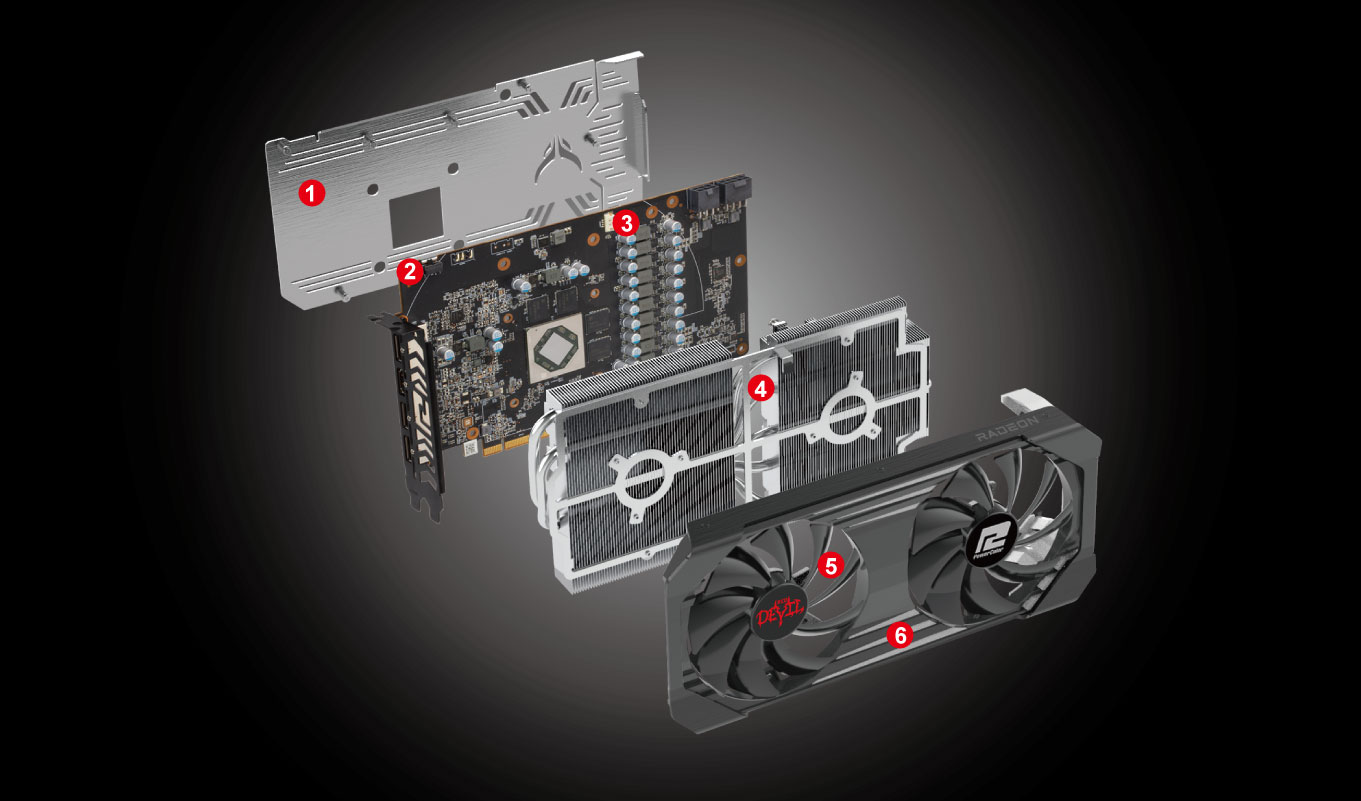

1.Back Plate |
2.Dual BIOS |
3.DrMOS |
|
4.Cooler |
5.Dual Fan |
6.RGB |
Two-Ball Bearing - 4X greater longevity
The cooling fan utilizes two-ball bearing technology, increasing the longevity of the fans by up to 4 times.
Mute Fan Technology - 0db –Silent gaming
Mute Fan Technology intelligently turns off the fan below 60℃, providing silent gaming during medium and low load while reducing power consumption.

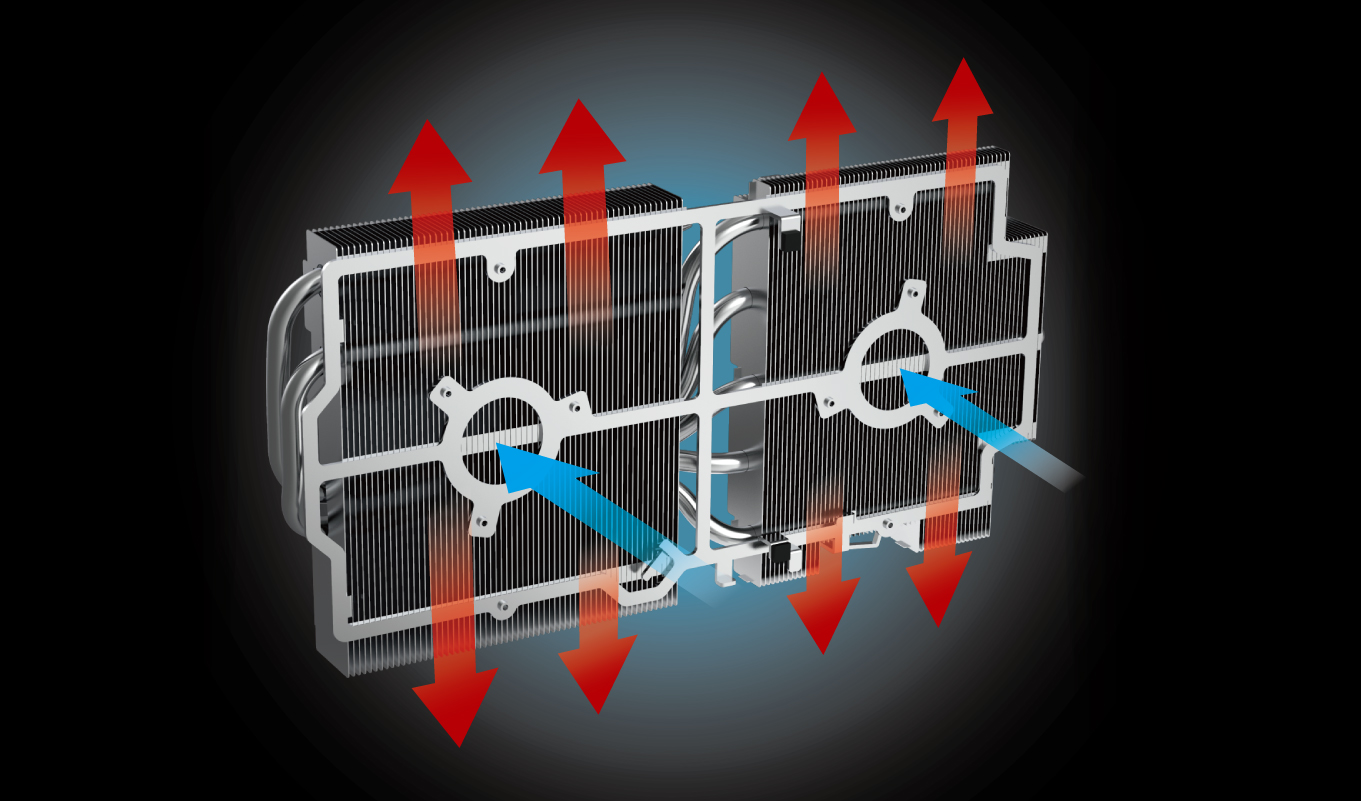

Dominant Dual-Fan Cooler for Ultimate Gaming Experience
Red Devil RX 6650 XT is equipped with an advanced and outstanding cooler as well as a set of 4X6Φ nickel plated copper heatpipes to ensure the efficiency of heat spreading to the heatsink. More fin arrays on the heatsink enlarges the surface area for even more heat dissipation and performance.

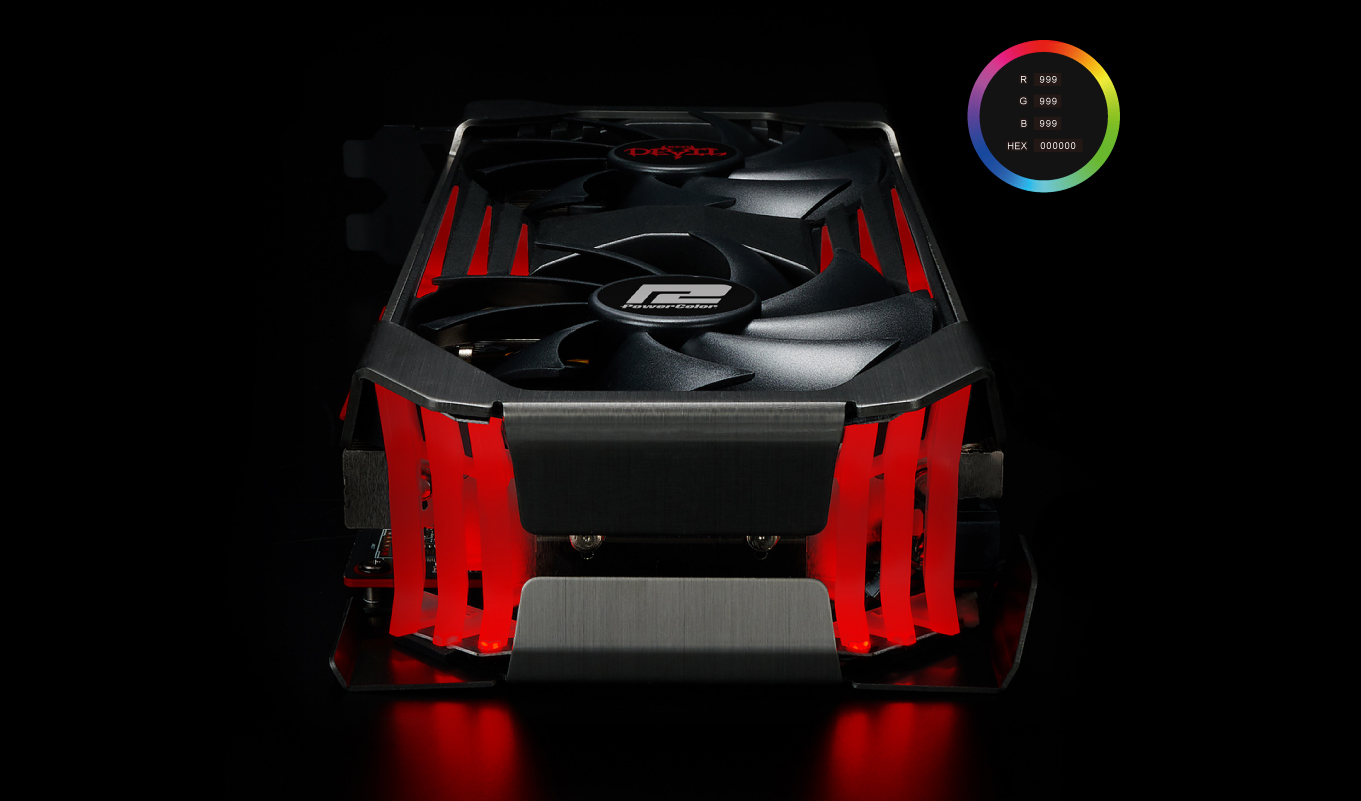

RGB
Choose your unique RGB effect through our Devil Zone RGB software, and light up the exquisite-looking Red Devil card! Additionally, Red Devil RGB can be seamlessly synced with your motherboard simply by connecting the two with an ARGB LED cable, allowing you to immerse yourself in a unique aesthetic atmosphere.
SPECIFICATION
| Graphics Engine | AXRX 6650 XT 8GBD6-3DHE/OC |
| Video Memory | 8GB GDDR6 |
| Stream Processor | 2048 Units |
| Engine Clock(OC) | up to 2523MHz(Game) up to 2694MHz(Boost) |
| Engine Clock(STD/Silent) | up to 2447MHz(Game) up to 2669MHz(Boost) |
| Memory Clock | 17.5 Gbps |
| Memory Interface | 128-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 x8 |
| Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
| Customized Specifications | |
| Product Remark | 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads. |
| Feature Support | |
| OpenGL | Support |
| CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
| AMD Hypermemory | |
| Maximum Resolution | |
| VGA | - |
| DVI | - |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
| Power Specs + Board Dimensions | |
| Board Dimensions | 251.2*132.8*53.6mm 263.6*150.8*53.6(with bracket) |
| Minimum System Power requirement (W) | 650W |
| Extension Power Connector | One 6-Pin and One 8-Pin PCI Express Power connectors |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти PowerColor
Виж всички Видео карти в категорията
Red Devil_AXRX 6650XT 8GBD6-3DHE-OC| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 8 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 128 Bit |
| Интерфейс: | DP HDMI |
