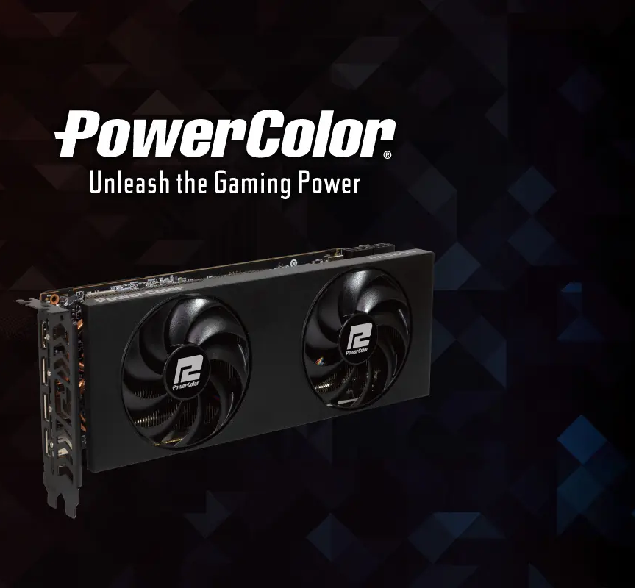

Видео карта AMD Radeon RX 7700 XT, 12GB, PowerColor, PCI-E 4.0, GDDR6, 192-bit, DisplayPort, HDMI

Durability Combined with Exceptional Gaming Performance The PowerColor RX 7700 XT series emphasizes durability, featuring a reinforced backplate and structural design that enhances overall stability and longevity. Its cooling solution uses direct-touch copper technology to provide efficient heat dissipation. The series also includes components with high-quality Japanese dual-ball bearings, designed to ensure long-term stability in performance.

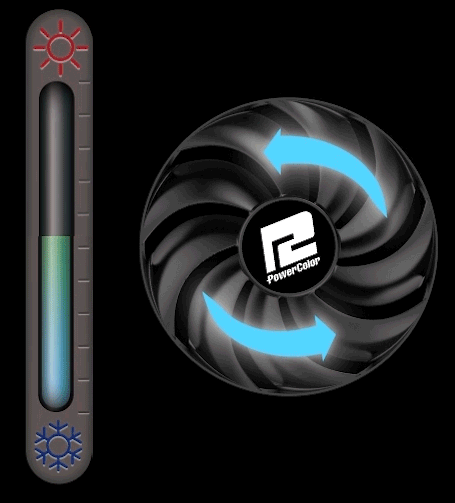

	Intelligent Fan Controller tilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

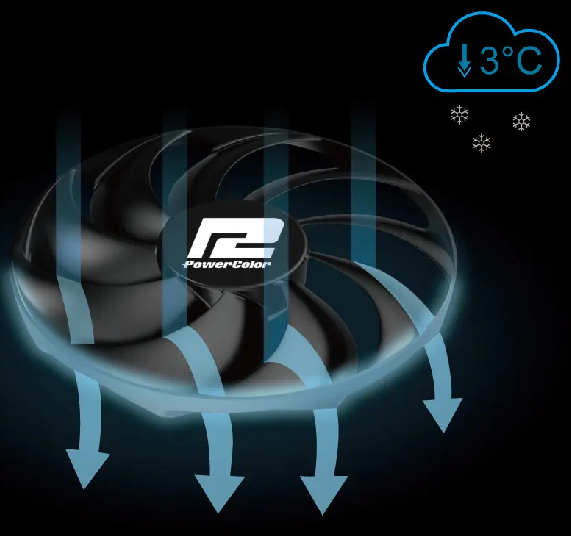

Unprecedented Ring-fan Blade Design The newest 9-blade design of our fans generate better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3℃ compared to previous generations.

Specifications

Graphics Engine

AMD Radeon RX 7700 XT

Stream Processor

3456 Units

Video Memory

12GB GDDR6

Memory Speed

18.0 Gbps

Memory Interface

192-bit

Engine Clock(STD/Silent)

up to 2171MHz(Game)
up to 2544MHz(Boost)

Bus Standard

PCIE 4.0

Standard Display Connectors

1 x HDMI 2.1，3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported)

Feature Support

DirectX Support

12

OpenGL

4.6

AMD Eyefinity Technology

Support

AMD Stream Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort

7680×4320

HDMI

7680×4320

Power Specs + Board Dimensions

Board Dimensions

260mm*109mm*50mm
274mm*125mm*50mm(with bracket)

Slot

2.5

Minimum System Power requirement (W)

750W

Extension Power Connector

Two 8-pin PCI Express Power connectors

Remark

¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
³Recommended power supply for AMD Radeon RX 7700 XT graphics card is minimum 750W or greater power supply with 12V output > 62A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
