PowerColor HellHound OC
Hellhound: A Cool but Powerful Beast
Built based on AMD’s latest RDNA2 architecture, the PowerColor Hellhound Radeon™ RX 6650 XT exhibits a performance upgrade from previously successful RX 6600 XT series, together with the enhanced cooling efficiency to empower gamers to vanquish 1080p gaming. Housing two 100 mm fans, the shroud is clean and sleekly crafted with silver accent, just like a hound stays calm and low-keyed but always ready to release its power.
The Power of Hellhound

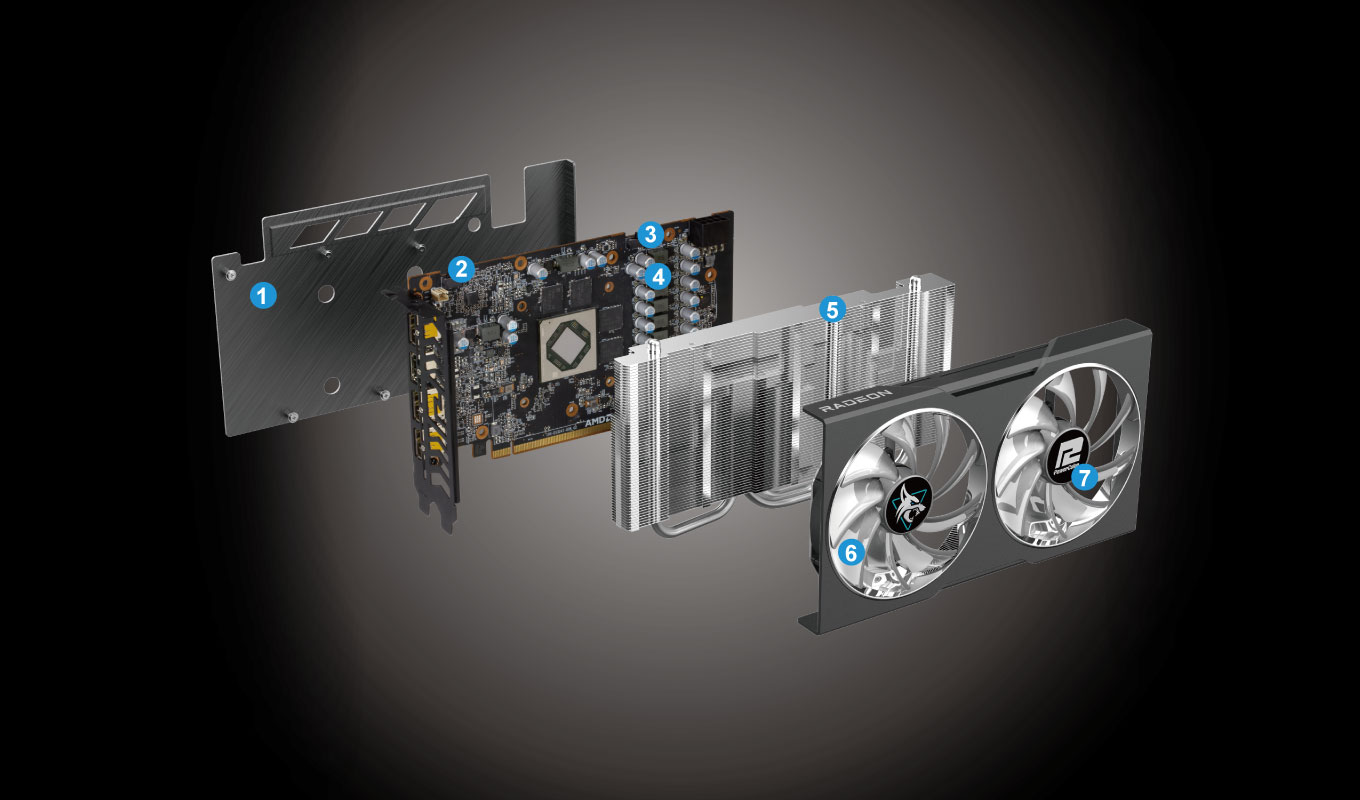

To provide a better thermal solution, PowerColor Hellhound RX 6650 XT is equipped with a dual fan design (2x 100mm), a cooler with 3X6Φ nickel-plated heatpipes, and a smooth nickel-plated copper base that enhances heat dissipation. Besides, it adopts 6+2 phase VRM with DrMOS, high polymer solid capacitors and one 8-pin PCI-E connectors to deliver advanced gaming performance.
|
1.Back Plate |
2.Dual BIOS |
3.LED Switch |
|
4.DrMOS |
5.Cooler |
6.Dual Fan |
|
7.LED Lighting |
|
|

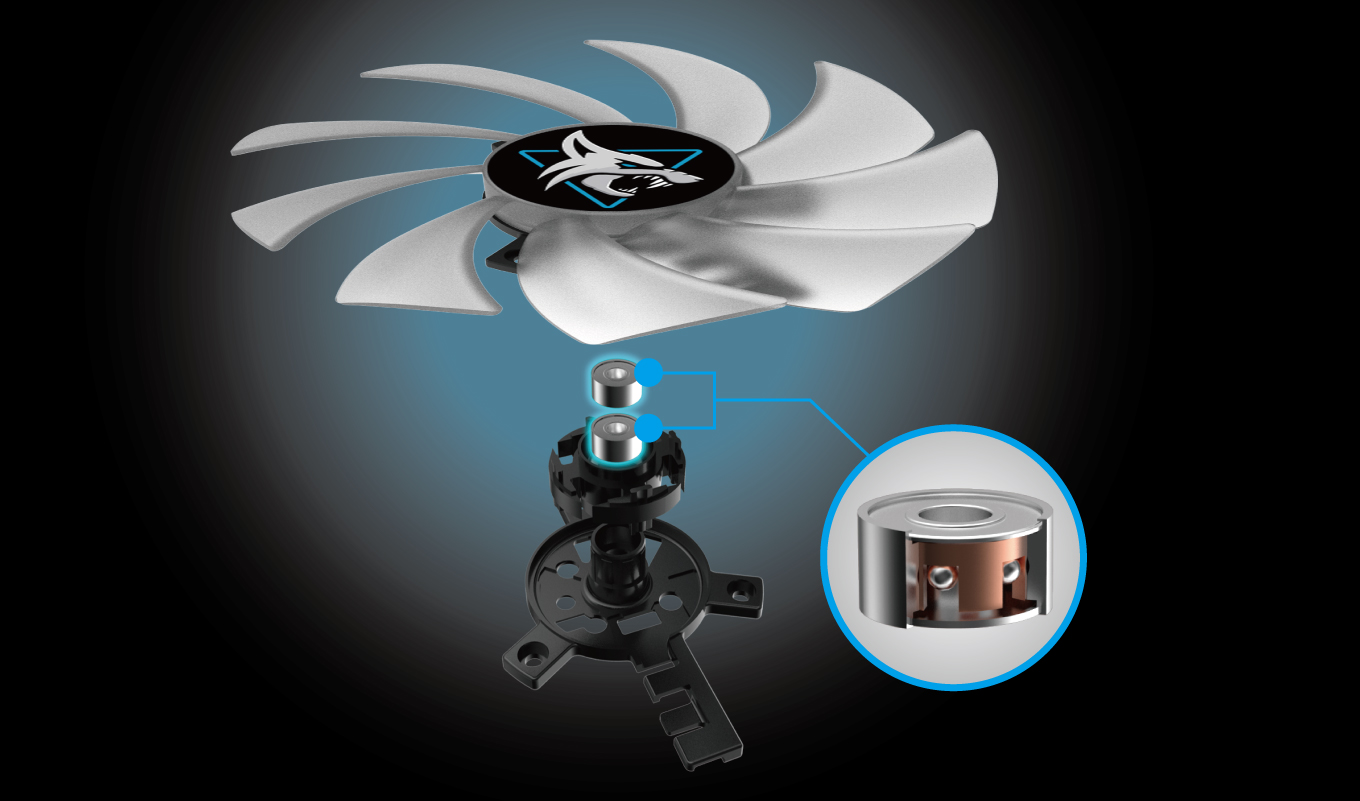

Two-Ball Bearing - 4X greater longevity
The cooling fan utilizes two-ball bearing technology, increasing the longevity of the fans by up to 4 times.
Mute Fan Technology - 0db –Silent gaming
Mute Fan Technology intelligently turns off the fan below 60℃, providing silent gaming during medium and low load while reducing power consumption.
Dual-Fan Cooler, Lower Temperature Better Performance
The Hellhound RX 6650 XT is equipped with 3X6Φ nickel-plated copper heatpipes and an enlarged heatsink surface to provide lower temperature and better performance.

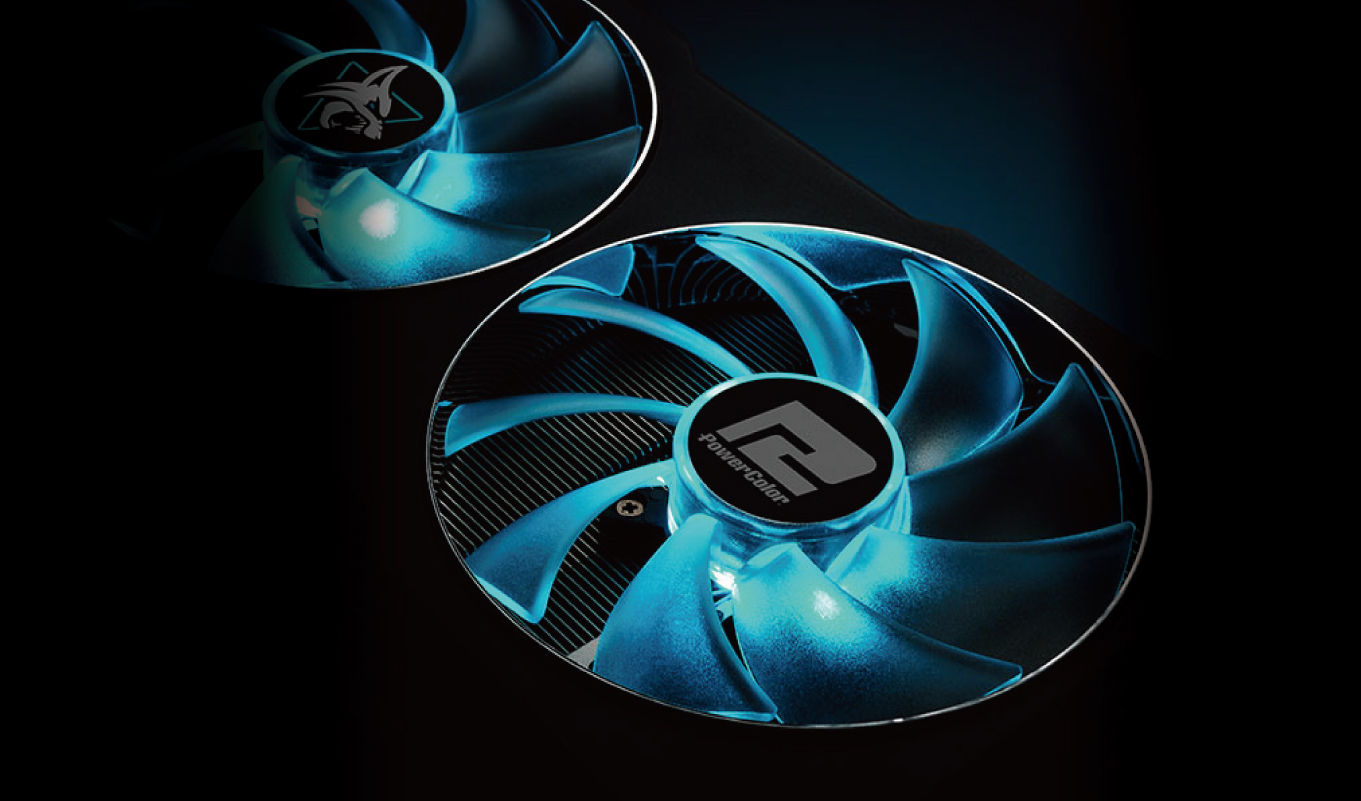

Stunning Hellhound Brighten in the Dark
Hellhound features blue LED lighting on the shroud and backplate to lighten up your case. Want to keep a low profile for a while? Just flip the switch to turn the fan LED off.
SPECIFICATION
| Graphics Engine | AXRX 6650 XT 8GBD6-3DHL/OC |
| Video Memory | 8GB GDDR6 |
| Stream Processor | 2048 Units |
| Engine Clock(OC) | up to 2486MHz(Game) up to 2689MHz(Boost) |
| Engine Clock(STD/Silent) | up to 2410MHz(Game) up to 2635MHz(Boost) |
| Memory Clock | 17.5 Gbps |
| Memory Interface | 128-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 x8 |
| Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
| Customized Specifications | |
| Product Remark | 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads. |
| Feature Support | |
| OpenGL | Support |
| CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
| AMD Hypermemory | |
| Maximum Resolution | |
| VGA | - |
| DVI | - |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
| Power Specs + Board Dimensions | |
| Board Dimensions | 220*132*45mm 232*150*45mm(with bracket) |
| Minimum System Power requirement (W) | 600W |
| Extension Power Connector | One 8-Pin PCI Express Power Connector |
